1093722 GTB2F-P1131
Product Overview

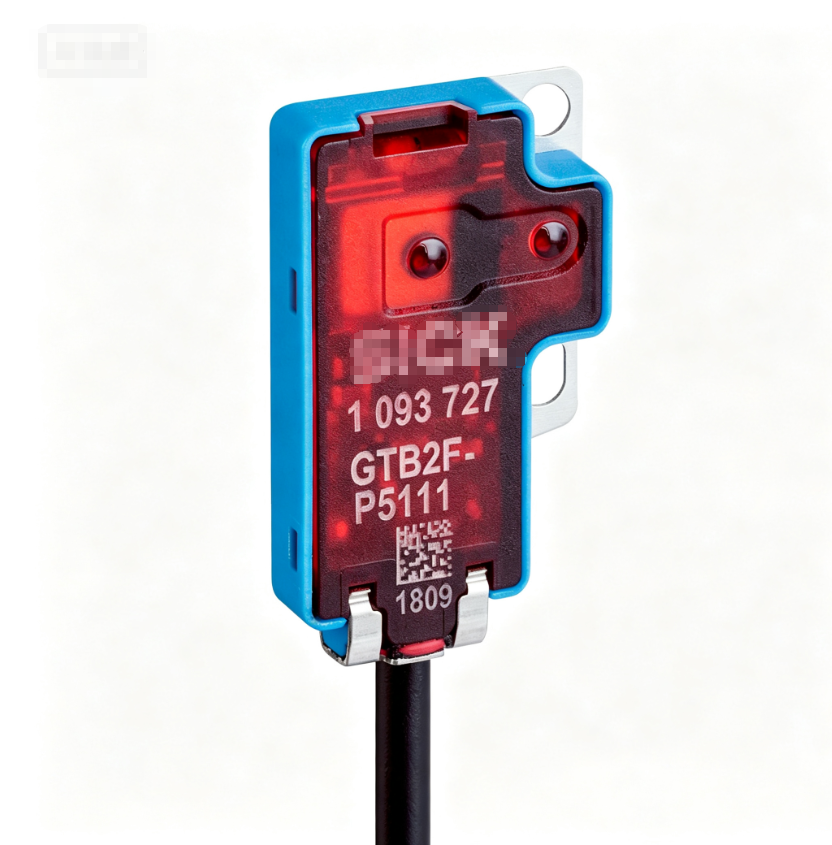

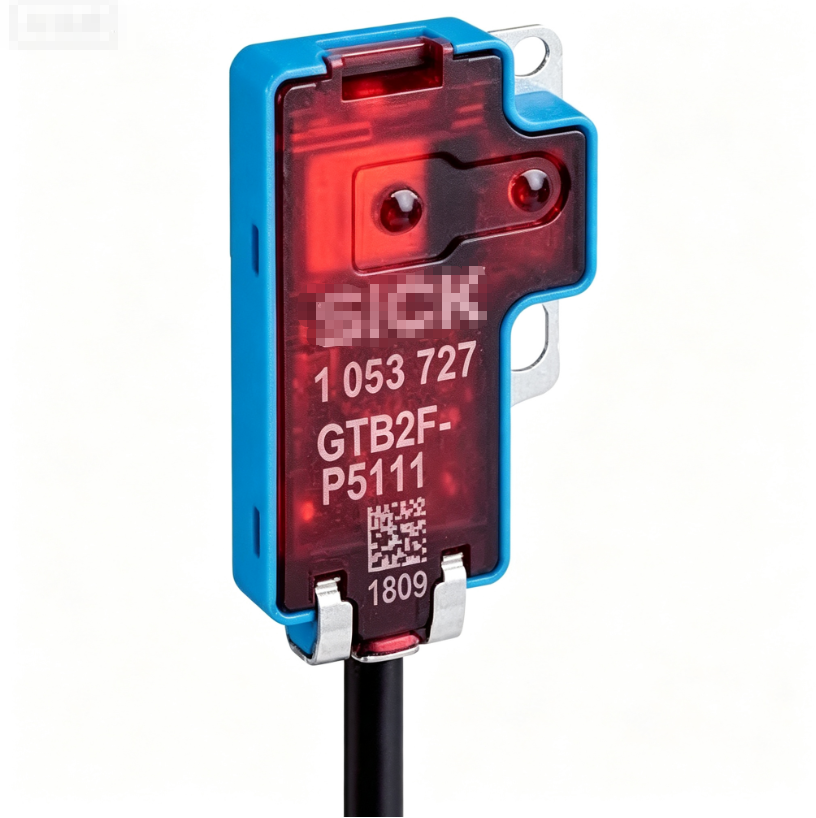

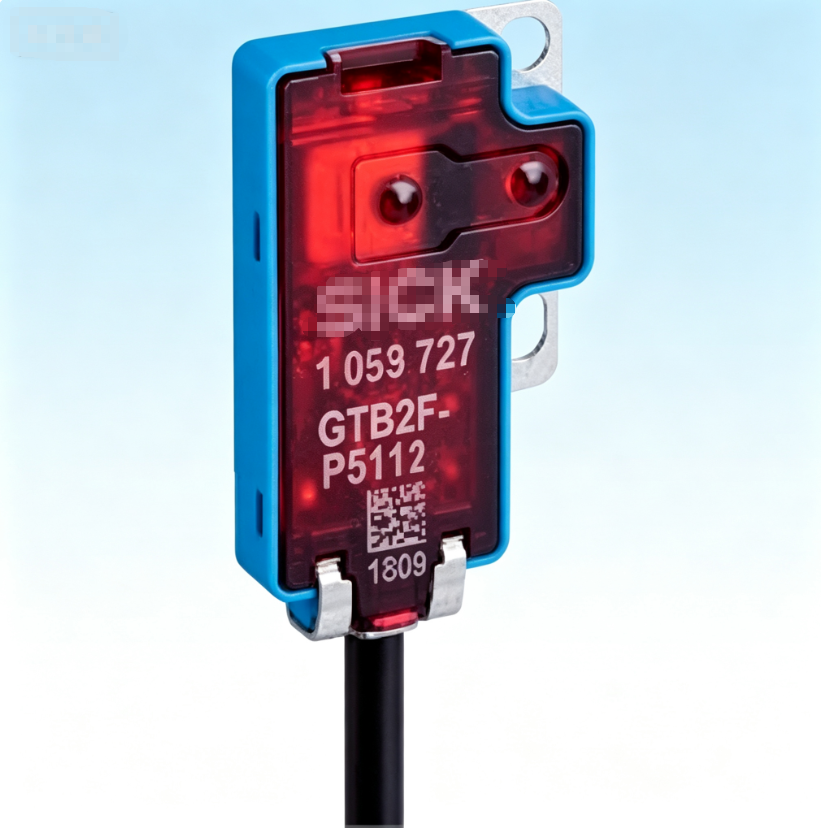

GTB2F-P1131 (Part No.1093722) is a miniature diffuse reflection photoelectric sensor with background suppression from SICK GTB2F series. It adopts PinPoint 660nm visible red LED light source, sensing range 1 mm ~ 30 mm, capable of detecting tiny objects as small as 0.1 mm. It features PNP Light-ON DC 3-wire output, 2m integrated cable, VISTAL® plastic housing and IP67 protection class, operating voltage DC10~30V. It delivers precise detection for micro workpieces, ideal for electronics assembly and packaging automation. Brand new original SICK sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GTB2F-P1131 |
| Part No. | 1093722 |
| Product Type | Photoelectric Sensor |
| Series | G2 / GTB2F |
| Principle | Diffuse reflection photoelectric sensor with background suppression |
| Sensing Range | 1 mm ~ 30 mm (Max limit:35mm) |
| Min Detectable Object | 0.1 mm |
| Light Source | PinPoint LED, 660nm visible red light |
| Output Type | PNP Light-ON, DC 3-wire |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Cable | 2m integrated 3-wire cable |
| Housing Material | VISTAL® Plastic |
| Protection Class | IP67 |
| Switching Frequency | 800 Hz |
| Condition | New Original |
| Application | Tiny object detection, packaging equipment, electronics assembly, conveyor, small workpiece inspection |
| Weight | 0.022 KG |
| Gross Weight | 0.045 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
