CSM-WP111C2P 1122731
Product Overview

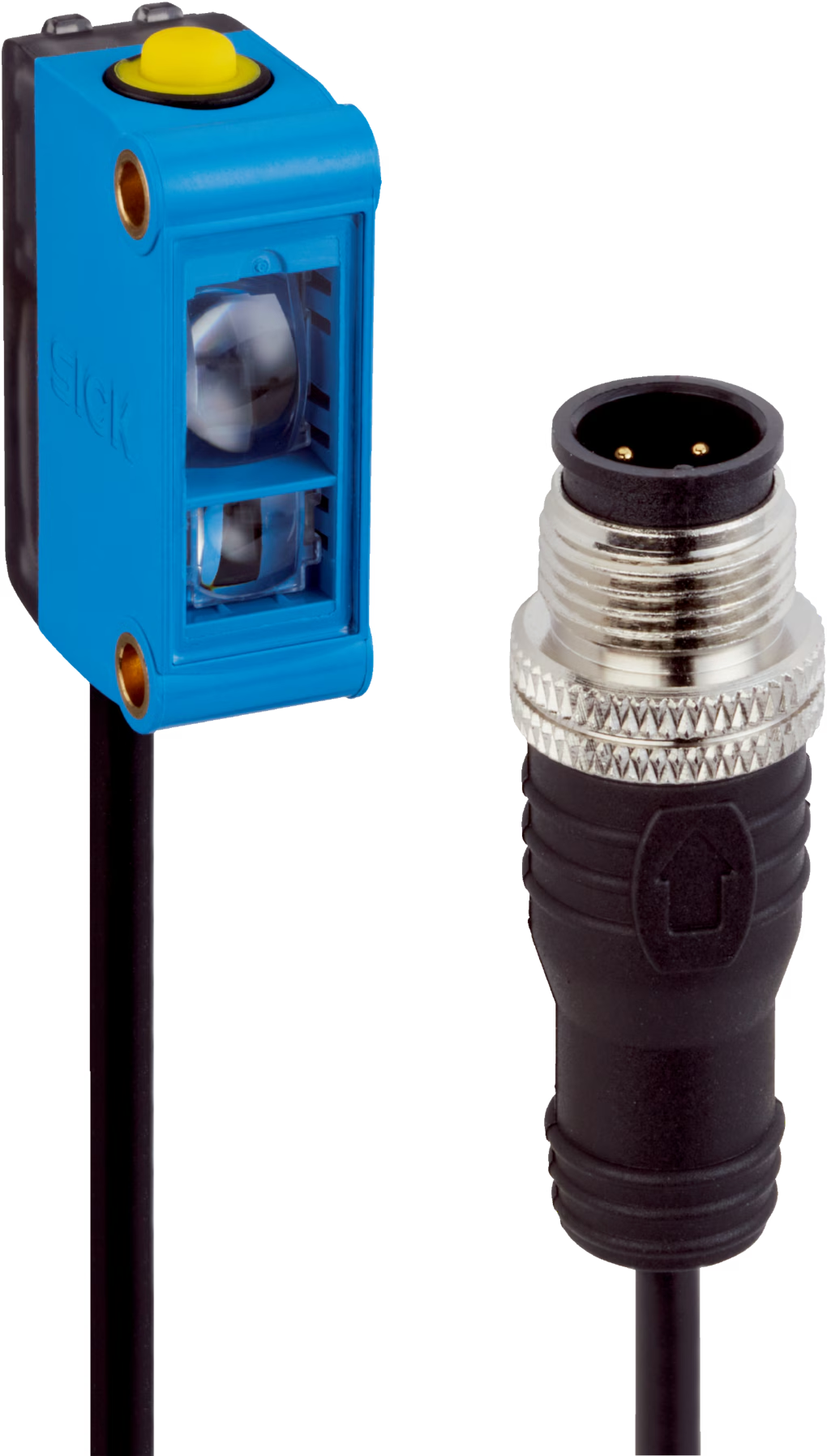

CSM-WP111C2P (1122731) is SICK CSM miniature RGB color sensor without IO-Link. 12.5 mm sensing distance, vertical spot 1.9×9.4 mm, single PNP output. It supports static and dynamic teach-in for single color detection. Compact ABS housing with IP67 protection, M8 4-pin male connector. Suitable for color mark detection and simple color checking in packaging, printing and compact automation equipment. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | CSM-WP111C2P |
| SICK ID | 1122731 |
| Product Series | CSM |
| Product Type | Color Sensor |
| Sensing Distance | 12.5 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | RGB LED |
| Spot Size | 1.9 mm × 9.4 mm, vertical |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 1.7 kHz |
| Supply Voltage | 12–24 V DC |
| Output Type | PNP |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | M8, 4-pin male connector |
| Housing Material | ABS Plastic |
| Teach Mode | Static / Dynamic teach-in |
| Output Channel | 1 color channel |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.02 kg |
| Gross Weight | 0.05 kg |
