DSM-12-270-P-A-B
Product Overview

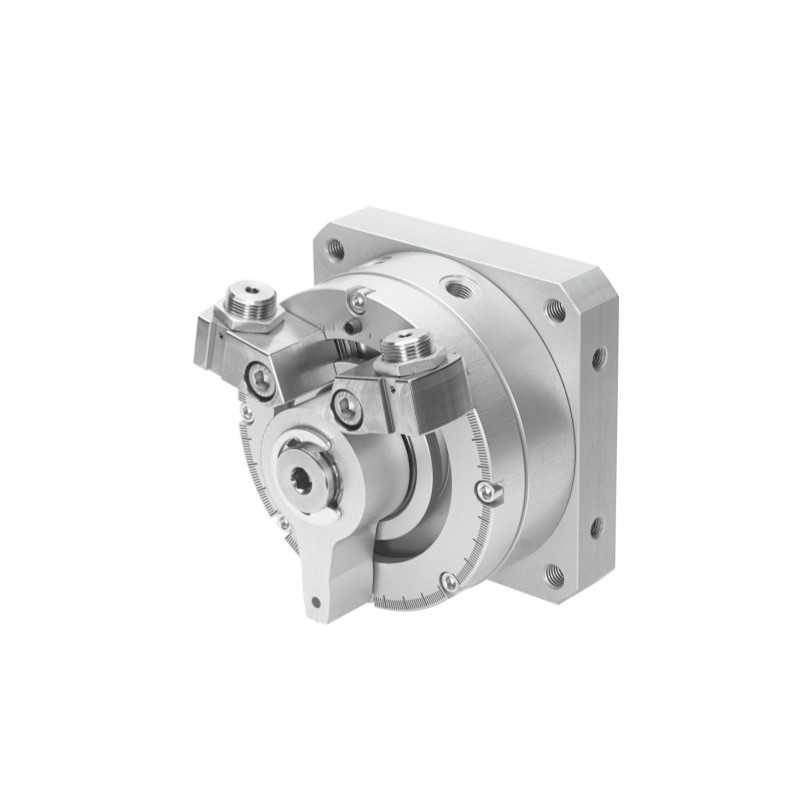

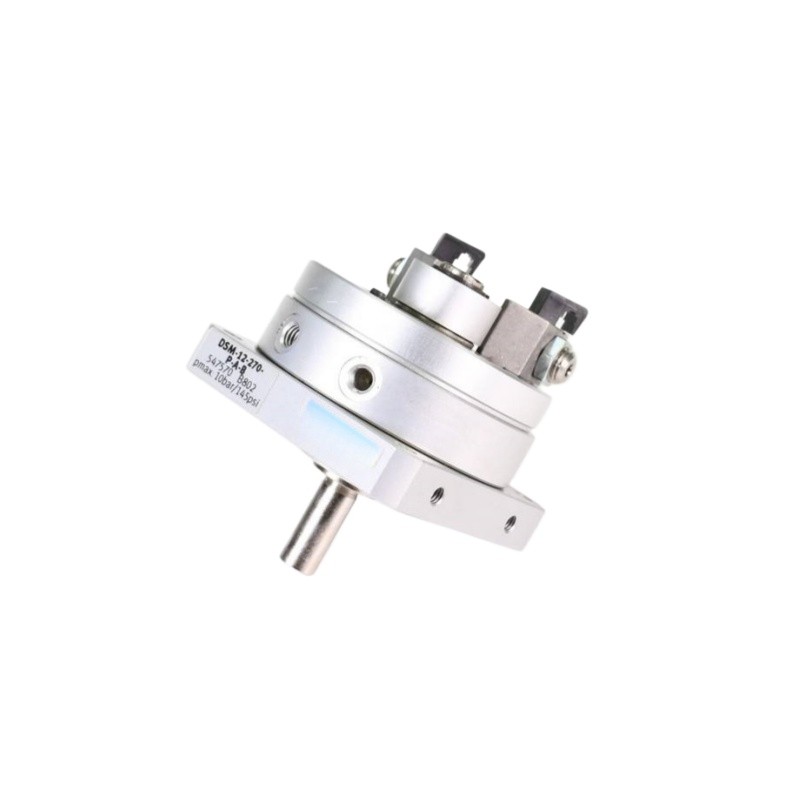

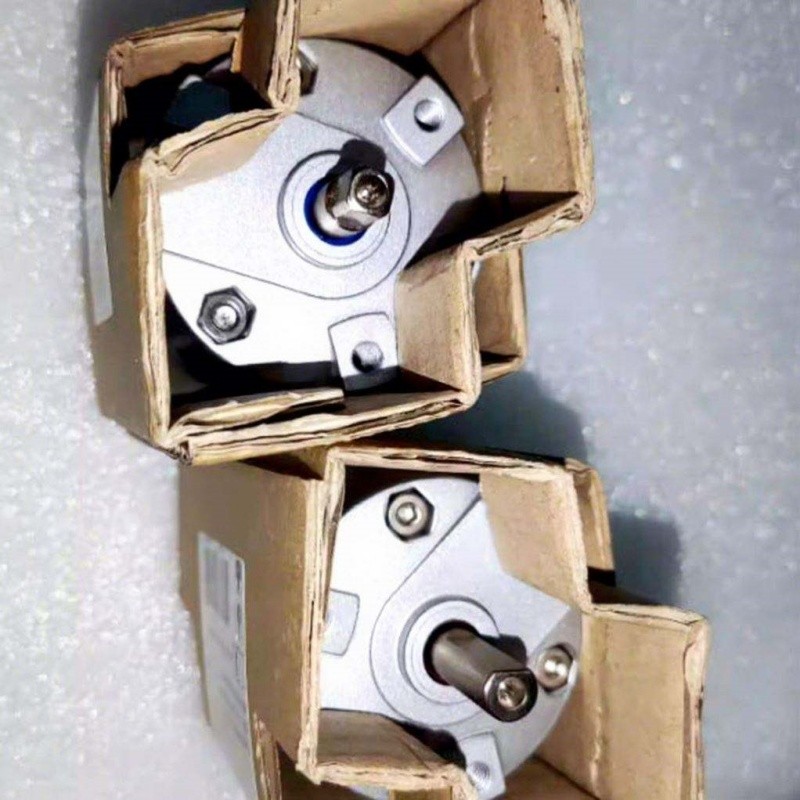

FESTO DSM-12-270-P-A-B semi-rotary drive belongs to DSM vane rotary actuator series. Double acting vane structure, adjustable swivel angle up to 270°, theoretical torque 1.25 Nm at 6 bar. A spigot shaft with B keyway design, M5 pneumatic ports. P type elastic cushion elements with metal fixed stop at both ends. Built-in C-slot for proximity sensor installation to detect rotary position. Aluminium alloy housing, nickel-plated steel shaft, LABS compliant. It can realize rotary flipping and indexing movement, widely used for workpiece rotation in pneumatic automation systems
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSM-12-270-P-A-B |
| Order No. | 547570 |
| Product Series | DSM |
| Product Type | Semi-Rotary Drive / Vane Rotary Actuator |
| Action Type | Double-acting |
| Size | 12 |
| Swivel Angle | 270° (adjustable) |
| Structure | Vane type |
| Pneumatic Port | M5 |
| Cushioning | P: Elastic cushion elements at both ends, metal fixed stop |
| Shaft Version | A: Spigot shaft; B: With keyway |
| Operating Pressure | 2 ~ 10 bar |
| Theoretical Torque @6bar | 1.25 Nm |
| Max Swivel Frequency @6bar | 2 Hz |
| Repeat Accuracy | ≤0.1° |
| Max Permissible Mass Moment of Inertia | 0.015 kg·m² |
| Max Axial Force | 18 N |
| Max Radial Force | 45 N |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing Material | Wrought aluminium alloy |
| Shaft Material | Nickel-plated steel |
| Seal Material | TPE-U(PU) |
| Feature | C-slot for proximity sensor mounting, LABS compliant |
| Mounting | Internal thread mounting, any mounting position |
| Corrosion Resistance Class | CRC 0 |
| Weight | 285 g |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
