QST-8
Product Overview

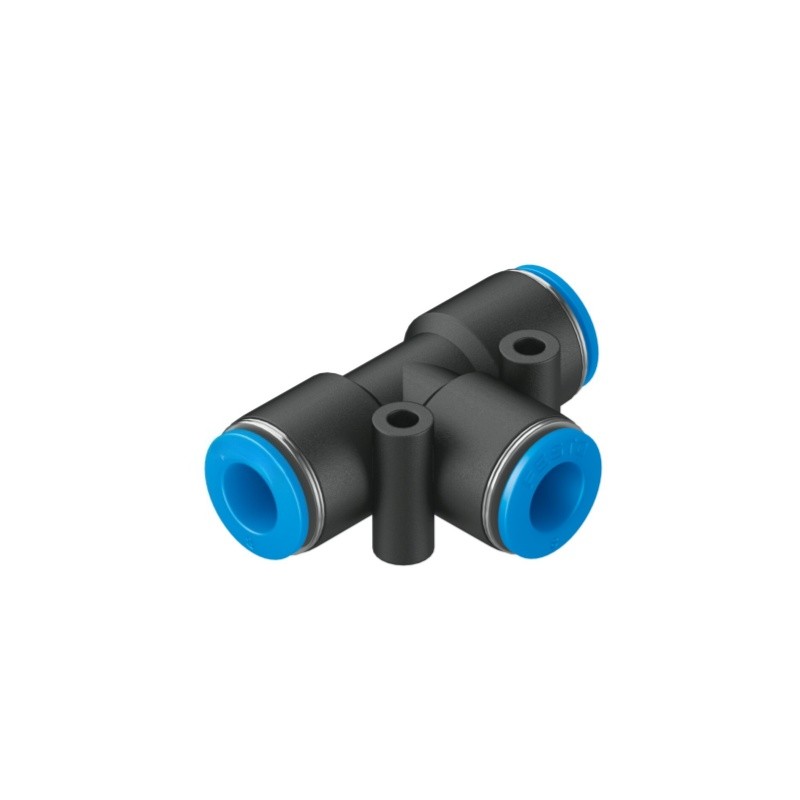

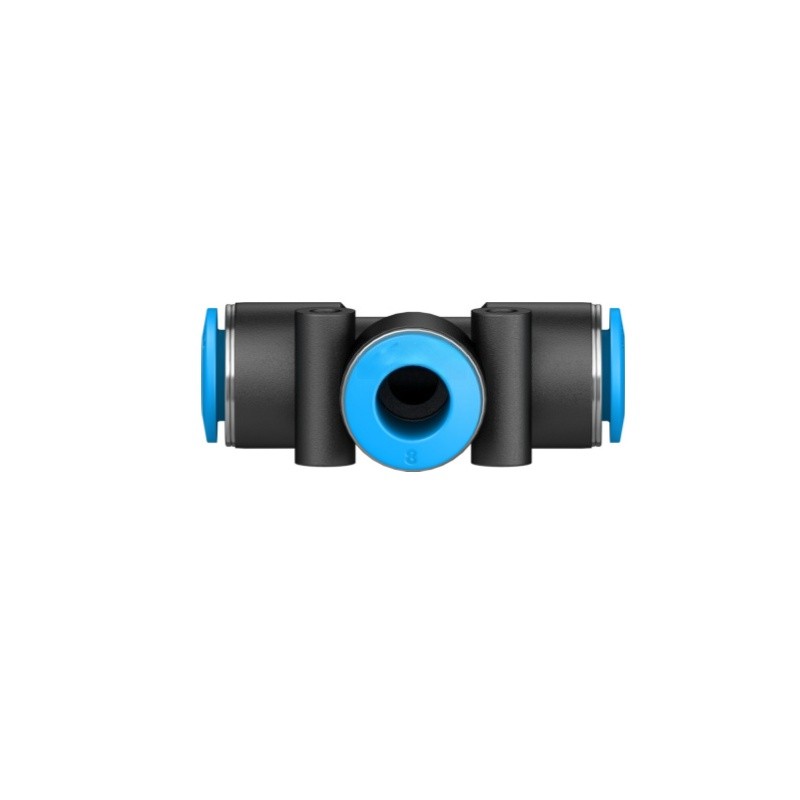

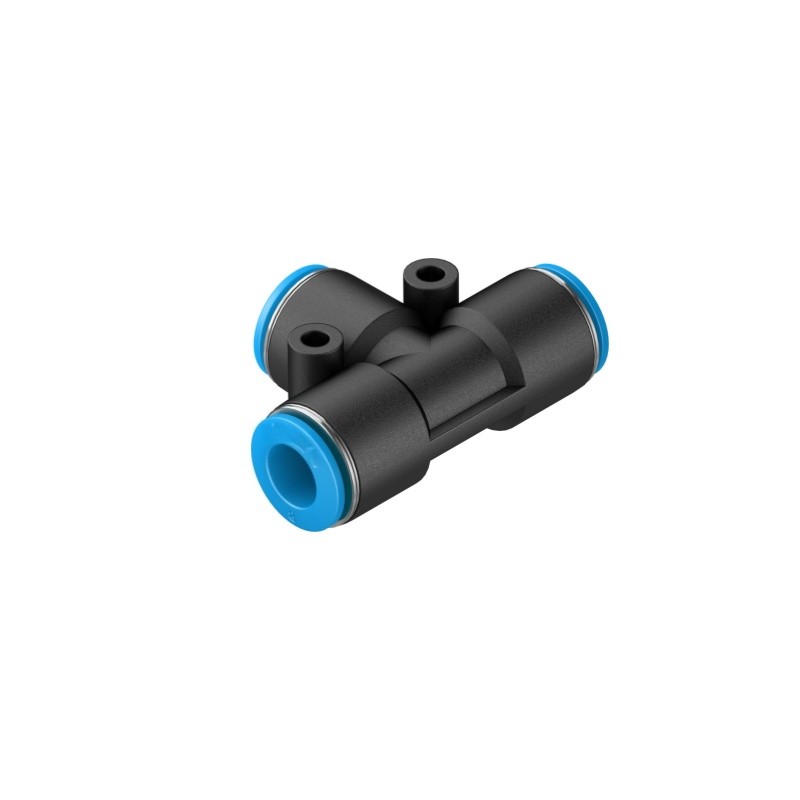

QST-8 (Part No.153130) is Festo QS series T-type push-in pneumatic fitting. All three ports are for 8mm OD pneumatic tube. PBT housing, POM release ring, NBR seal and high-alloy stainless steel clamping element. Working pressure -0.95~14 bar, ambient temperature -10~80℃. Push-pull quick connect design, tool-free assembly and disassembly. Compact structure, reliable sealing, RoHS compliant. Widely used for branch connection in compressed air pipelines of industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QST-8 |
| MPN | 153130 |
| Product Type | Pneumatic Push-in Fitting |
| Series | QS Series |
| Structure | T-type Push-in Connector |
| Tube Size | 8mm OD Tube (3 ports all for 8mm tubing) |
| Nominal Diameter | 6.2 mm |
| Working Medium | Compressed air |
| Working Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ 80 ℃ |
| Housing Material | PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Element | High-alloy Stainless Steel |
| Color | Blue Release Ring |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connect, RoHS compliant |
| Application | Pneumatic Automation System |
