QS-6-4
Product Overview

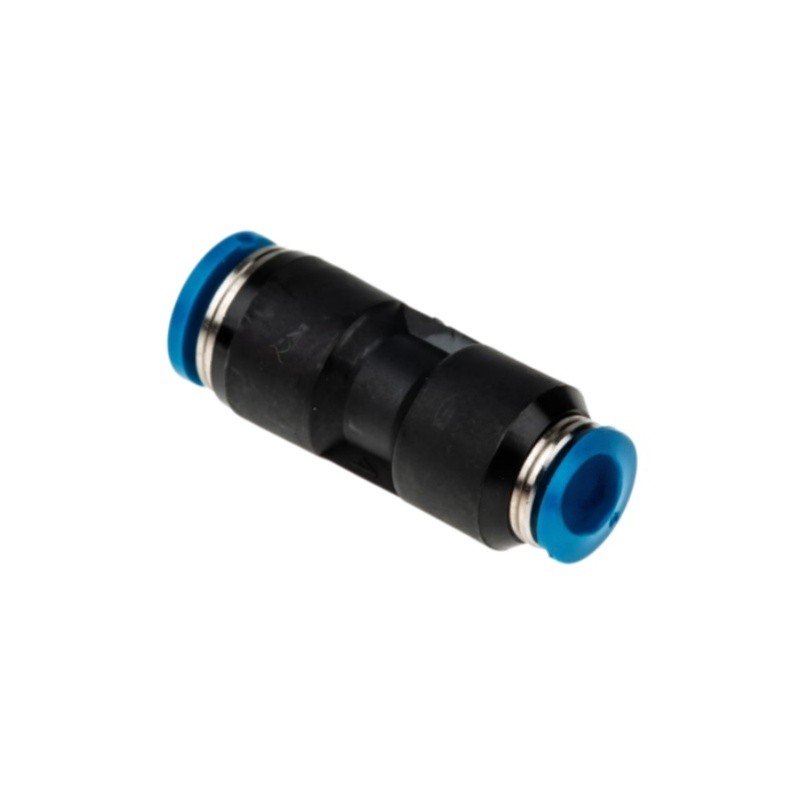

QS-6-4 (Part No.153037) is Festo QS series straight reducing push-in pneumatic fitting. It is designed for tube transition, connecting 6mm OD tube to 4mm OD tube. Adopts high-strength PBT housing, POM release ring, NBR seal and high-alloy stainless steel clamping element. Supports working pressure from -0.95 to 14 bar and temperature range of -10~80℃. Tool-free push-pull quick connection ensures fast installation and removal. Features compact size, stable air tightness and RoHS compliance. Ideal for diameter conversion in industrial automation compressed air pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QS-6-4 |
| MPN | 153037 |
| Product Type | Pneumatic Push-in Fitting |
| Series | QS Series |
| Structure | Straight Reducer Push-in Connector |
| Tube Size | Port1:6mm OD Tube, Port2:4mm OD Tube |
| Nominal Diameter | 2.8 mm |
| Working Medium | Compressed air |
| Working Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ 80 ℃ |
| Housing Material | PBT |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Element | High-alloy Stainless Steel |
| Color | Blue Release Ring |
| Weight | 6.50 g |

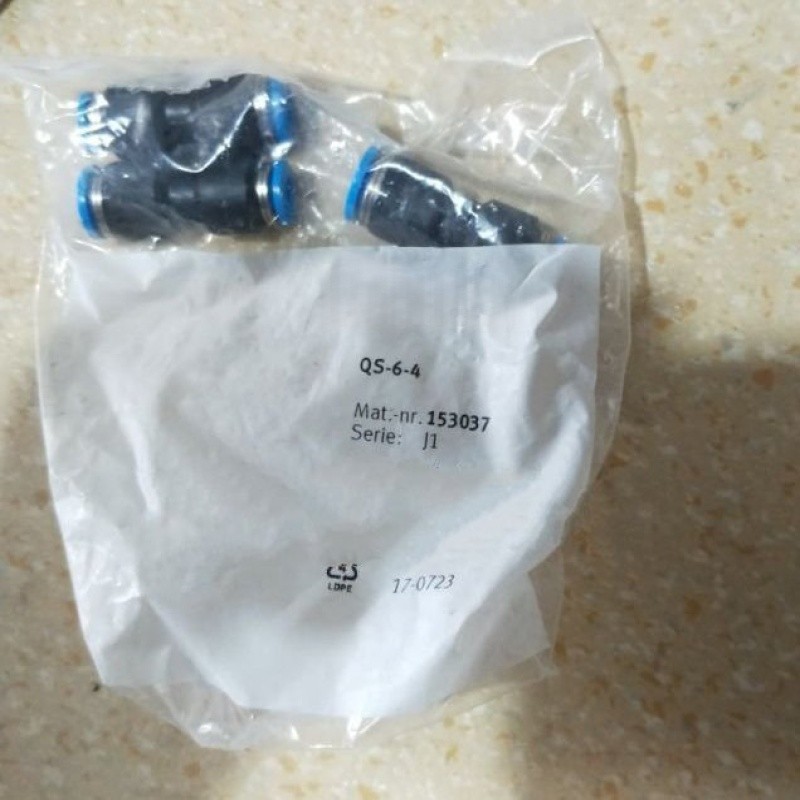

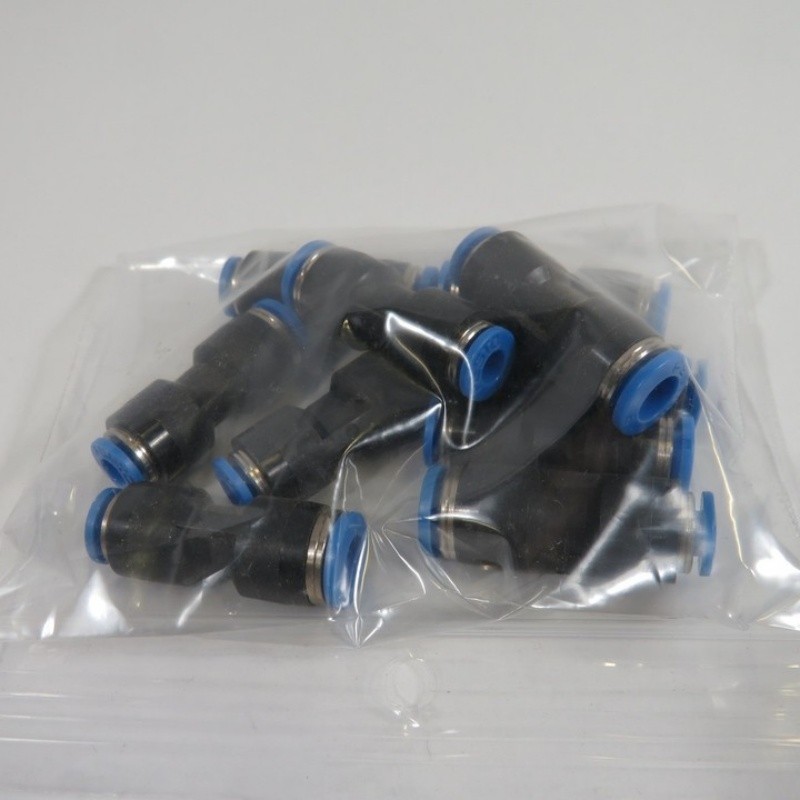

| Package | 10 pcs/pack |
| Feature | Push-pull quick connect, RoHS compliant, reducing straight fitting |
| Application | Pneumatic Automation System |
| Corrosion Resistance Class | CRC 1 |
