QSL-1/4-6
Product Overview

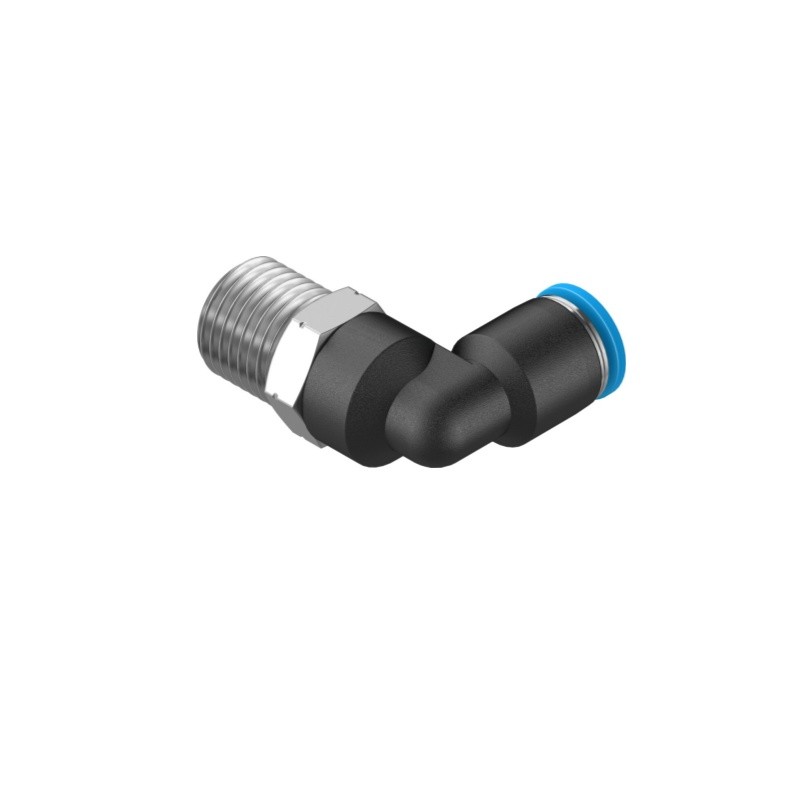

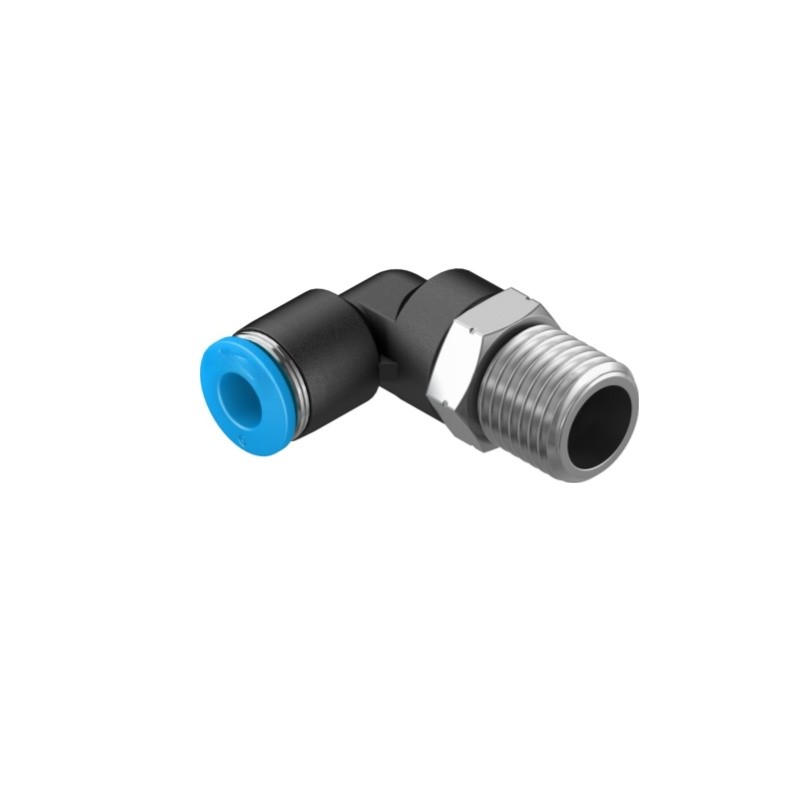

QSL-1/4-6, Part No.153103, belongs to Festo QS series elbow push-in fitting. It is a 90-degree L-shaped connector with G1/4 parallel male thread on one end and 6mm tube port on the other. The elbow joint can rotate freely after threaded installation to adjust tube orientation. Tubes can be inserted and removed rapidly without tools. Widely used to change pipeline direction when connecting cylinders, valves and pneumatic components in automation circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-1/4-6 |
| Part No. | 153103 |
| Type | Elbow push-in fitting, male thread |
| Thread | G1/4 male parallel thread |
| Tube OD | 6 mm |
| Nominal bore | 4 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 10.00 g |

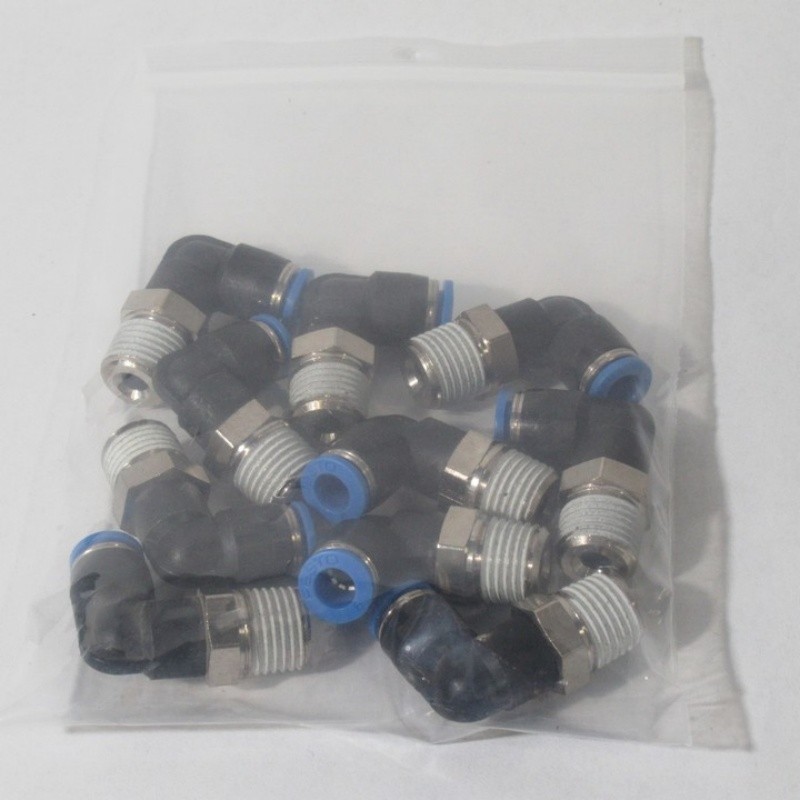

| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, 90° elbow design, rotatable joint, tool-free assembly |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
