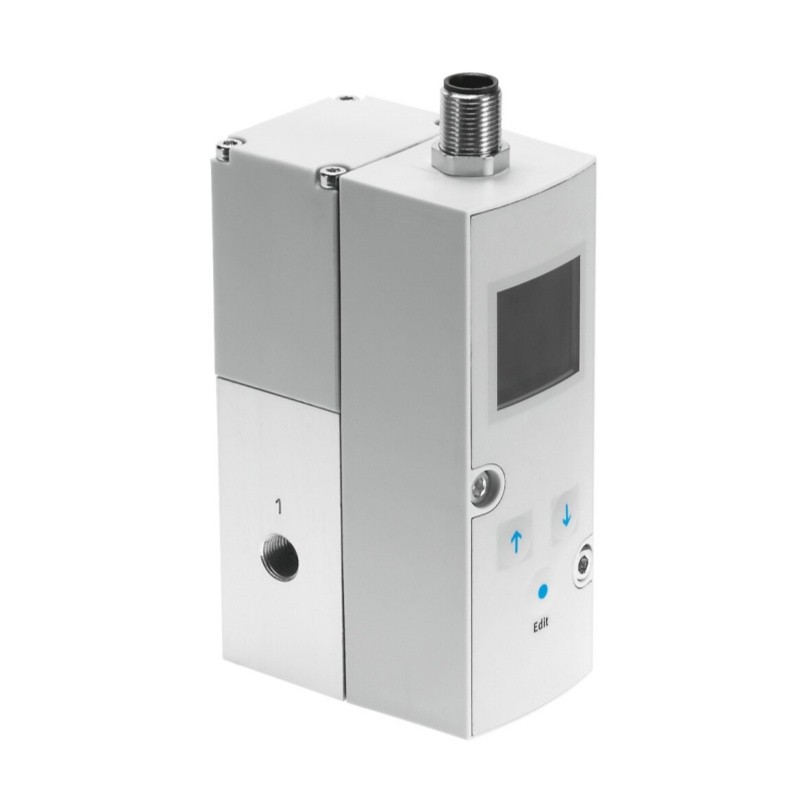

VPPM-6L-L-1-G18-0L6H-A4P-S1C1
Product Overview
VPPM-6L-L-1-G18-0L6H-A4P-S1C1, Part No.575128, belongs to Festo VPPM series closed-loop proportional pressure regulator. It is a 3-way proportional valve with integrated pressure sensor, achieving precise continuous pressure control by closed-loop feedback. A4P accepts 0–10V analog command signal, S1 outputs 0–10V actual pressure feedback, C1 supports IO-Link digital communication for parameter configuration and data reading. Built-in backlit LCD screen for real-time pressure display and local parameter setting. 3-way function can both supply and exhaust air to quickly stabilize target pressure, widely used for precise pressure control such as gripping force control, press force regulation and vacuum compensation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VPPM-6L-L-1-G18-0L6H-A4P-S1C1 |
| Part No. | 575128 |
| Type | 3-way proportional pressure regulator |
| Port size | G1/8 (Port1/2/3) |
| Pressure adjustment range | 0.06 ~ 6 bar |
| Nominal flow rate | 900 l/min |
| Control signal | A4P: 0–10V analog setpoint signal |
| Feedback signal | S1: analog pressure feedback 0–10V; C1: IO-Link |
| Accuracy | Total accuracy ±1.25% FS |
| Repeat accuracy | ±0.5% FS |
| Supply voltage | DC 24V |
| Electrical connector | M12 8-pin plug |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | 0 ~ 50 ℃ |
| Protection class | IP65 |
| Material | Housing: Anodised wrought aluminium alloy, Seal: FKM |
| Weight | 400.00 g |
| Feature | Backlit LCD display, closed-loop pressure control, 3-way function (supply & exhaust), IO-Link + analog dual interface, compact design, rail mounting optional |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Certificates | CE, UL, RCM, KC |
