ADN-50-200-A-P-A
Product Overview

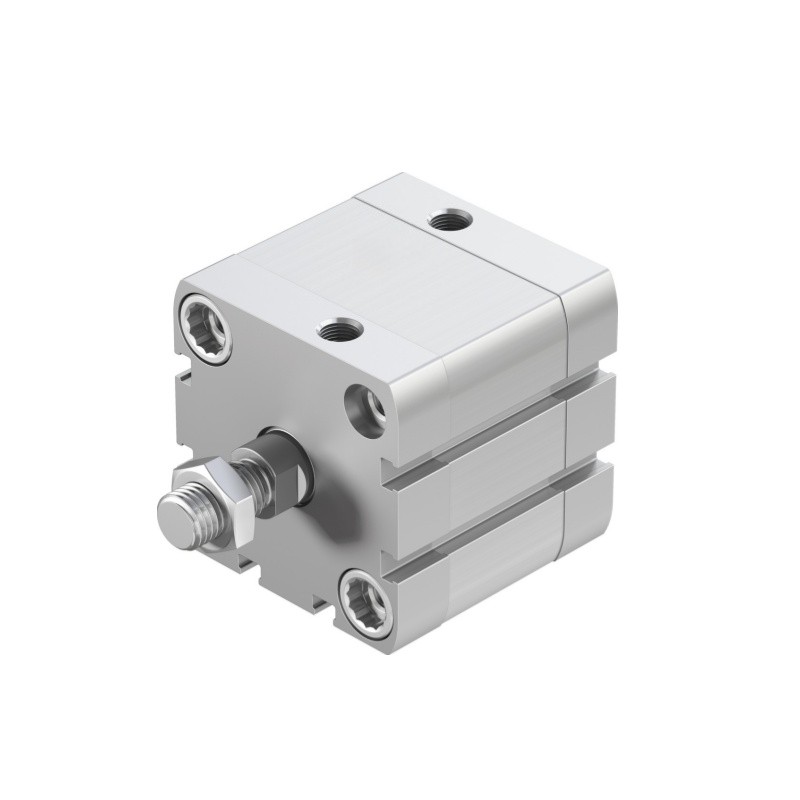

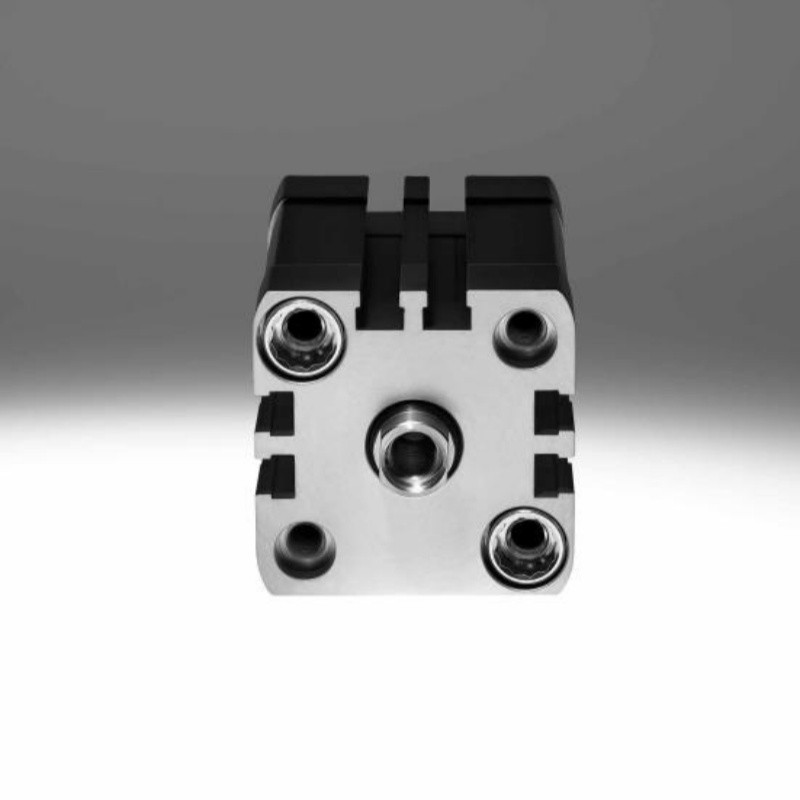

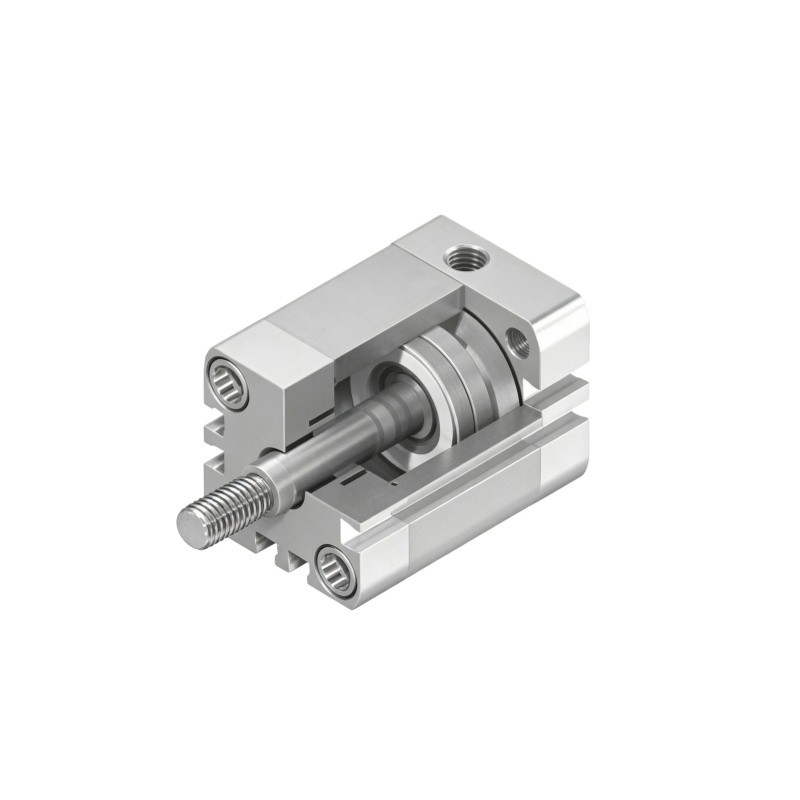

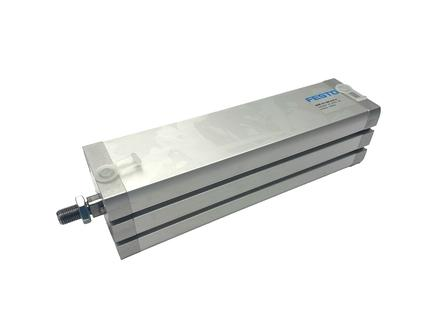

ADN-50-200-A-P-A (Part No.536309) is a high-performance double-acting compact pneumatic cylinder from Festo ADN series, manufactured in accordance with ISO 21287 international standard. Featuring 50mm bore size and 200mm long stroke, this cylinder is designed with external M12×1.25 piston rod thread and elastic end cushioning on both sides. It adopts a lightweight and compact integrated structure, effectively saving installation space while maintaining stable output power. Equipped with sensor mounting grooves for position detection, it supports automated signal feedback. With LABS(PWIS) compliance and excellent corrosion resistance, it is widely applicable to various precision industrial pneumatic automation scenarios.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADN-50-200-A-P-A |
| Part No. | 536309 |
| Product Type | Compact Pneumatic Cylinder |
| Series | ADN |
| Standard | ISO 21287 |
| Action Type | Double-acting |
| Bore | 50 mm |
| Stroke | 200 mm |
| Piston Rod Thread | M12×1.25 External thread |
| Cushioning | Elastic cushioning rings at both ends |
| Pneumatic Connection | G1/8 |
| Operating Pressure | 0.06 ~ 1.0 MPa |
| Operating Temperature | -20 ~ 80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Barrel Material | Smooth-anodized wrought aluminium alloy |
| Cover Material | Anodized wrought aluminium alloy |
| Piston Rod Material | High-alloy steel |
| Seal Material | PU |
| Net Weight | 1.85 kg |
| Corrosion Resistance Class | CRC 2 |
| Feature | LABS(PWIS) compliant, position sensing available for proximity sensor |
| Application | Automation equipment, clamping, pushing, lifting, industrial automation |
| Certificate | RoHS Compliant |
