HE-2-QS-10
Product Overview

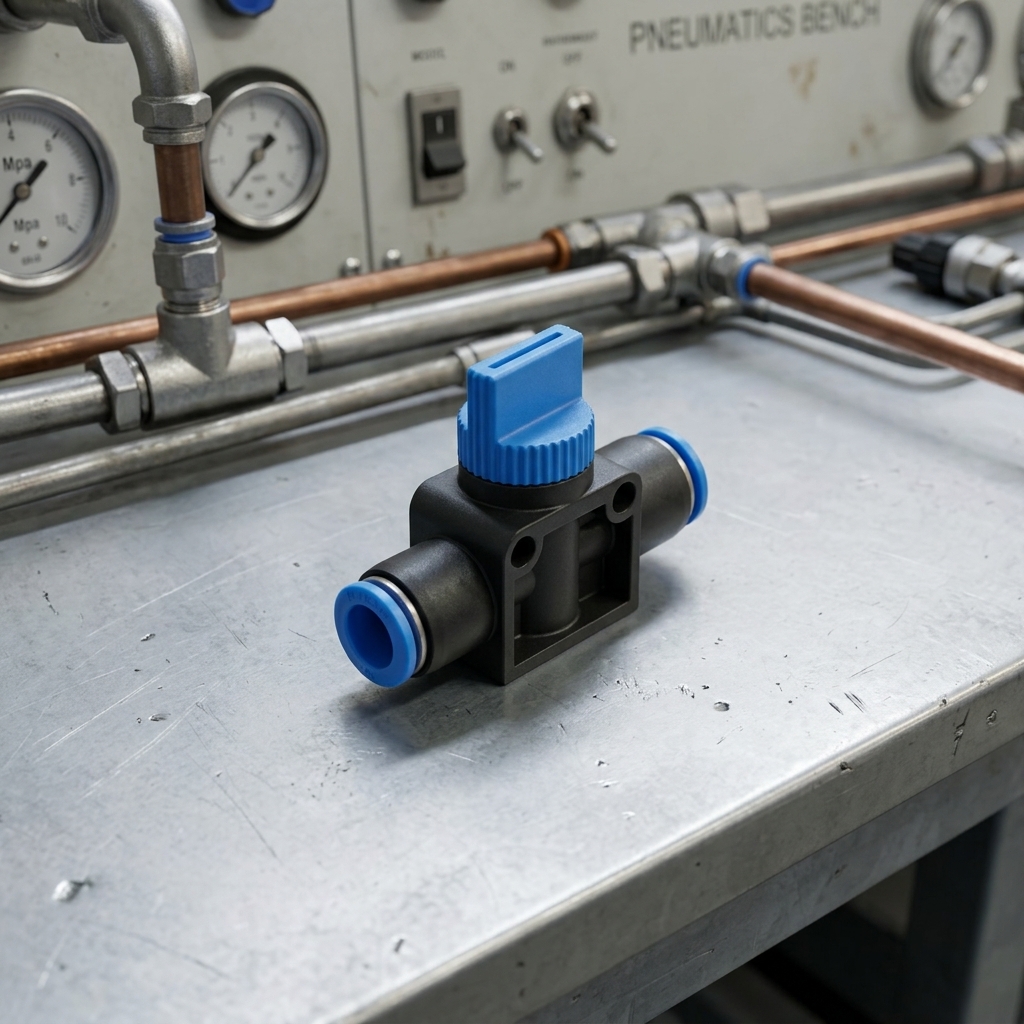

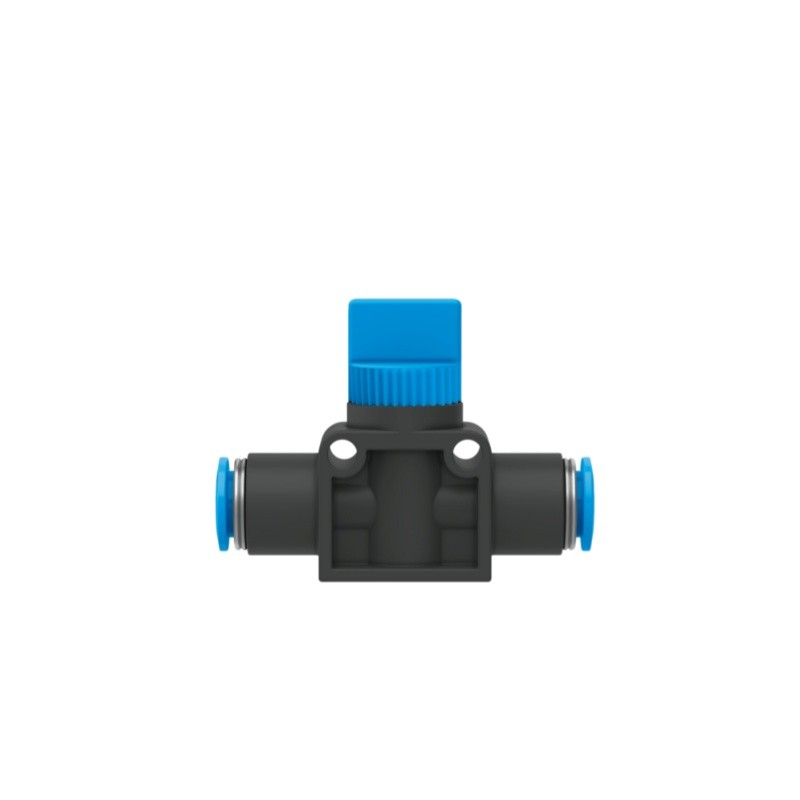

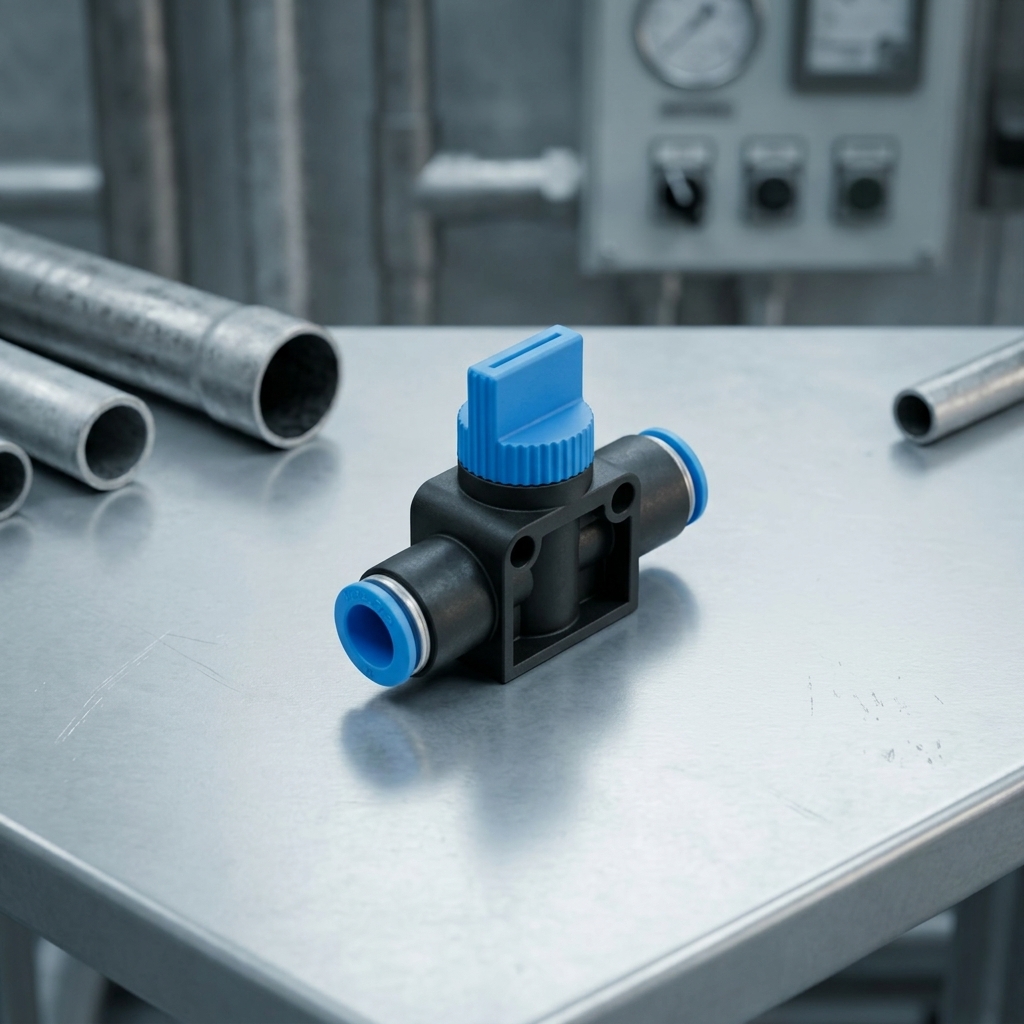

HE-2-QS-10 (Part No.153469) is a 2/2-way bistable manual shut-off valve from Festo HE series. It adopts dual QS-10 push-in ports for 10mm OD pneumatic tube, supports reversible air flow. The valve features high nominal flow rate of 752.4 l/min, inline installation design for direct insertion into pneumatic pipelines. Reinforced PBT housing with NBR seal, LABS(PWIS) compliant. It can manually cut off or connect compressed air circuit, convenient for equipment maintenance and on-site air flow control, widely used in industrial pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | HE-2-QS-10 |
| Part No. | 153469 |
| Product Type | Pneumatic Manual Shut-off Valve |
| Series | HE |
| Valve Function | 2/2-way bistable shut-off valve |
| Connection | Both ports QS-10 push-in for 10mm OD pneumatic tube |
| Nominal Flow | 752.4 l/min |
| Nominal Width | 4.7 mm |
| Operating Pressure | -0.095 ~ 1.0 MPa |
| Operating Temperature | 0 ~ 60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing Material | Reinforced PBT |
| Seal Material | NBR |
| Net Weight | 0.041 kg |
| Corrosion Resistance Class | CRC 2 |
| Feature | LABS(PWIS) compliant, reversible flow, manual operation |
| Application | Pneumatic pipeline on/off control, industrial automation |
| Certificate | RoHS Compliant, ISO 14644-1 Class 4 Cleanroom available |
