ATV930D11N4

ATV930D11N4
Attribute Name	Value
Brand	Schneider Electric
Model	ATV930D11N4
Series	Altivar Process ATV930
Type	Variable Speed Drive / VFD
Motor Power	11kW Normal duty,7.5kW Heavy duty
Rated Voltage	380~480V 3Phase
Output Current	23.5A(Normal),16.5A(Heavy)
IP Rating	IP21
Built-in Brake Unit	Yes
Cooling	Forced convection
Communication	Modbus TCP,Modbus RTU,EtherNet/IP
Condition	New Original
Net Weight	7.70kg
Gross Weight	9.20kg

Product Details

Product Tags

Product Overview

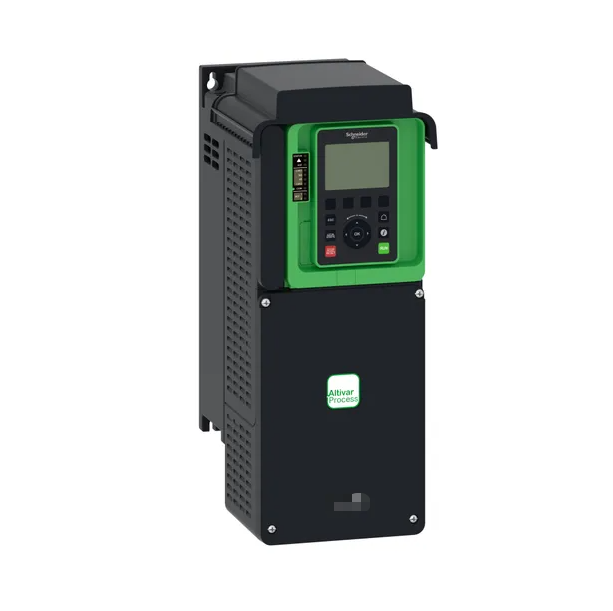

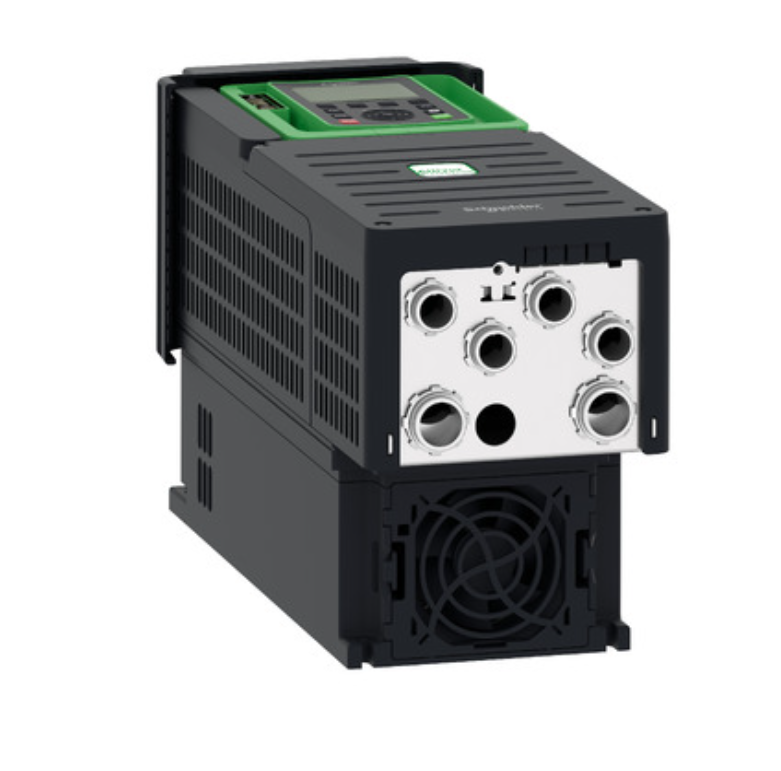

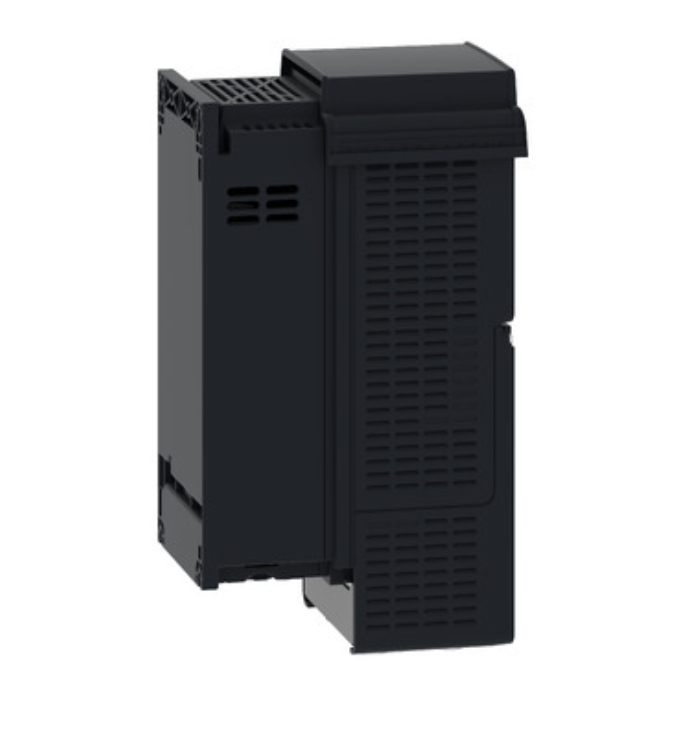

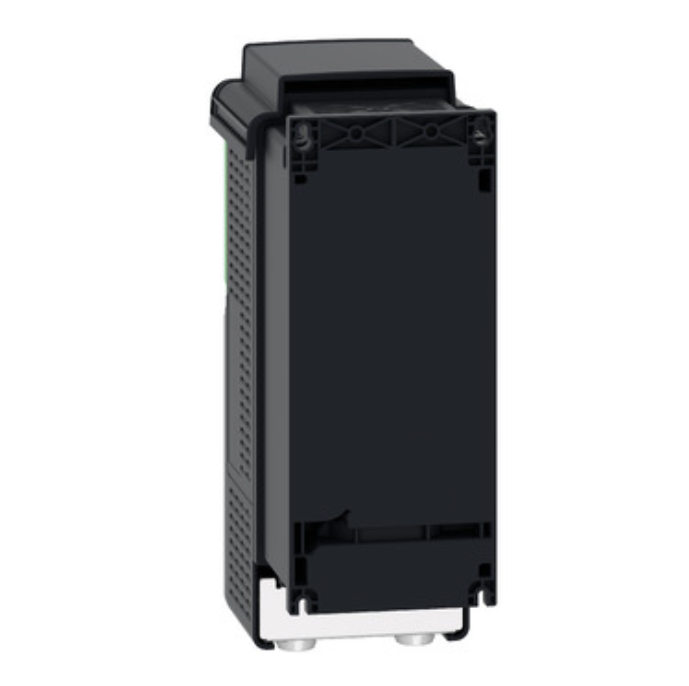

Schneider ATV930D11N4 belongs to Altivar Process ATV930 series, high-performance industrial variable speed drive for process industry. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors. It adopts IP21 protection grade with integrated braking chopper, equipped with STO and SS1 safety functions. Built-in energy monitoring, asset monitoring, drift detection, Stop&Go energy saving and four quadrant operation. Widely used for pumps, fans, compressors, conveyors and other process control applications.

Attribute NameValue
BrandSchneider Electric
ModelATV930D11N4
SeriesAltivar Process ATV930
TypeVariable Speed Drive / VFD
Motor Power11kW Normal duty,7.5kW Heavy duty
Rated Voltage380~480V 3Phase
Output Current23.5A(Normal),16.5A(Heavy)
IP RatingIP21
Built-in Brake UnitYes
CoolingForced convection
CommunicationModbus TCP,Modbus RTU,EtherNet/IP
ConditionNew Original
Net Weight7.70kg
Gross Weight9.20kg
