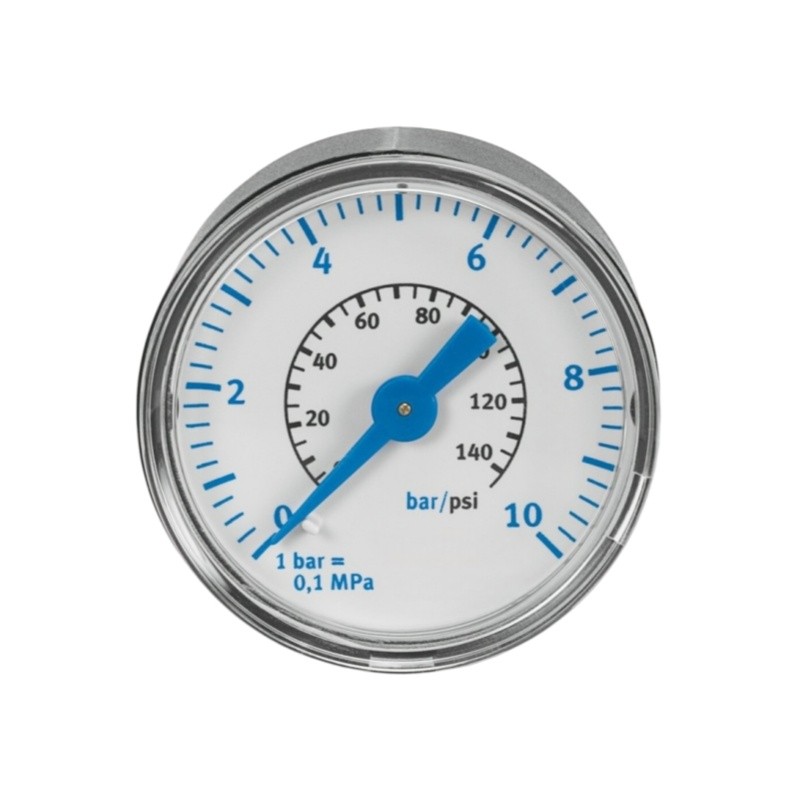

MA-23-10-R1/8
Product Overview
New Original FESTO MA-23-10-R1/8 belongs to MA series compact pneumatic pressure gauge. Dial diameter 23mm, measuring range 0~10 bar, R1/8 internal thread connection. Accuracy class 2.5, plastic housing with transparent glass window for clear pressure reading. Designed for direct assembly on filter regulator and air service units. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely used to monitor system pressure of pneumatic circuit, valve terminal and air preparation unit.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | MA-23-10-R1/8 |
| Order No. | 547856 |
| Product Series | MA |
| Product Type | Pneumatic pressure gauge |
| Dial size | 23 mm |
| Measuring range | 0 ~10 bar |
| Thread | R1/8 internal thread |
| Accuracy class | Class 2.5 |
| Operating temperature | -20 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | Plastic housing, glass dial window |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；Compact size, direct mounting on filter regulator, clear pressure reading |
| Mounting | Direct threaded installation |
| Corrosion Resistance Class | CRC2 |
| Weight | 12 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
