MSEB-3-24V DC
Product Overview
Item No: 364665 Model: MSEB-3-24V DC Brand: Festo Type: Plug-in Solenoid Coil, MSEB Series

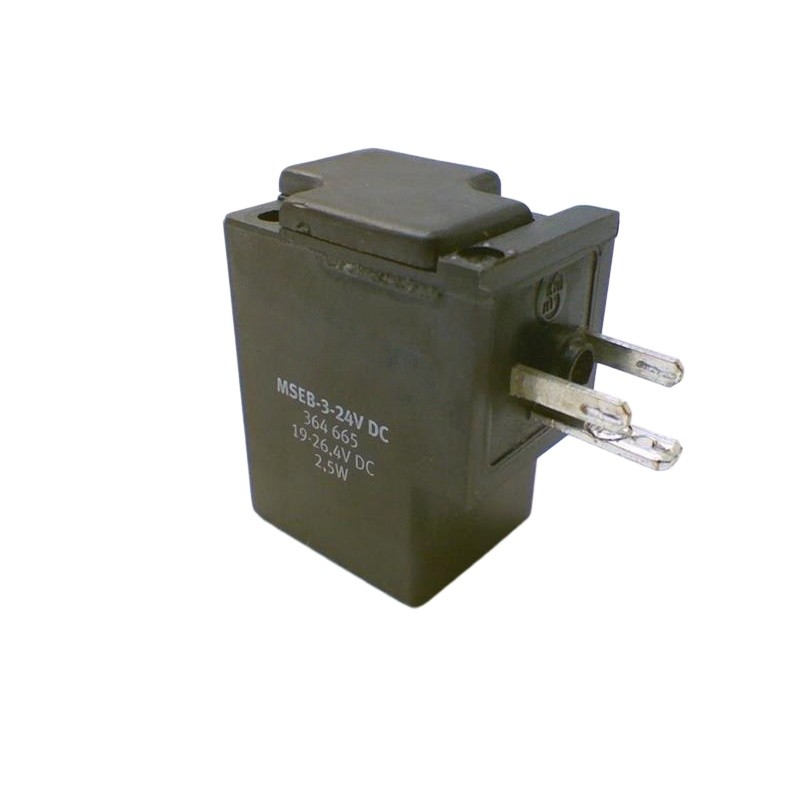

Festo MSEB-3-24V DC solenoid coil, part number 364665, is a dedicated plug-in electromagnetic coil for Festo MS series service unit valves, especially matching MS4 and MS6 EE soft start shut-off valves. This coil works at 24V DC, supports continuous 100% duty cycle without overheating. The 3-pin terminal follows EN 175301-803 Type C standard, IP65 protection for dust and splash resistance. The thermosetting plastic shell protects the internal copper winding, stable performance under -10℃~+50℃ environment. It is fixed with an M2.5 central screw for quick installation and replacement. It serves as spare and replacement part for pneumatic on-off valves in air source treatment units of automation lines.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | MSEB-3-24V DC |
| Part No. | 364665 |
| Product Series | MSEB |
| Product Type | Solenoid Coil / Electromagnetic Coil |
| Product Function | Plug-in 3-blade solenoid coil for MS series service unit on-off/soft start valve |
| Nominal Voltage | 24V DC |
| Power Consumption | 1.5~2.5 W |
| Voltage Tolerance | ±10% |
| Duty Cycle | 100% continuous operation |
| Electrical Interface | 3-pin, conform to EN 175301-803 Type C |
| Protection Class | IP65 |
| Ambient Temperature | -10 ℃ ~ +50 ℃ |
| Housing Material | Thermosetting plastic |
| Winding Material | Copper |
| Mounting | M2.5 central screw, mounted on MS series solenoid valve |
| Feature | Compact plug-in coil, 3-blade terminal, compatible with MS4/MS6 EE soft start shut-off valve |
| Application | MS series air service unit solenoid valve, pneumatic on-off valve, automation compressed air control |
| Net Weight | 52 g/pc |
| RoHS Compliance | Yes |
