QSL-G1/8-8
Product Overview

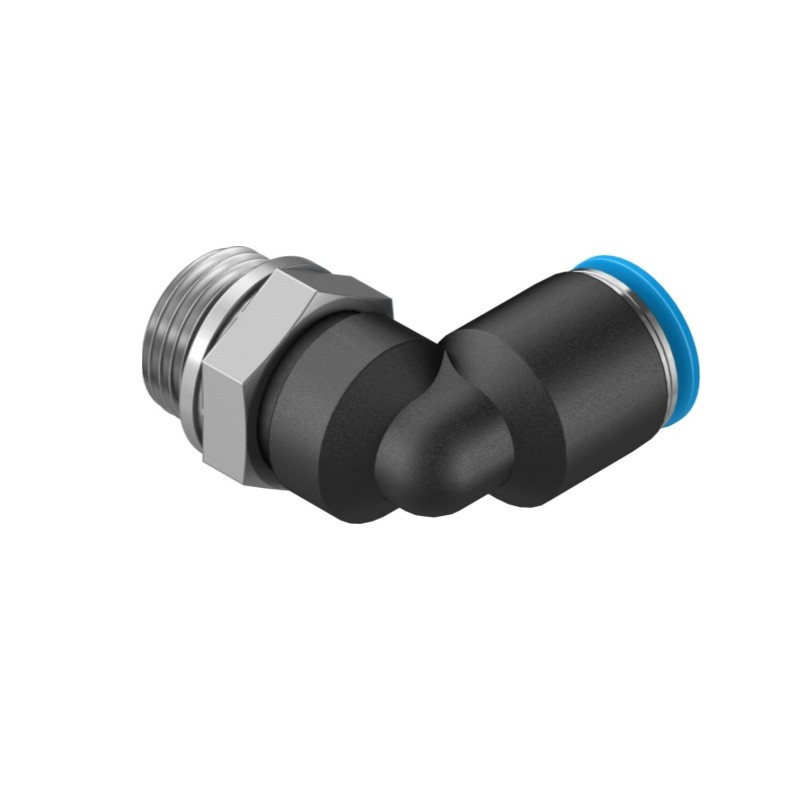

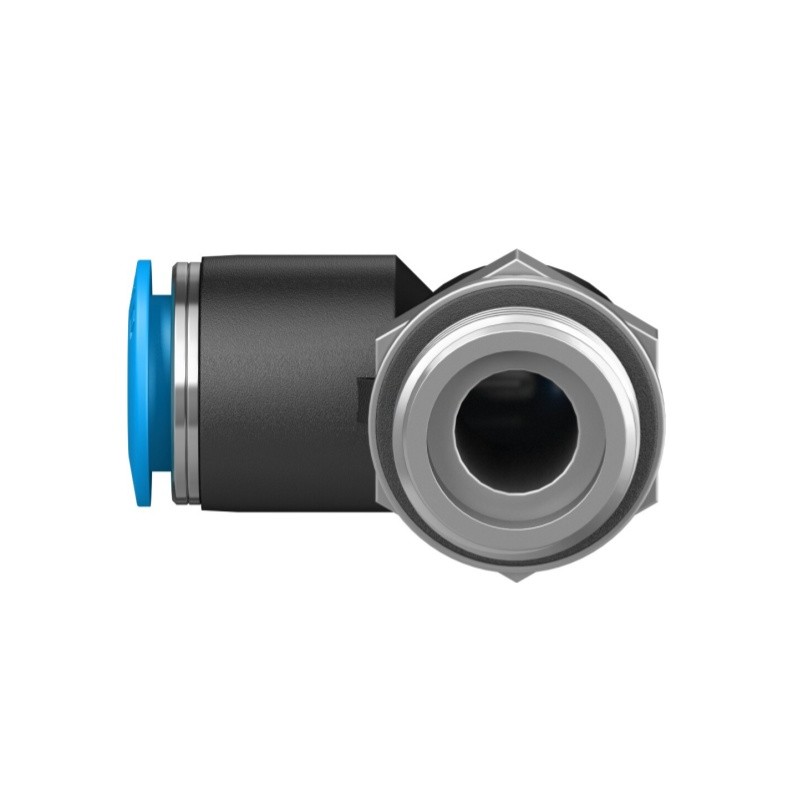

QSL-G1/8-8, Part No.153102, belongs to Festo QS series push-in fitting. It is a 90-degree L-shaped elbow connector with G1/8 parallel male thread on one end and quick insert port for 8mm outer diameter tube on the other. The elbow body can rotate freely after threaded installation to adjust tube orientation. Tube can be directly inserted; press release ring to pull out tube without tools. Widely used to change pipeline direction when connecting cylinders, valves and other pneumatic components in automation pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-G1/8-8 |
| Part No. | 153102 |
| Type | Elbow push-in fitting, male thread |
| Thread | G1/8 male parallel thread |
| Tube OD | 8 mm |
| Nominal bore | 6 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 8.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, 90° elbow design, rotatable joint, tool-free tube assembly and disassembly |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
