QSLF-1/8-6-B
Product Overview

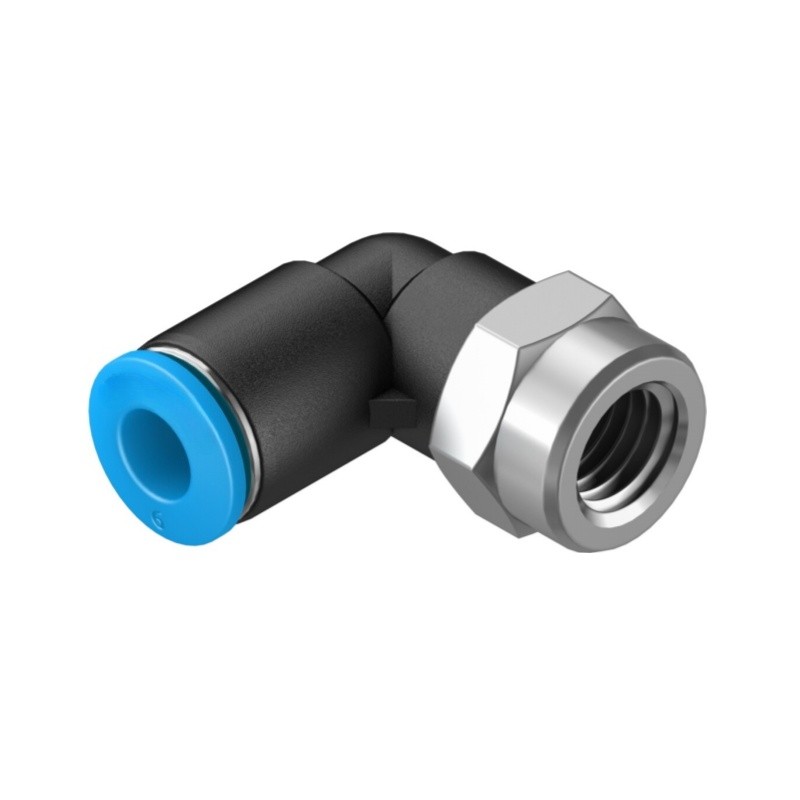

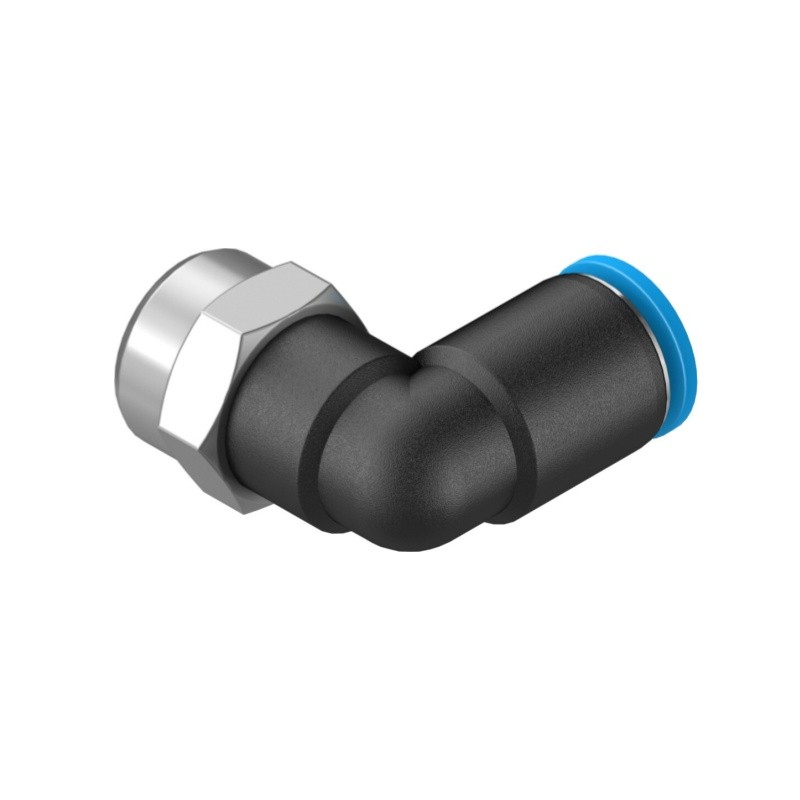

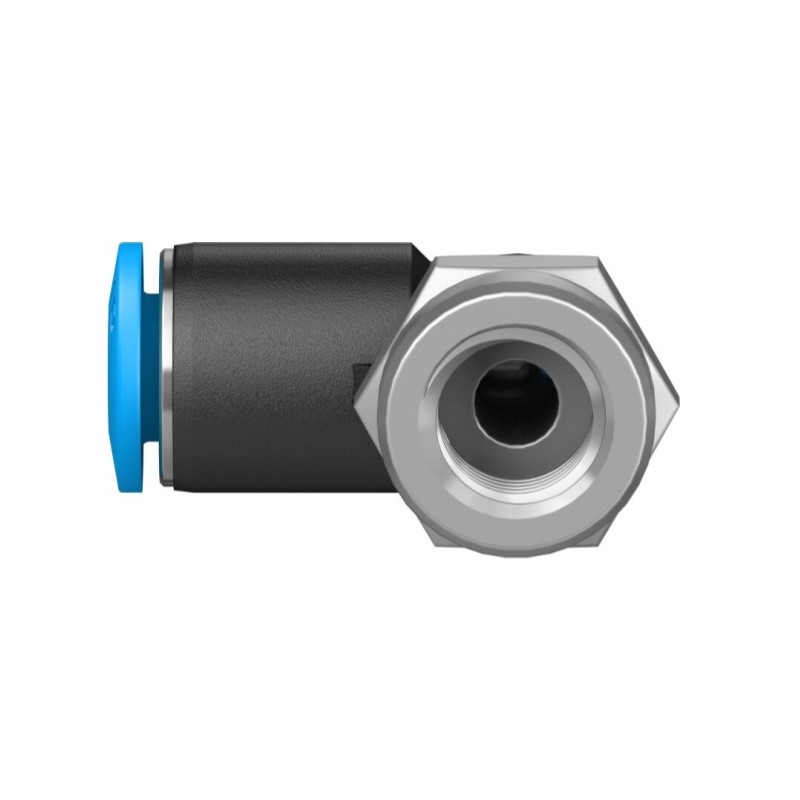

QSLF-1/8-6-B, Part No.153107, belongs to Festo QS series push-in fitting. It is a 90-degree L-shaped elbow connector, one end is G1/8 internal parallel thread, the other end is quick insert port for 6mm outer diameter pneumatic tube. Adopts blue release ring design, tube can be inserted directly; press the release ring to pull out the tube without tools. It is used to change the direction of gas pipeline, connect pneumatic components with external thread ports and pneumatic tubes, widely used in small flow pneumatic circuits of automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSLF-1/8-6-B |
| Part No. | 153107 |
| Type | Elbow push-in fitting, female thread |
| Thread | G1/8 internal parallel thread |
| Tube OD | 6 mm |
| Nominal bore | 4 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 6.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, 90° elbow female thread design, blue release ring, tool-free tube assembly and disassembly |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
