CPE24-M2H-5LS-3/8
Product Overview

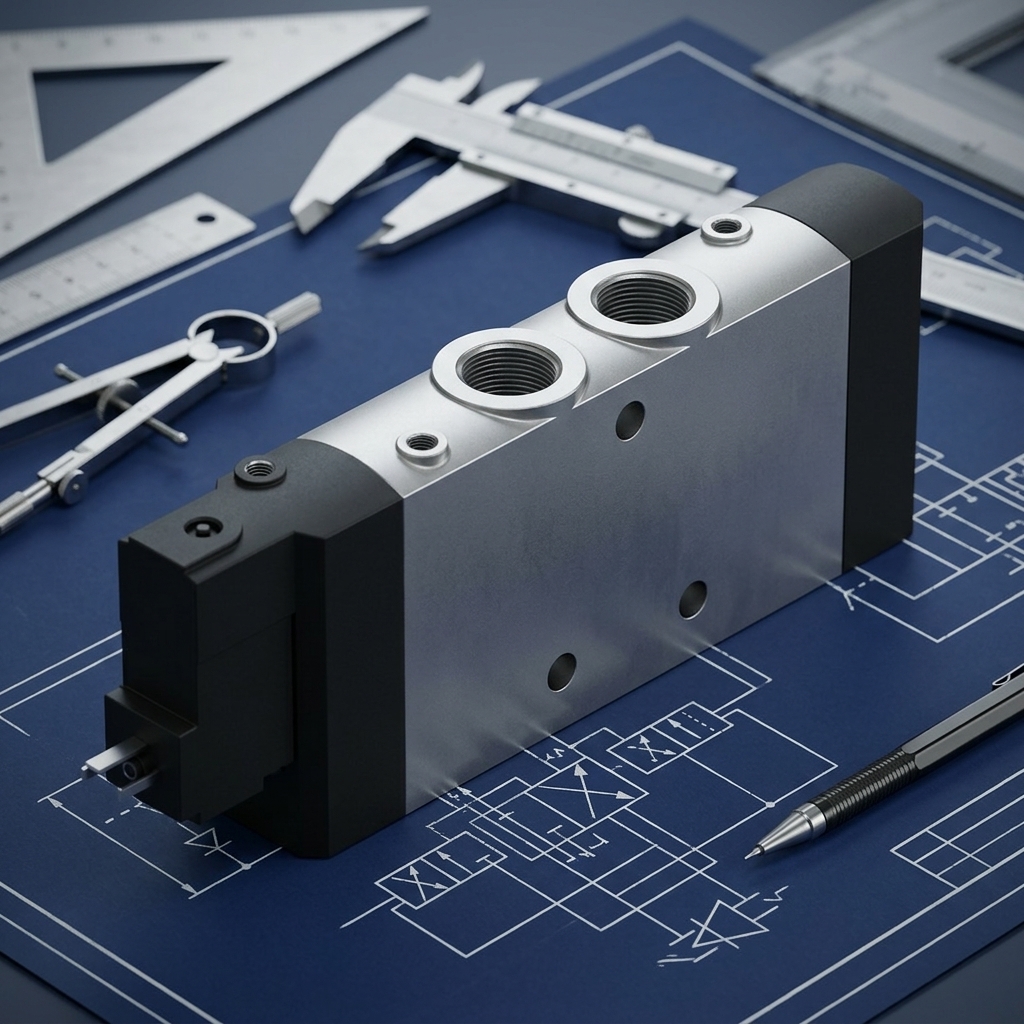

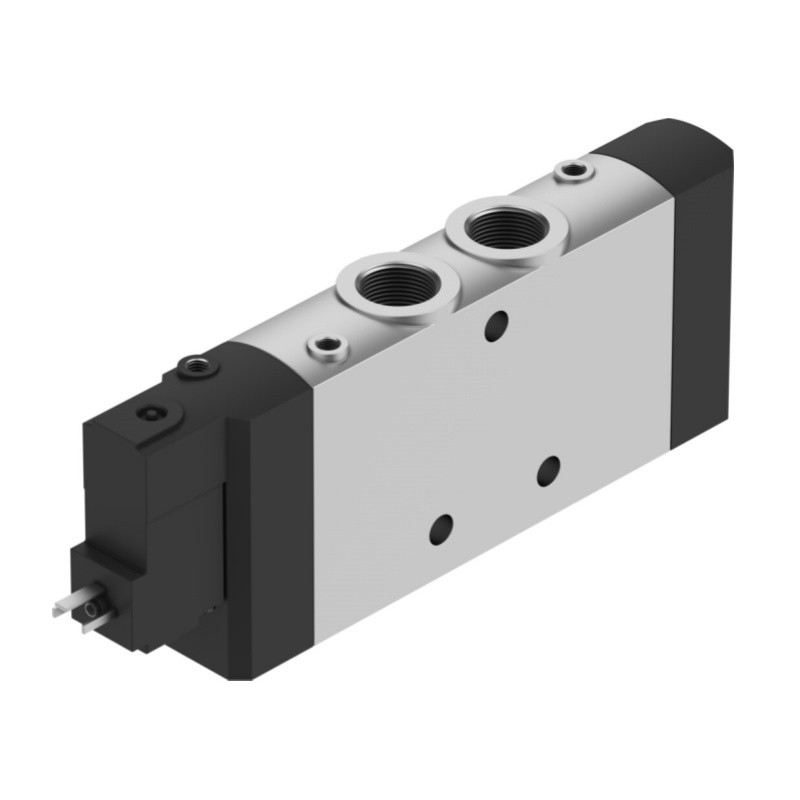

CPE24-M2H-5LS-3/8, Part No.163167, belongs to Festo CPE series compact directional solenoid valve. It is a 5/2-way single solenoid valve with spring return reset. Equipped with G3/8 pneumatic ports and high nominal flow of 1300 l/min. It supports base plate mounting, can be installed as single valve or assembled into manifold valve bank. DC24V coil with 3W power consumption and built-in reverse polarity protection. It reaches IP65 protection class when fitted with matching electrical connector. Widely used to drive large pneumatic cylinders and actuators in automation production lines, packaging equipment and fixture pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPE24-M2H-5LS-3/8 |
| Part No. | 163167 |
| Type | Solenoid valve, 5/2-way, single solenoid |
| Valve function | 5/2-way single solenoid, spring return |
| Pneumatic port | G3/8 |
| Nominal flow rate | 1300 l/min |
| Operating pressure | 2 ~ 8 bar |
| Coil voltage | DC24V |
| Power consumption | 3W |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | -10 ~ 50 ℃ |
| Protection class | IP65 (with electrical connector assembled) |
| Material | Valve body: PPS, Seal: NBR |
| Weight | 260.00 g |
| Feature | CPE compact directional valve, base plate mounting, high flow capacity, reverse polarity protection for coil, can be used individually or assembled into manifold bank |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Certificates | CE |
