DBS50E-S5EMO1000
Product Overview

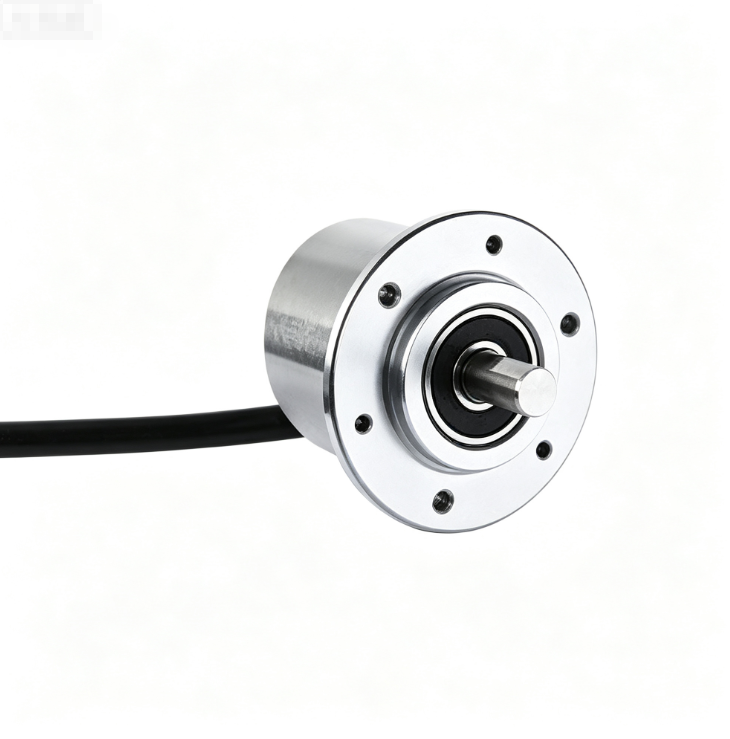

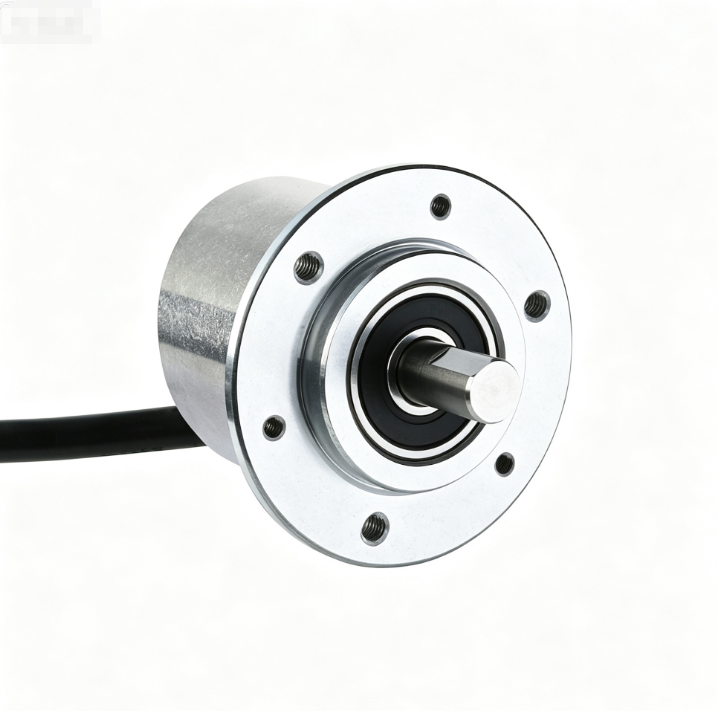

DBS50E-S5EM01000 is SICK incremental rotary encoder. It comes with 1000 ppr resolution, fitted with 6mm solid shaft and M12 5-pin straight connector. It uses RS422 line driver output, supply voltage 4.75~30 V DC, maximum rotating speed up to 12000 rpm. Aluminum alloy housing with IP67 high protection grade. Compact structure, high speed performance and stable pulse signals, it is suitable for speed and position detection of mini industrial automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | DBS50E-S5EM01000 |
| Product Type | Incremental Rotary Encoder |
| Connector Type | M12 Straight, 5 Pin |
| Pin | 5 Pin |
| Pulse Per Revolution | 1000 ppr |
| Shaft Type | Solid shaft |
| Shaft Diameter | 6 mm |
| Output Signal | Line driver (RS422) |
| Supply Voltage | 4.75…30 V DC |
| Max Speed | 12000 rpm |
| IP Rating | IP67 |
| Housing Material | Aluminum alloy |
| Operating Temperature | -20℃~+70℃ |
| Feature | 1000ppr incremental encoder,6mm solid shaft,M12 5pin connector,high speed,compact size,stable RS422 pulse signal |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.18 KG |
| Net Weight | 0.15 KG |
| Place of Origin | Germany |
