ATV320D11N4B
Product Overview

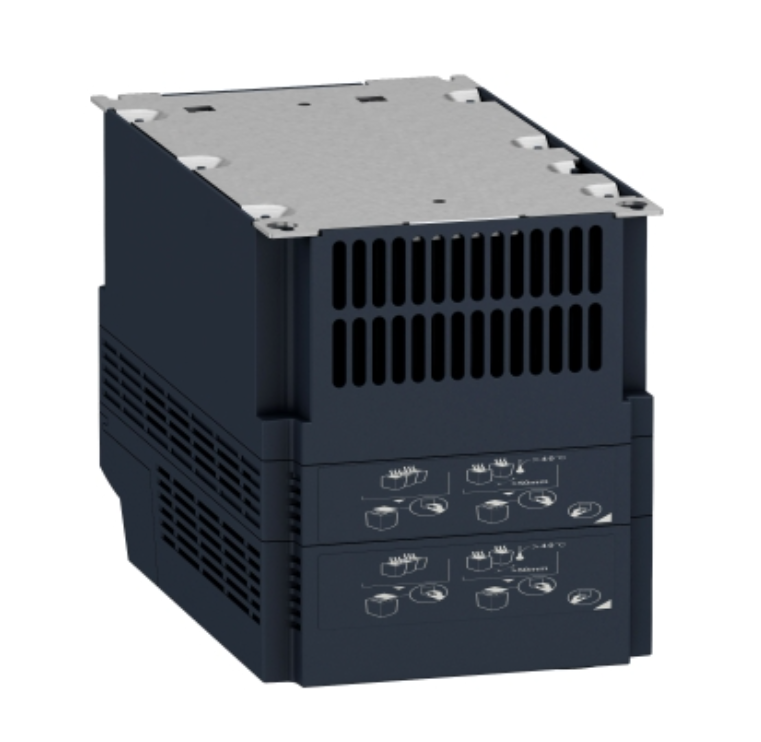

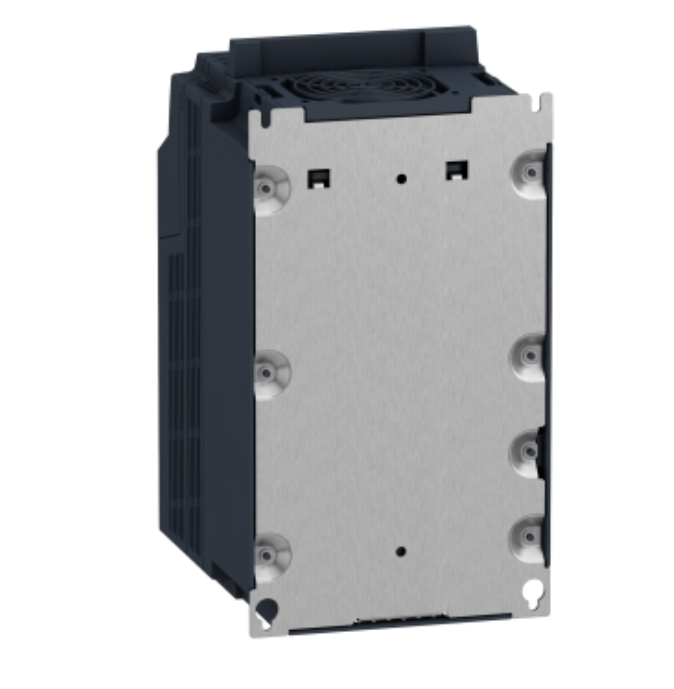

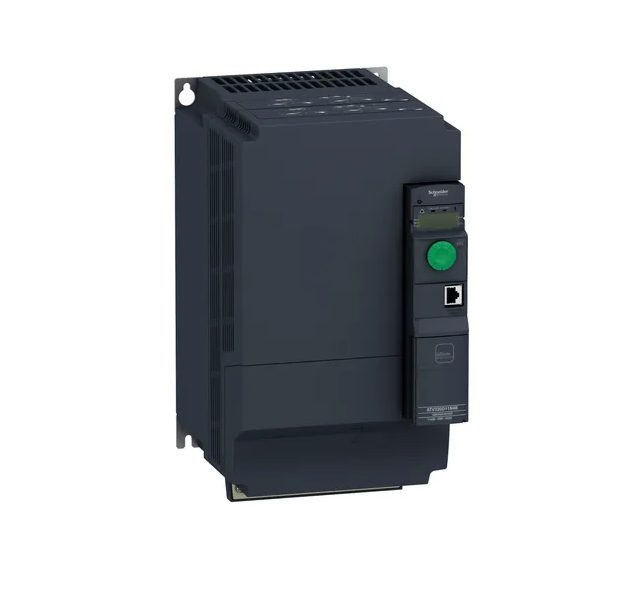

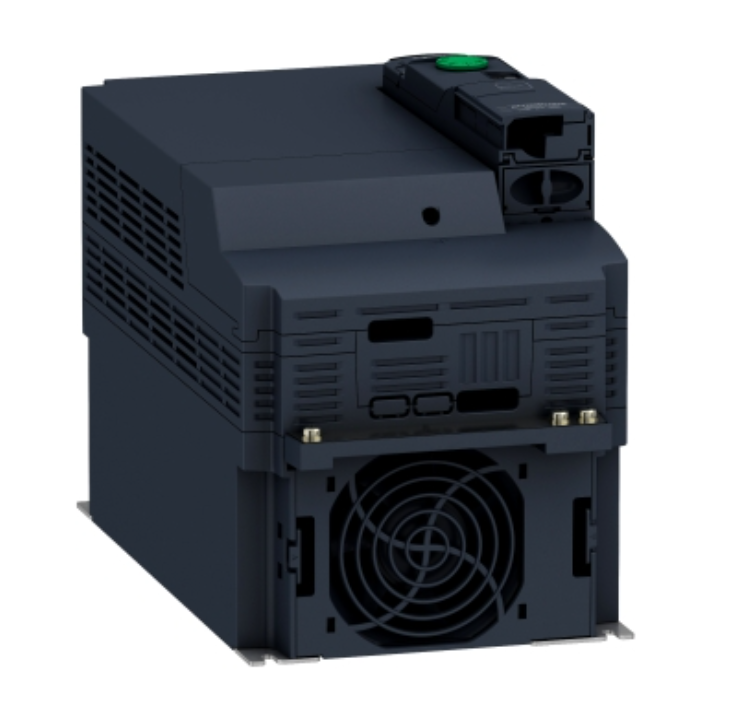

Schneider ATV320D11N4B belongs to Altivar Machine ATV320 series, book type variable speed drive for OEM machine automation. This 11kW heavy-duty 3-phase VFD supports asynchronous and synchronous motors, built with C3 EMC filter and braking chopper. Compact book design for cabinet wall mounting, dedicated for machinery industry with excellent low-speed torque performance and integrated STO & SS1 safety functions. It is widely adopted for packaging machines, conveyors, machine tools, fans and pumps.
| Attribute Name | Value |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320D11N4B |
| Series | Altivar Machine ATV320 |
| Type | Variable Speed Drive / VFD |
| Motor Power | 11kW Heavy duty |
| Rated Voltage | 380~500V 3Phase |
| Output Current | 27.7A |
| IP Rating | IP20 |
| Built-in Brake Unit | Yes |
| Cooling | Forced air cooling |
| Communication | Modbus RTU, CANopen |
| Condition | New Original |
| Net Weight | 6.80kg |
| Gross Weight | 8.80kg |
