DFM-12-10-P-A-GF
Product Overview

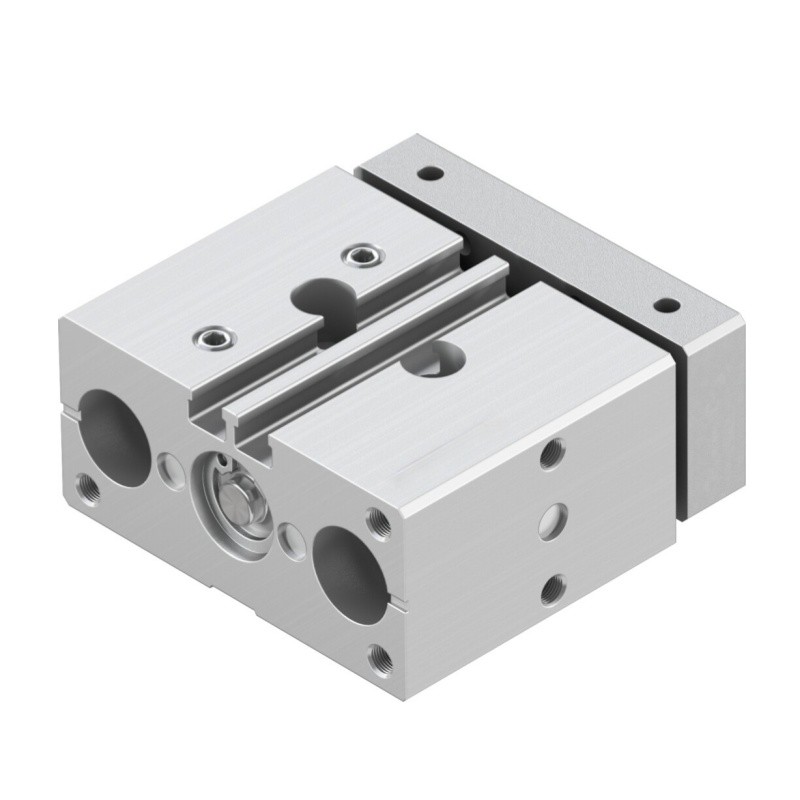

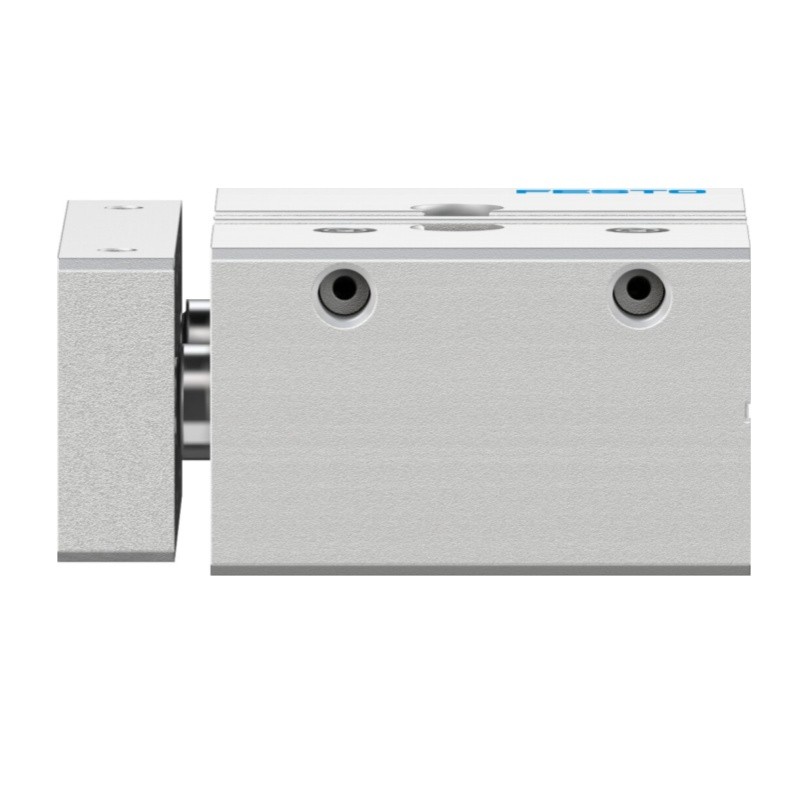

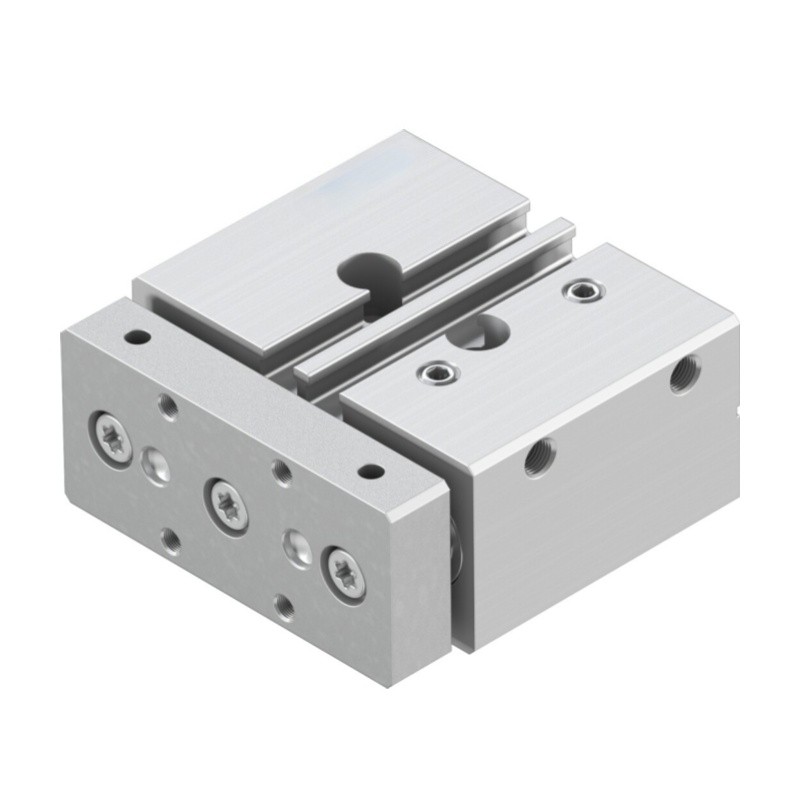

Item No: 170824 Model: DFM-12-10-P-A-GF Brand: Festo Type: Guided Pneumatic Cylinder / Guided Drive, DFM Series.
Festo DFM-12-10-P-A-GF guided cylinder, part number 170824, belongs to DFM series integrated guided drive. It is double acting type with plain bearing GF guide structure. The integrated guide rod design offers strong anti-torsion capability, can withstand radial loads and torque without extra guiding mechanism. Bore size 12 mm, stroke 10 mm, M5 air port, elastic cushion rings at both ends to absorb impact. The body is made of anodized aluminium alloy and alloy steel guide rod, NBR seals for reliable air tightness. It allows installation of proximity switches to detect piston position, and can be mounted in any orientation. Ideal for pick & place, material handling, automation jigs and assembly equipment requiring precise linear movement.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | DFM-12-10-P-A-GF |
| Part No. | 170824 |
| Product Series | DFM |
| Product Type | Guided Drive / Guided Pneumatic Cylinder |
| Product Function | Double acting guided cylinder with plain bearing guide (GF) |
| Bore | 12 mm |
| Stroke | 10 mm |
| Pneumatic Connection | M5 |
| Operating Pressure | 2 ~ 10 bar |
| Max Speed | 0.8 m/s |
| Cushioning | Elastic cushioning rings at both ends |
| Theoretical Force @6bar | Advance:68 N, Return:51 N |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4] |
| Ambient Temperature | -20 ℃ ~ +80 ℃ |
| Housing Material | Anodized aluminium alloy |
| Guide Rod Material | Alloy steel |
| Seal Material | NBR |
| Guide Type | Plain bearing guide (GF) |
| Position Detection | For proximity switch |
| Mounting | Any mounting position |
| Net Weight | 344 g/pc |
| RoHS Compliance | Yes |
| Feature | Integrated guided drive, anti-torsion, high rigidity, plain bearing |
| Application | Material handling, pick & place, automation fixture, assembly equipment |
