6ES7331-1KF020AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7331-1KF02-0AB0
Series	SIMATIC S7-300, SM331 Analog Input Module
Type	PLC Analog Input Module
I/O Spec	8AI, 13bit Resolution, Isolated
Signal Type	Voltage, Current, Resistance, PT100, NI100, NI1000, PTC, KTY
Conversion Time	66ms
Connector	40-pole Front Connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.30kg
Gross Weight	0.50kg

INQUIRY

Product Details

Product Tags

Product Overview

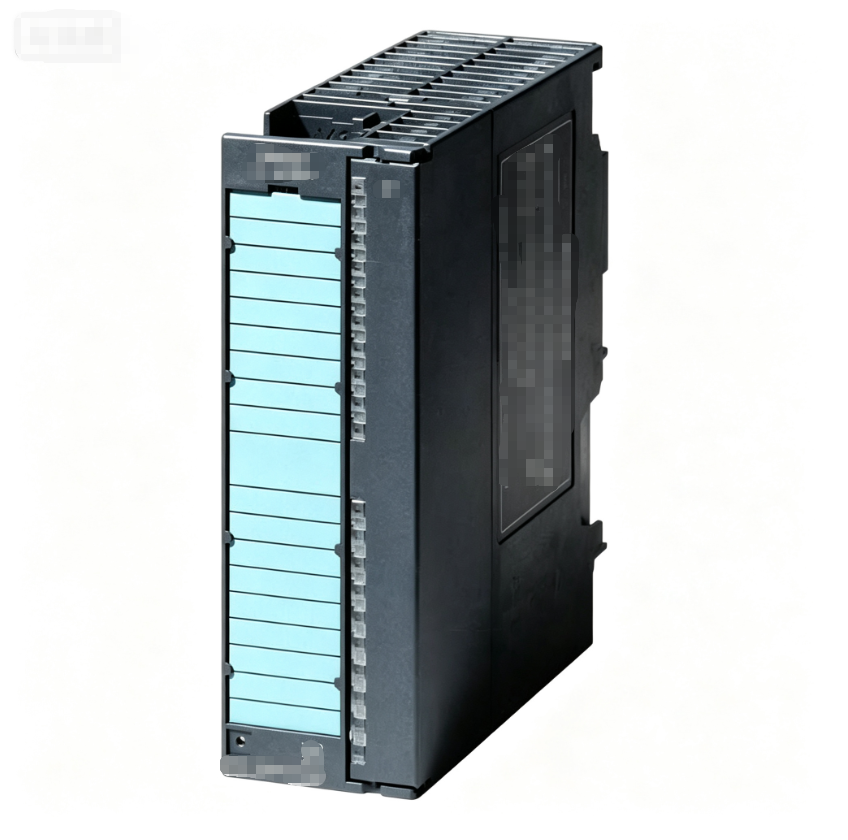

Siemens 6ES7331-1KF02-0AB0 is SM331 analog input module for SIMATIC S7-300 PLC system. It is an isolated 8-channel analog input module with 13-bit resolution. This module supports multiple signal types including voltage, current, resistance, PT100, NI100, NI1000, PTC and KTY temperature sensors. Conversion time 66ms, equipped with 40-pole front connector, powered by DC24V, mounted on S7-300 backplane DIN rail. Widely used for temperature, pressure and flow sensor signal acquisition in factory automation.

Attribute Name	Value
Brand	Siemens
Model	6ES7331-1KF02-0AB0
Series	SIMATIC S7-300, SM331 Analog Input Module
Type	PLC Analog Input Module
I/O Spec	8AI, 13bit Resolution, Isolated
Signal Type	Voltage, Current, Resistance, PT100, NI100, NI1000, PTC, KTY
Conversion Time	66ms
Connector	40-pole Front Connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.30kg
Gross Weight	0.50kg
