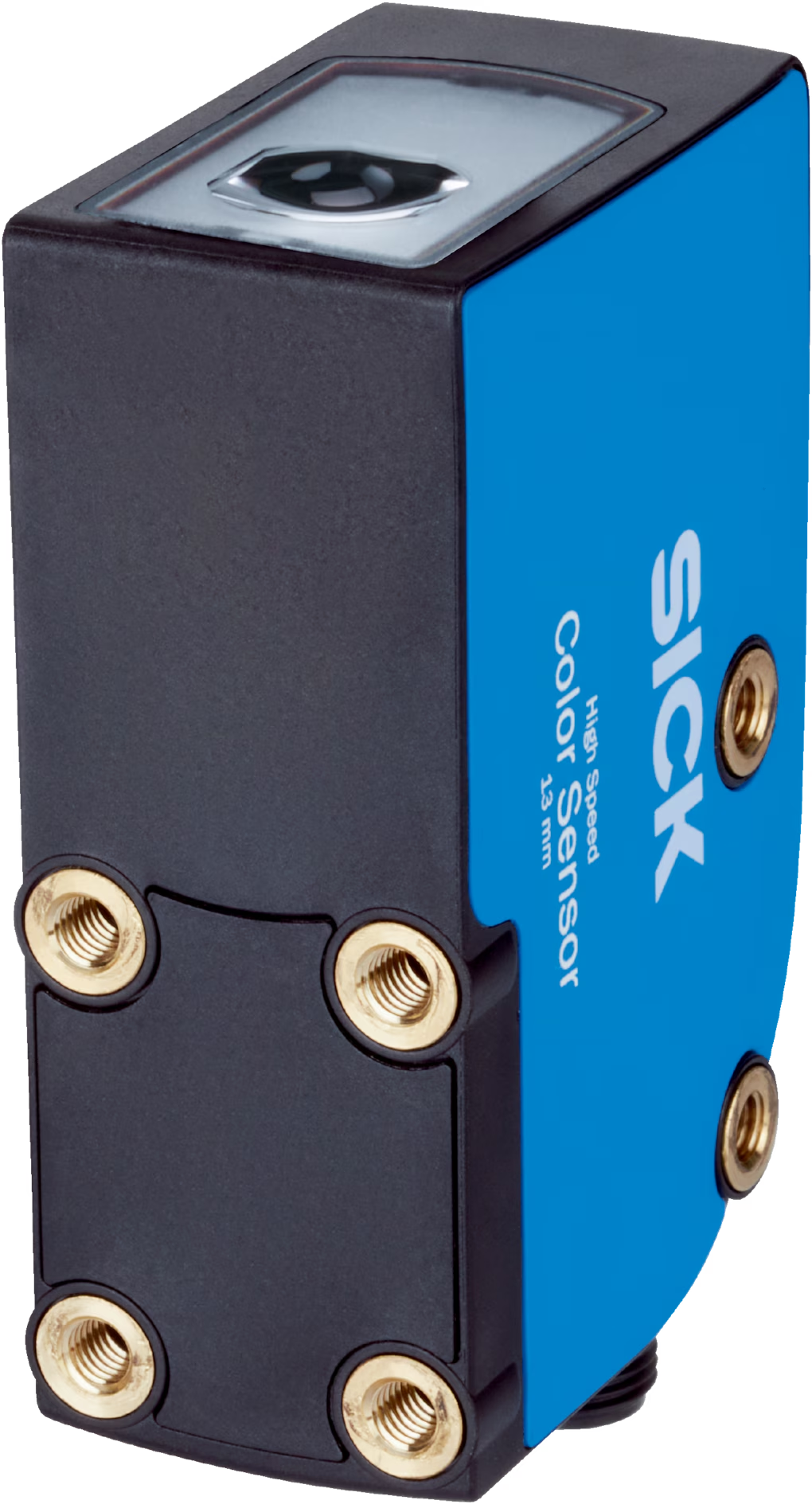

CSX-WPF1142252ZZZZ 1147711
Product Overview
CSX-WPF1142252ZZZZ (1147711) is SICK CSS/CSX High Speed color sensor, without IO-Link interface. 13 mm sensing distance, 2×4 mm vertical light spot, up to 13.8 kHz high switching frequency. It supports single and multi-color teach-in, IP67 protection. Suitable for color identification, color marking detection and color sorting in packaging, printing and automation lines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | CSX-WPF1142252ZZZZ |
| SICK ID | 1147711 |
| Product Series | CSS/CSX High Speed |
| Product Type | Color Sensor |
| Sensing Distance | 13 mm |
| Light Source | RGB LED |
| Spot Size | 2 mm × 4 mm, vertical |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Switching Frequency | 13.8 kHz |
| Response Time | 36 µs |
| Supply Voltage | 10.8–28.8 V DC |
| Output Type | Push-pull, PNP/NPN |
| Output Channel | 2 × hardware switching outputs |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | M12, 5-pin male connector |
| Housing Material | VISTAL® Plastic |
| Color Mode | C / C+I |
| Teach Mode | Single value / Multi value teach-in |
| Job Banks | 4 |
| Sensitivity Adjustment | Continuous 0–999 |
| MTTFD | 263.7 years |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.09 kg |
| Gross Weight | 0.12 kg |
