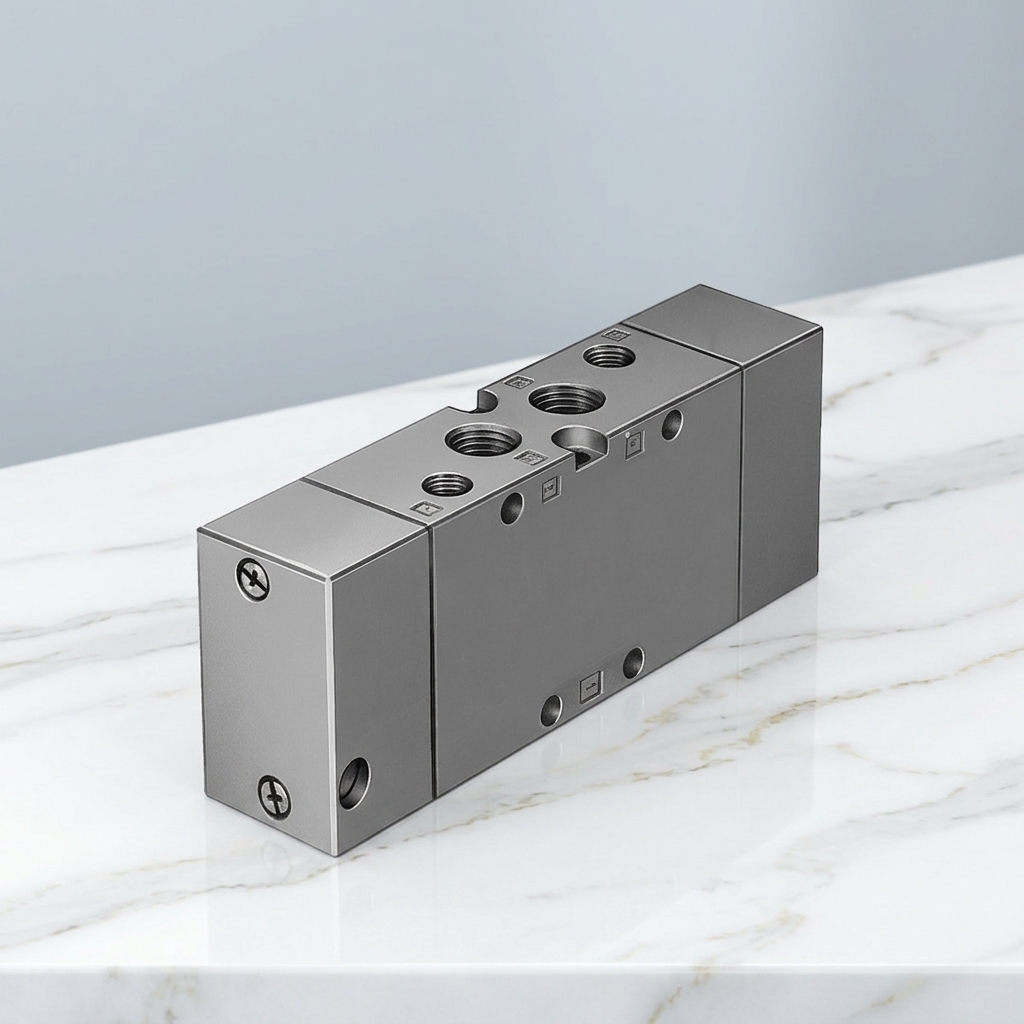

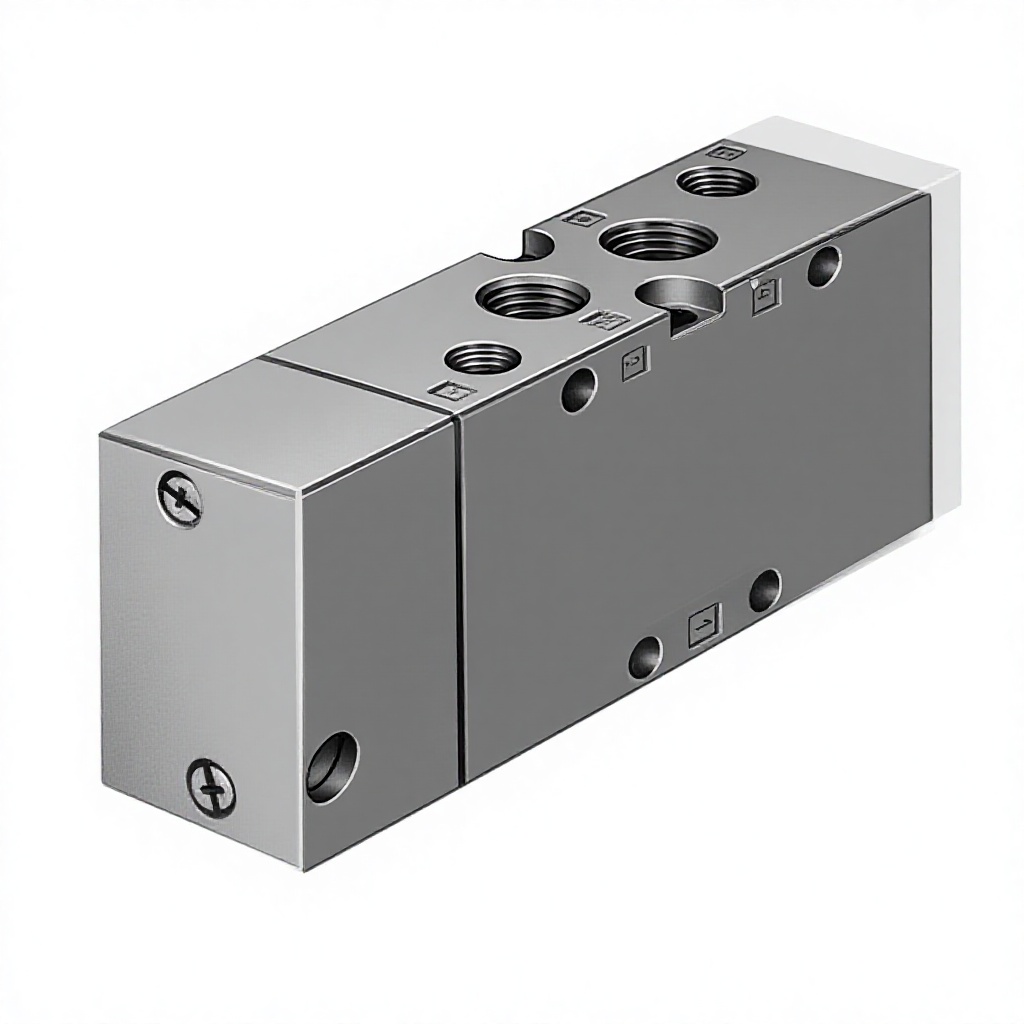

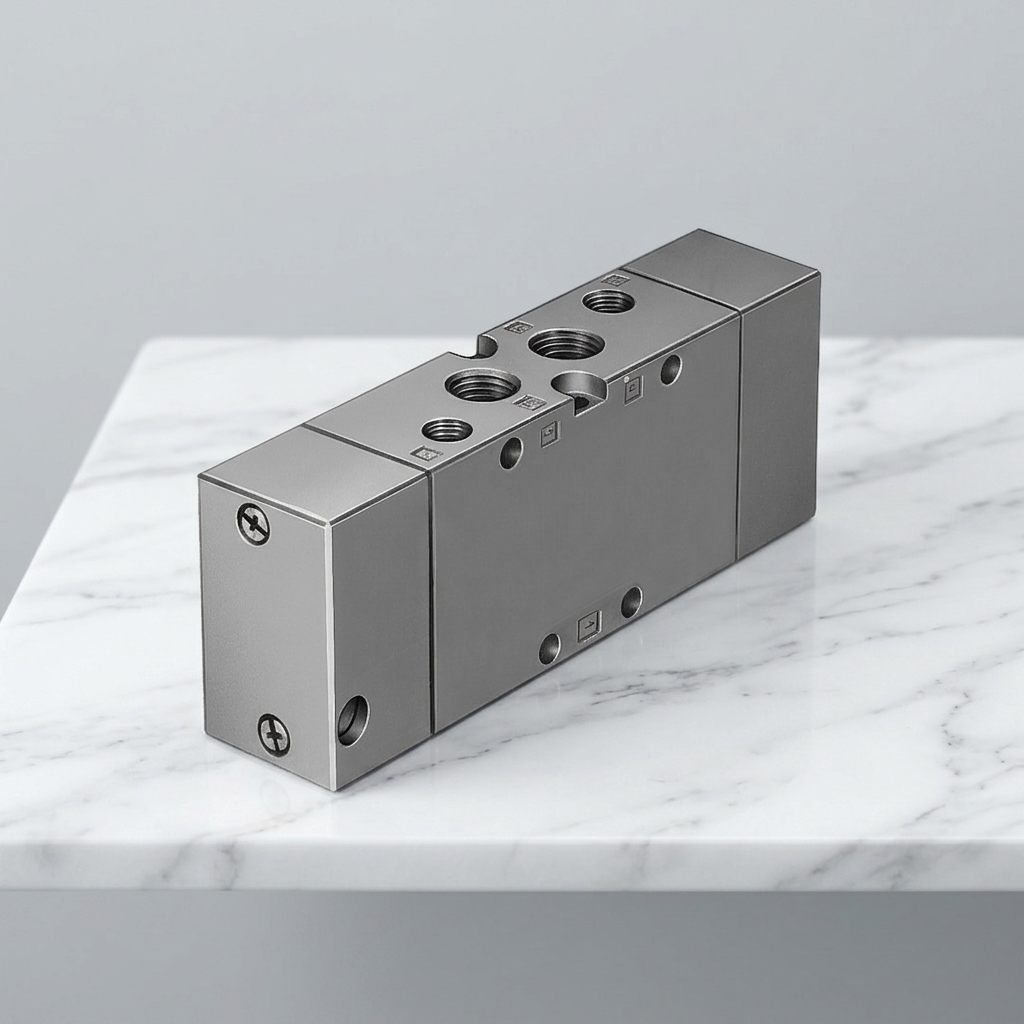

30988 J-5-1/8-B
Product Overview
Item No: 30988 Model: J-5-1/8-B Brand: Festo Type: 5/2-Way Bistable Pneumatic Pilot Valve
Festo J-5-1/8-B pneumatic pilot valve, part number 30988, belongs to J series pneumatically operated directional valves. It is a 5/2-way bistable piston gate valve, actuated by pilot air without any electric coil. With G1/8 pneumatic port and high nominal flow rate up to 1000 l/min. Bistable design retains valve position after removing pilot signal. The valve housing is die-cast aluminium alloy fitted with NBR soft seal. It works with filtered compressed air, lubricated or unlubricated. Sub-base mounting design, widely applied in pneumatic circuits to control double-acting cylinders in automated machinery.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | J-5-1/8-B |
| Part No. | 30988 |
| Product Series | J |
| Product Type | 5/2 Way Pneumatic Pilot Valve |
| Valve Function | 5/2-way, bistable |
| Pneumatic Connection | G1/8 |
| Nominal Diameter | 4 mm |
| Nominal Flow Rate | 350 l/min |
| Operating Pressure | 1.5 ~ 10 bar |
| Operating Medium | Filtered compressed air, lubricated or unlubricated |
| Ambient Temperature | -10 ℃ ~ +60 ℃ |
| Housing Material | Die-cast aluminium alloy |
| Seal Material | NBR |
| Manual Override | No |
| Reset Type | Pneumatic pilot control |
| Mounting | Sub-base mounted |
| Net Weight | 110 g/pc |
| RoHS Compliance | Yes |
| Feature | Bistable pneumatically operated valve, no electric coil |
| Application | Pneumatic circuit control, cylinder direction control |
