ELGA-BS-KF-80-1300-0H-10P-ML
Product Overview

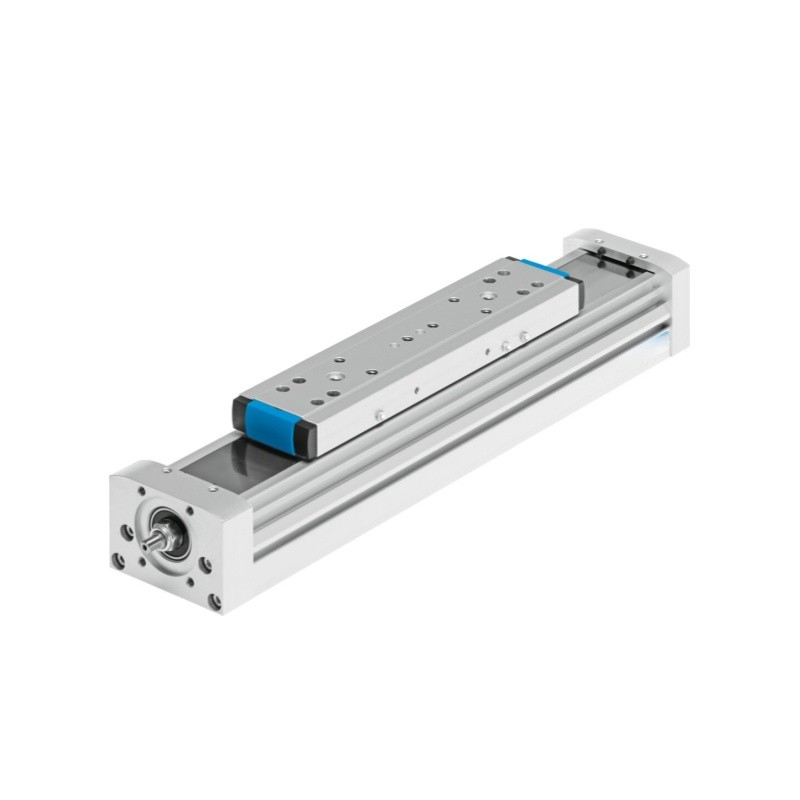

FESTO ELGA-BS-KF-80-1300-0H-10P-ML belongs to ELGA-BS-KF ball screw linear axis series. It adopts recirculating ball bearing guide and precision ball screw transmission. Size 80, nominal working stroke 1300 mm, spindle pitch 10 mm per revolution. ML variant is left-side motor mounting; 0H means no stroke reserve. Max feed force reaches 1600 N, repeat positioning accuracy ±0.02 mm, max speed 0.5 m/s, max acceleration 15 m/s². Stainless steel cover strip protects internal screw and guide rail from dust. Built-in sensor slot for proximity switches. LABS(PWIS) compliant, suitable for paint workshop and lithium battery automation. Aluminium extruded profile, compact high-rigidity structure, any installation orientation, widely used for high-precision linear positioning tasks.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | ELGA-BS-KF-80-1300-0H-10P-ML |
| Order No. | 8053170 |
| Product Series | ELGA-BS-KF |
| Product Type | Ball Screw Electromechanical Linear Axis |
| Structure | Recirculating ball bearing guide + precision ball screw drive |
| Size | 80 |
| Nominal Stroke | 1300 mm |
| Spindle Pitch | 10 mm/rev（10P） |
| Variant | 0H: No stroke reserve; ML: Motor left side mounting |
| Max Feed Force | 1600 N |
| Repeat Accuracy | ±0.02 mm |
| Max Speed | 0.5 m/s |
| Max Acceleration | 15 m/s² |
| Protection Class | IP40 |
| Ambient Temperature | -10 ~ +60 ℃ |
| Duty Cycle | 100% continuous operation |
| Profile Material | Wrought aluminium alloy, hard anodized |
| Cover Strip | High-alloy stainless steel |
| Slide Carriage | Aluminium alloy + steel ball bearing block |
| Ball Screw & Nut | Alloy steel |
| Feature | KF: ball bearing guide; metal stainless steel cover strip, sensor slot for proximity switch, LABS(PWIS) compliant VDMA24364, modular motor interface, high load capacity |
| Mounting | Any mounting position, T-slot for accessory mounting |
| Corrosion Resistance Class | CRC 2 |
| Weight | 19.6 kg |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
