DSL-32-100-270-CC-A-S2-KF-B
Product Overview

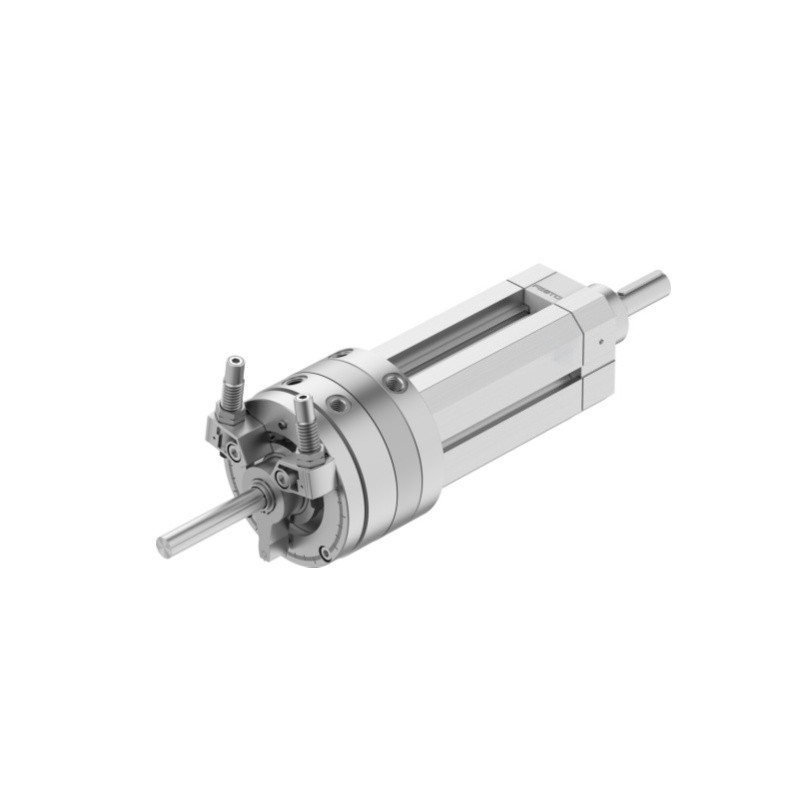

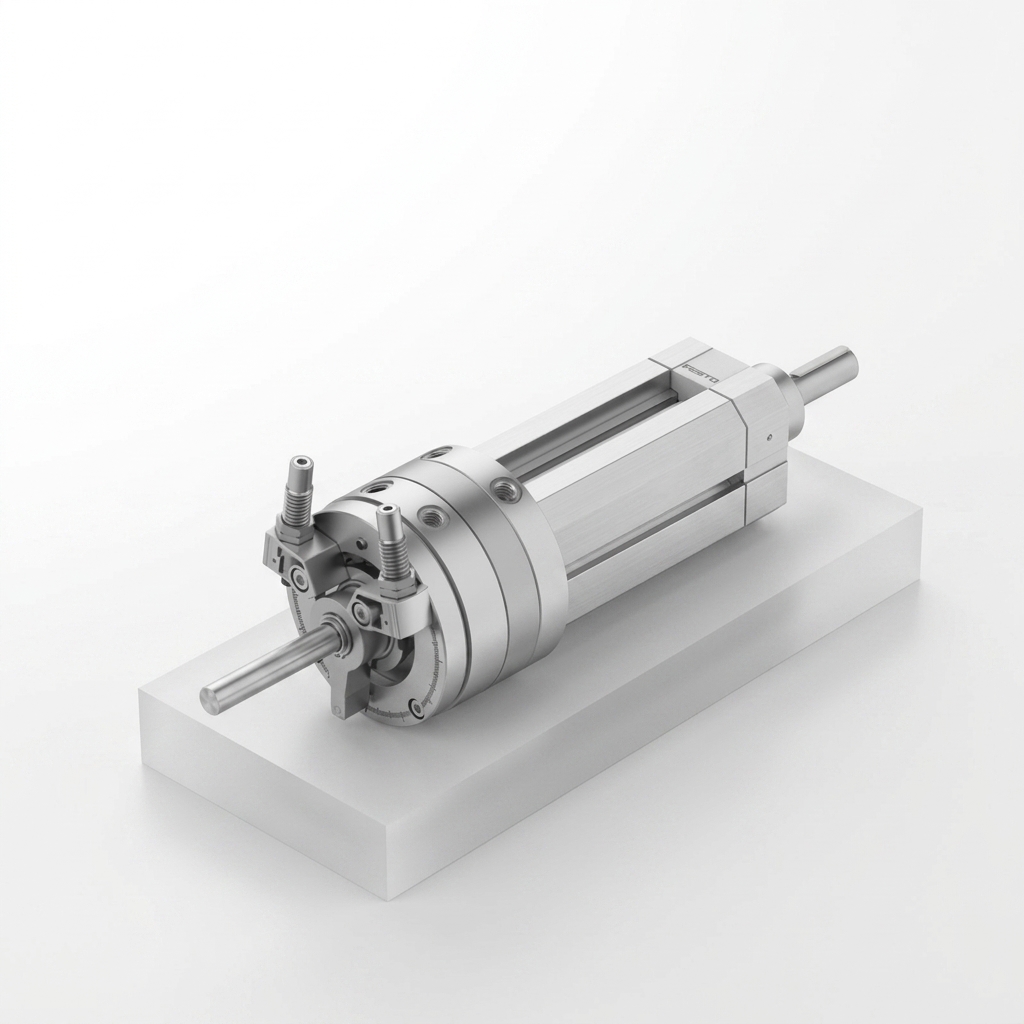

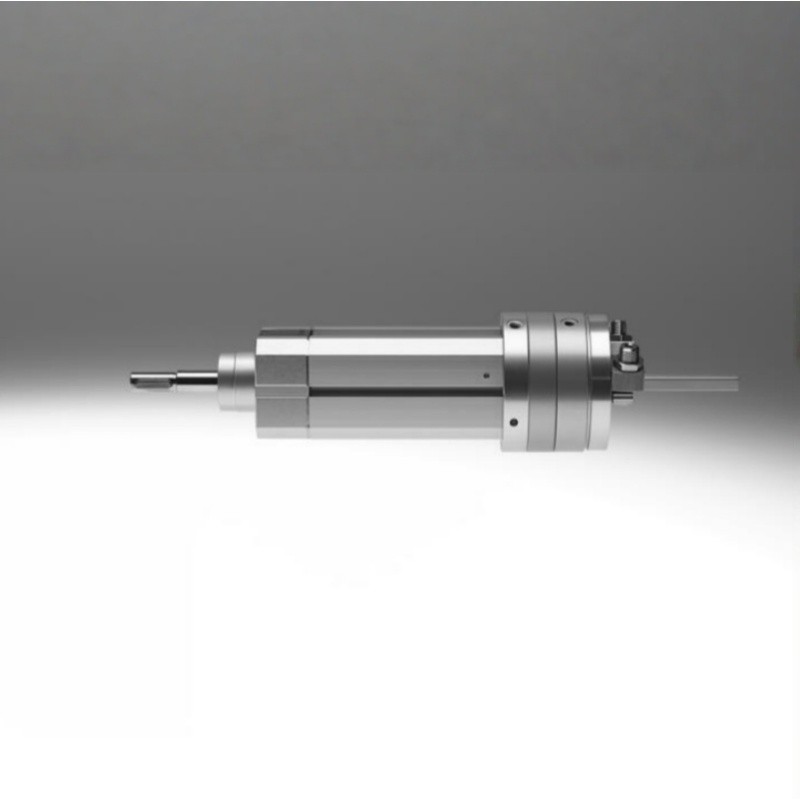

DSL-32-100-270-CC-A-S2-KF-B, Part No.556715, belongs to Festo DSL series swivel-linear combination unit. It integrates vane rotary drive and linear cylinder in one body, capable of linear movement and rotary swinging independently or at the same time. 32mm bore, 100mm linear stroke, nominal 270° adjustable rotation angle. CC type with shock absorber + elastic cushion at both ends, S2 double-ended piston rod and KF ball bearing guide for high precision. LABS/PWIS compliant, widely used for pick & place, workpiece lifting and rotating in automation lines.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSL-32-100-270-CC-A-S2-KF-B |
| Part No. | 556715 |
| Type | Swivel / linear unit, double acting, vane type |
| Piston diameter | 32 mm |
| Linear stroke | 100 mm |
| Nominal swivel angle | 270° (adjustable range 0~246°) |
| Cushioning | CC: Shock absorber at both ends + elastic cushion plates |
| Pneumatic port | G1/8 |
| Theoretical force @6 bar | Advance:403.5 N, Retract:294 N |
| Theoretical torque @6 bar | 10 Nm |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 2.5 ~ 8 bar |
| Temperature range | -10 ~ 60 ℃ |
| Guide type | Ball bearing guided |
| Feature | S2 double-ended piston rod, KF ball bearing, simultaneous or independent linear & rotary motion, LABS/PWIS compliant |
| Weight | 4390.00 g |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
| Standard | VDMA24364-B2-L |
