ADN-S-20-5-I-P
Product Overview

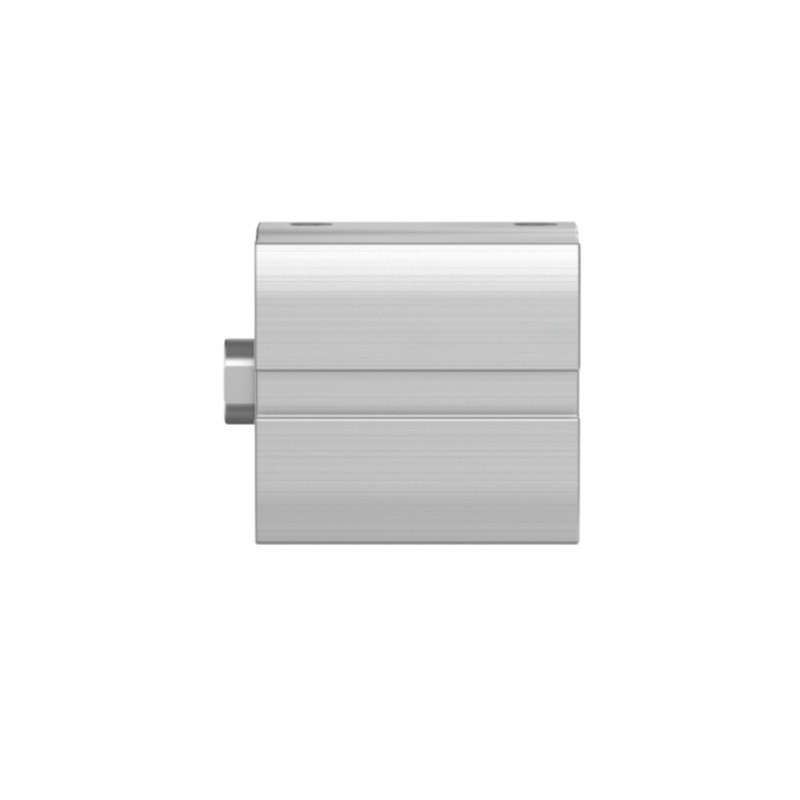

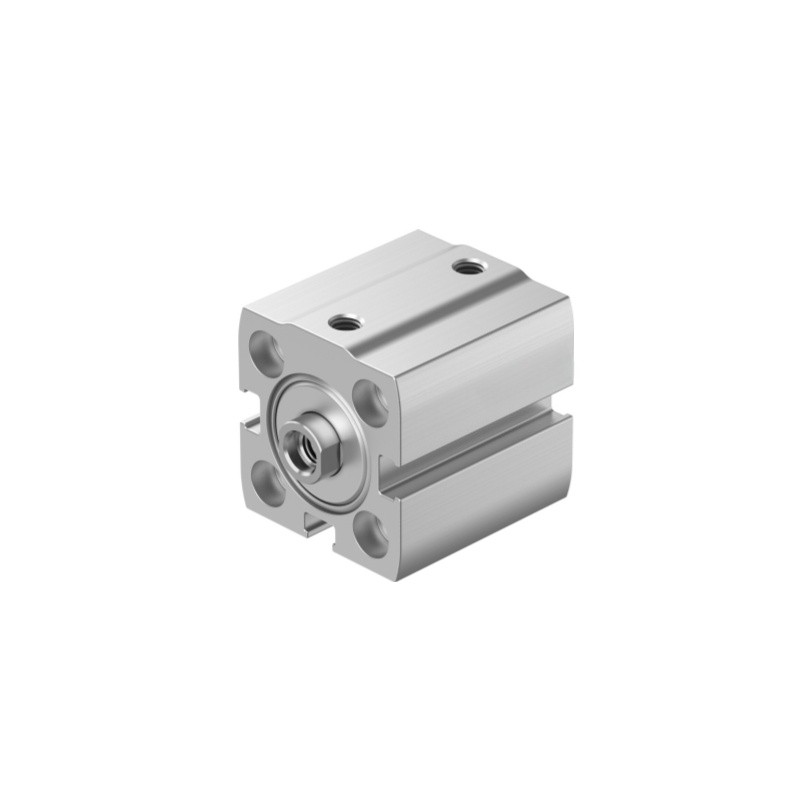

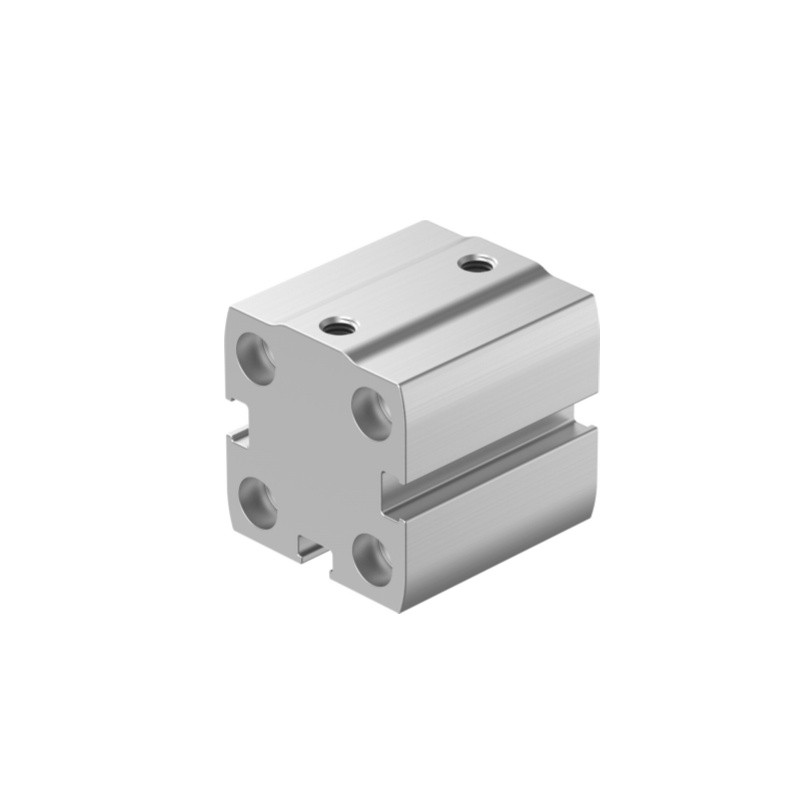

ADN-S-20-5-I-P, Part No.8076323, belongs to Festo ADN-S series compact cylinder. Double acting design with internal thread piston rod end, 20mm bore and ultra-short 5mm stroke. Equipped with elastic cushion rings on both ends to reduce impact. LABS/PWIS compliant and cleanroom class 5 suitable. Support magnetic position detection for signal feedback. Widely used for clamping, ejecting and positioning tasks in precision automation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADN-S-20-5-I-P |
| Part No. | 8076323 |
| Type | Compact cylinder, double-acting |
| Piston diameter | 20 mm |
| Stroke | 5 mm |
| Cushioning | Elastic cushion rings on both ends |
| Piston rod end | Internal thread (I) |
| Port size | M5 |
| Theoretical force @6 bar | Advance:188 N, Retract:141 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0.6 ~ 10 bar |
| Temperature range | 0 ~ 80 ℃ |
| Material | Housing: Anodised aluminium alloy, Piston rod: High-alloy stainless steel, Seal: NBR |
| Weight | 65.00 g |
| Feature | LABS/PWIS compliant, cleanroom suitability ISO 14644-14 Class 5, position sensing via proximity sensor |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
| Standard | VDMA24364-B2-L |
