MSSD-EB-M12

属性名称	属性值
Brand	Festo
Model	MSSD-EB-M12
Part No	539712
Product Type	Solenoid Valve Socket / Valve Plug Connector
Series	MSSD Series
Standard	EN 175301-803 Type C
Pin Count	3 pins
Rated Current	6 A (40℃)
Voltage Range	DC 0~300V / AC 0~250V
Cable Entry	M12 cable gland, angled 90°, rotatable
Wire Cross Section	0.5 ~1.5 mm²
Permissible Cable Diameter	6~8 mm
Mounting Method	M2.5 central screw, mounted on solenoid coil
Protection Class	IP67 (after fully assembled)
Ambient Temperature	-40

INQUIRY

Product Details

Product Tags

Product Description

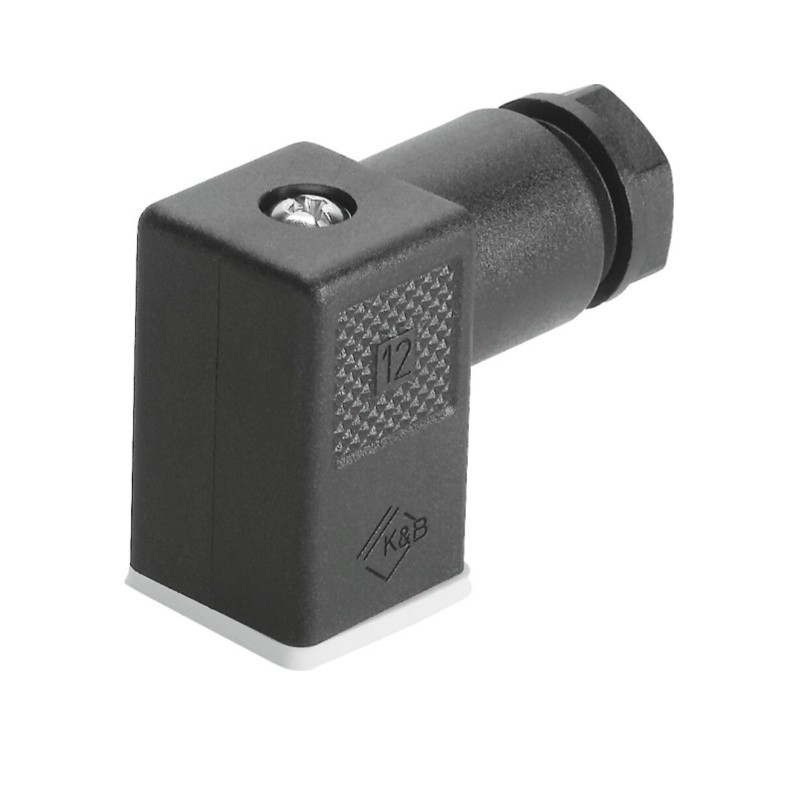

Festo MSSD-EB-M12 (Part No.539712) is MSSD series 3-pin solenoid valve socket, compliant with EN 175301-803 Type C standard. It adopts screw terminal wiring structure, equipped with M12 cable gland and 90° rotatable angled cable outlet.

Max rated current 6A, wide operating temperature range from -40℃ to +125℃, IP67 protection grade after full assembly. Mounted on Festo solenoid coils by M2.5 central screw. It is a common electrical accessory for pneumatic solenoid valves, reliable for wiring connection in automation pneumatic systems.

Item	Specification
Brand	Festo
Model	MSSD-EB-M12
Part Number	539712
Type	Solenoid valve socket
Series	MSSD
Standard	EN175301-803 Type C
Pin	3 pins
Rated Current	6A @40℃
Voltage Range	DC 0~300V / AC 0~250V
Cable Gland	M12, 90° rotatable angled outlet
Wire Cross Section	0.5~1.5 mm²
Protection Class	IP67 (assembled)
Ambient Temp	-40 ~ +125 ℃
Weight	11.00 g
Material	PA polyamide housing, NBR seal
Corrosion Class	CRC2
Standard	LABS, RoHS, CE, UKCA
