VACF-A-A1-1
Product Description

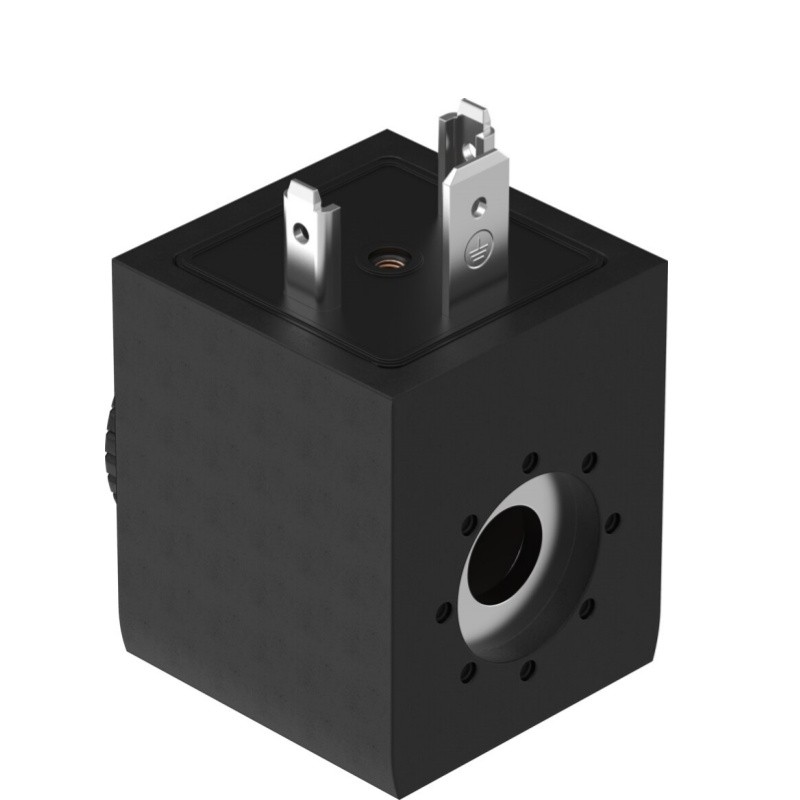

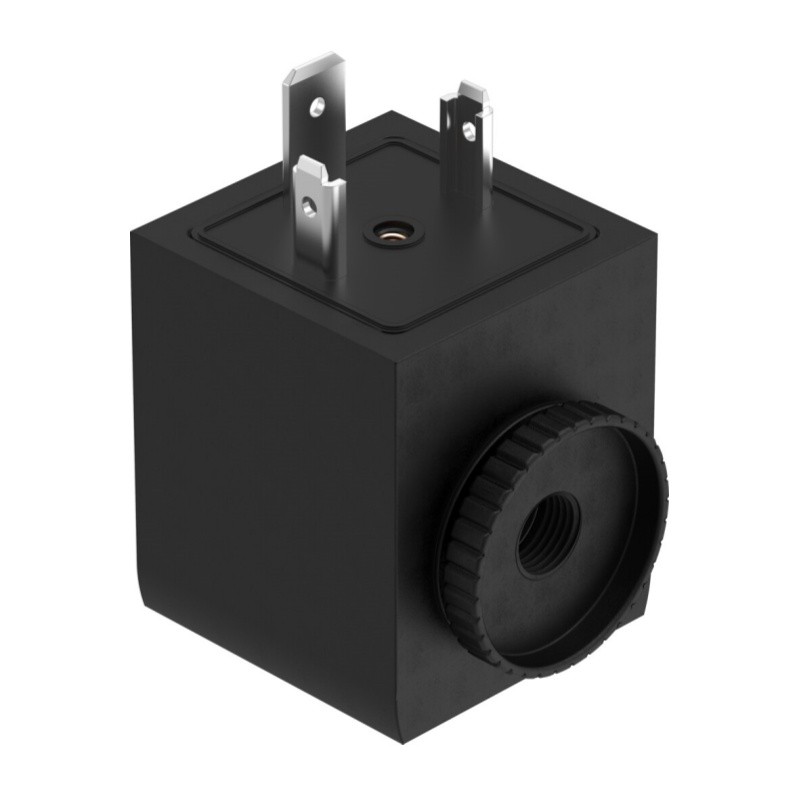

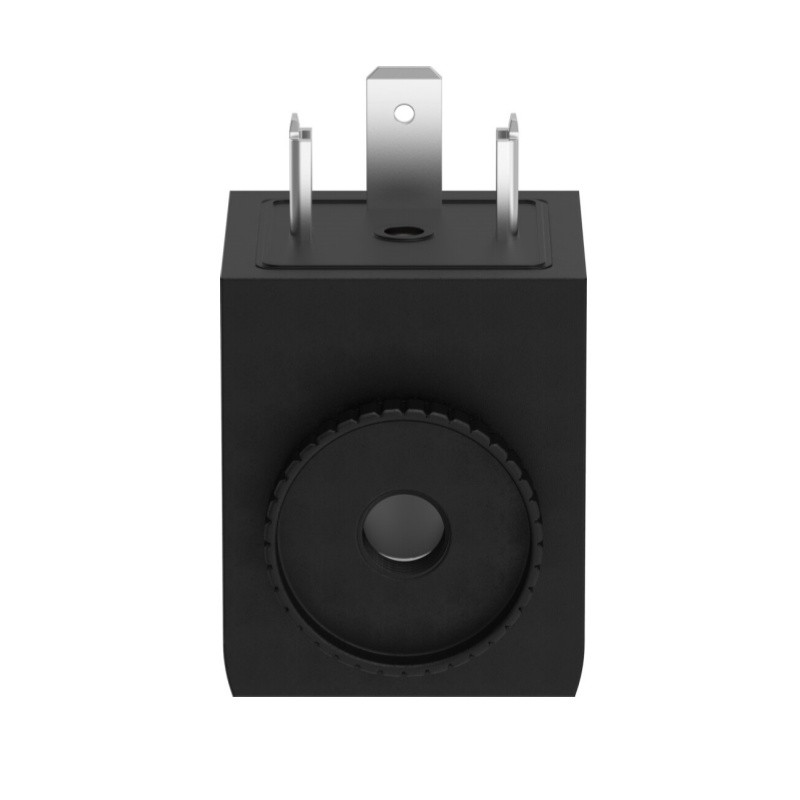

Festo VACF-A-A1-1 (Part No.8030822) is VACF series electromagnetic solenoid coil for VSVA pneumatic solenoid valves. Rated DC24V, power consumption 2.6W, supports 100% continuous duty cycle with Class H insulation.
It adopts EN175301-803 Form A 3-pin electrical interface, installed by knurled nut and can be fitted in any orientation. IP65 protection ensures stable operation in industrial environments. PA polyamide and steel housing with copper winding, LABS PWIS compliant, suitable for long time continuous operation in pneumatic automation systems.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | VACF-A-A1-1 |
| Part Number | 8030822 |
| Type | Solenoid coil |
| Series | VACF |
| Rated Voltage | DC24V |
| Coil Power | 2.6 W |
| Voltage Tolerance | ±10% |
| Duty Cycle | 100% |
| Insulation Class | H |
| Electrical Connection | Form A, EN175301-803, 3 pins |
| Protection Class | IP65 |
| Ambient Temp | -20 ~ +60 ℃ |
| Media Temp | -20 ~ +50 ℃ |
| Weight | 82.60 g |
| Material | PA housing, steel, copper winding |
| Corrosion Class | CRC2 |
| Standard | IEC 61010-1, LABS, RoHS, cULus, CE |
