QSLF-3/8-8-B

属性名称	属性值
Brand	Festo
Model	QSLF-3/8-8-B
Part No	153278
Product Type	L-type Push-in Fitting
Series	QS Series
Fitting Style	90° Elbow L-shape, female thread push-in connector
Port 1	G3/8 Female Thread
Port 2	For tubing OD 8 mm
Nominal Width	6.7 mm
Operating Pressure	-0.095 ~ 1.4 MPa (-0.95 ~14 bar)
Medium	Compressed air ISO 8573-1:2010 [7:-:-], also suitable for water
Ambient Temperature	-10 ~ +80 ℃
Mounting	Any mounting position, hexagon installation
Cleanroom Class	ISO 14644-1 Clas

INQUIRY

Product Details

Product Tags

Product Description

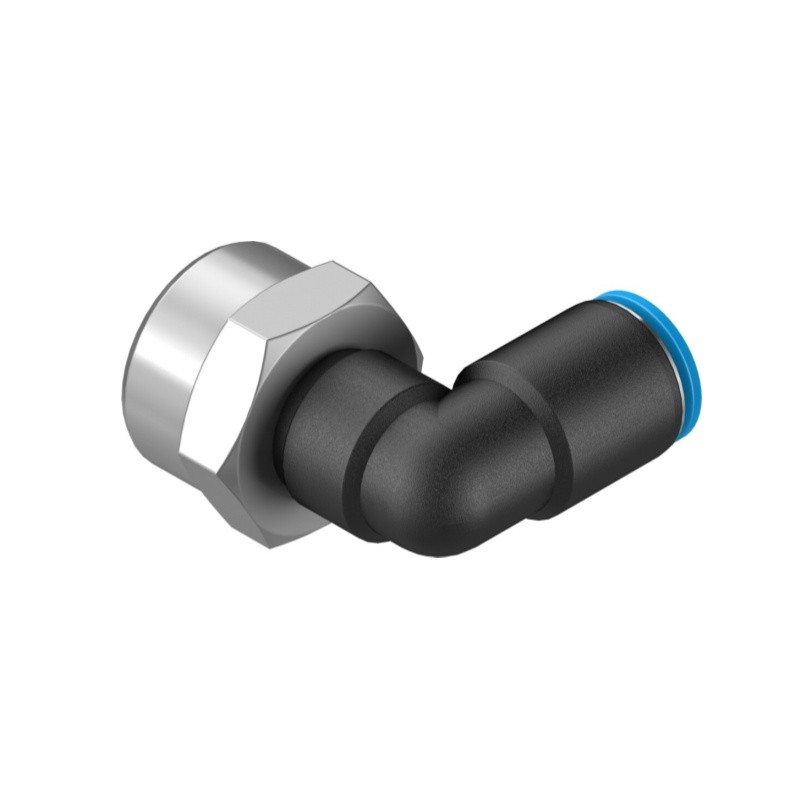

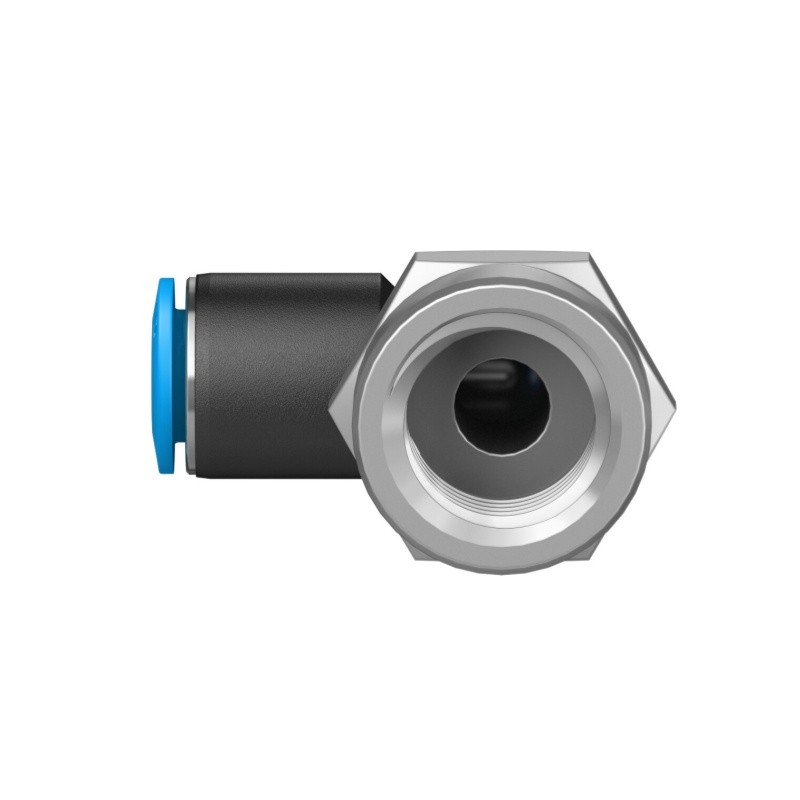

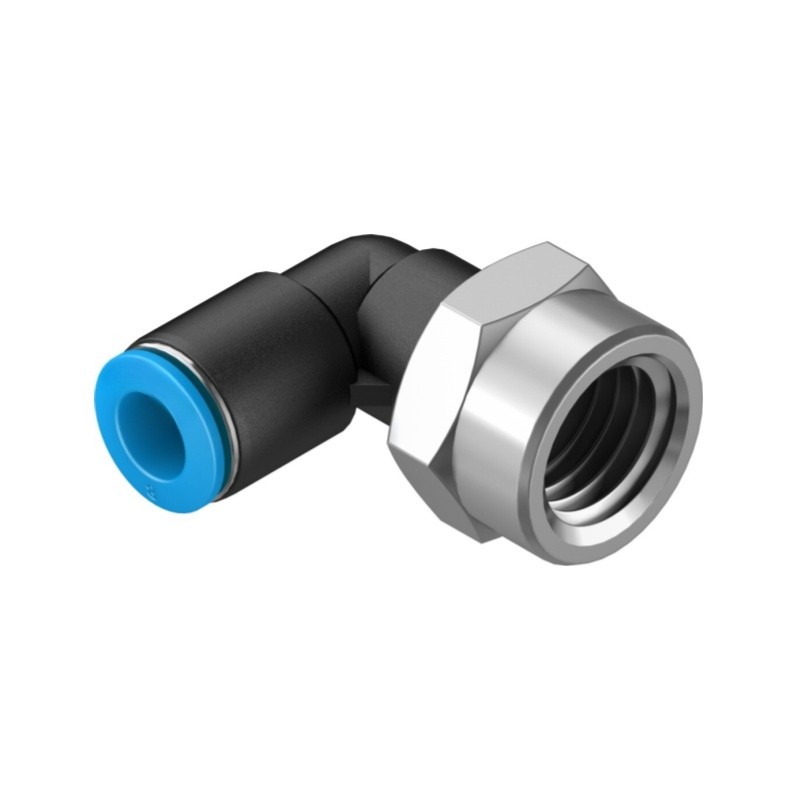

Festo QSLF-3/8-8-B (Part No.153278) is QS series L-shaped push-in pneumatic elbow fitting. It converts G3/8 female thread connection to 8mm OD pneumatic tube with 90° angle change for pipeline layout.

Push-pull quick connect design enables simple tube insertion and release by pressing the blue release ring. It supports vacuum and compressed air, also applicable for water. Certified for ISO Class4 cleanroom environment. PBT plastic body with stainless steel gripping claw ensures reliable tube locking and stable sealing over long service life. It is widely used for building pneumatic circuits in automation and clean production equipment.

Item	Specification
Brand	Festo
Model	QSLF-3/8-8-B
Part Number	153278
Type	L-type push-in elbow fitting
Series	QS
Port 1	G3/8 Female Thread
Port 2	For tubing OD 8 mm
Nominal Width	6.7 mm
Operating Pressure	-0.095 ~1.4 MPa
Medium	Compressed air, water
Ambient Temp	-10 ~ +80 ℃
Weight	33.00 g
Material	PBT housing, POM release ring, NBR seal, stainless steel jaw
Corrosion Class	CRC1
Standard	LABS, RoHS, ISO14644-1 Class4
