CM18-08BNP-TW0 6026194

属性名	属性值
Brand	SICK
Model	CM18-08BNP-TW0
Part No.	6026194
Series	CM
Sensor type	Capacitive proximity sensor
Sensing distance	3 ~ 8 mm
Installation	Flush mount
Output type	NPN, complementary
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	30 Hz
IP rating	IP67
Housing material	PTFE plastic
Operating temperature	-20 ℃ ~ +75 ℃
Feature	270° potentiometer for sensitivity adjustment, chemical resistant housing
W

INQUIRY

Product Details

Product Tags

Product Overview

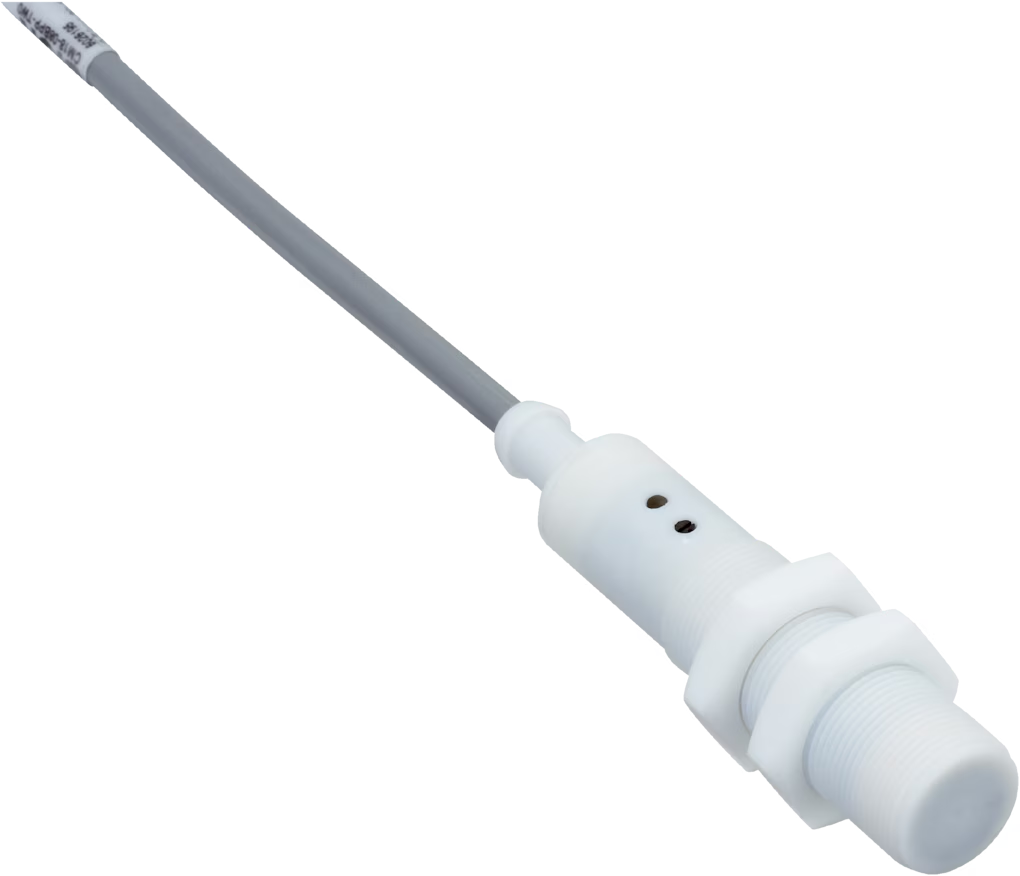

New original SICK CM18-08BNP-TW0 capacitive proximity sensor, PN 6026194, CM series M18 threaded flush mount sensor. Sensing range 3~8mm, complementary NPN output, 10-36VDC power supply. It comes with 2m 4-core PVC cable and IP67 protection grade. Adopts chemical-resistant PTFE housing with 270° potentiometer for sensitivity adjustment. Working temperature -20℃ ~ +75℃. Suitable for corrosive liquid and solid level detection, object counting and position monitoring in chemical and harsh industrial automation systems. We supply genuine SICK sensors with fast delivery and professional after-sales support.

属性名	属性值
Brand	SICK
Model	CM18-08BNP-TW0
Part No.	6026194
Series	CM
Sensor type	Capacitive proximity sensor
Sensing distance	3 ~ 8 mm
Installation	Flush mount
Output type	NPN, complementary
Wiring	DC 4-wire
Connection	2m 4-core PVC cable
Supply voltage	10–36 V DC
Max switching current	200 mA
Switching frequency	30 Hz
IP rating	IP67
Housing material	PTFE plastic
Operating temperature	-20 ℃ ~ +75 ℃
Feature	270° potentiometer for sensitivity adjustment, chemical resistant housing
Weight(net)	0.09 kg
Weight(gross)	0.15 kg
Certificate	RoHS
