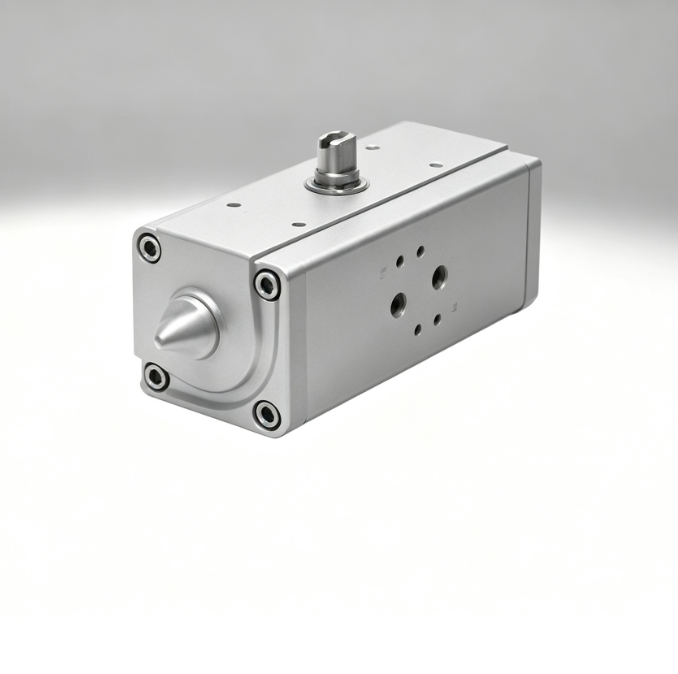

533487 DAPS-0030-090-RS4-F0507
Product Overview
Item No: 533487 Model: DAPS-0030-090-RS4-F0507 Brand: Festo Type: Quarter Turn Pneumatic Actuator

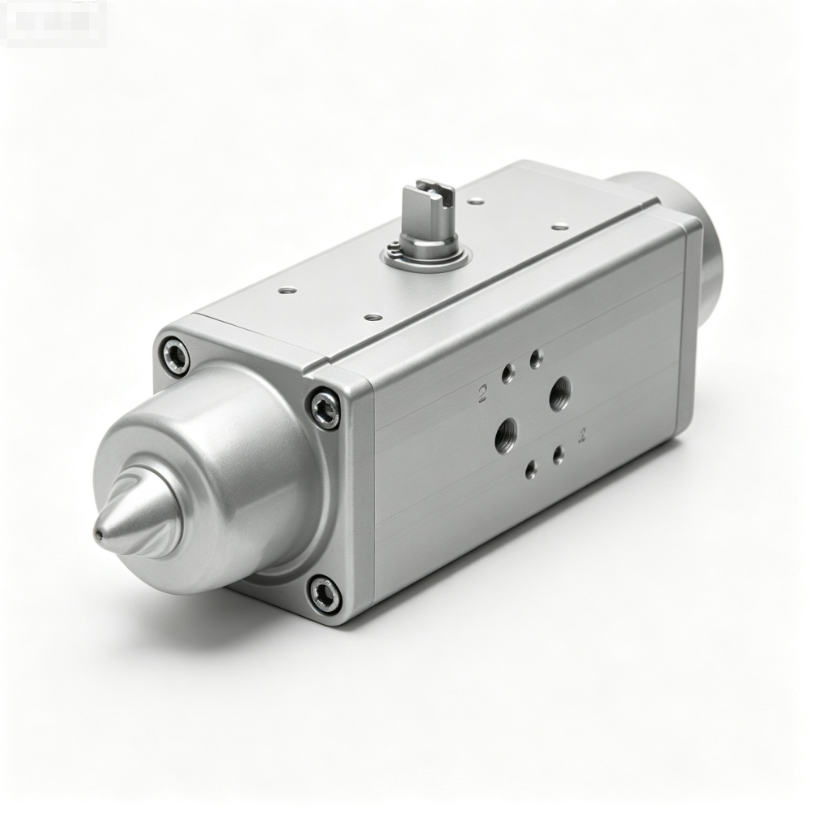

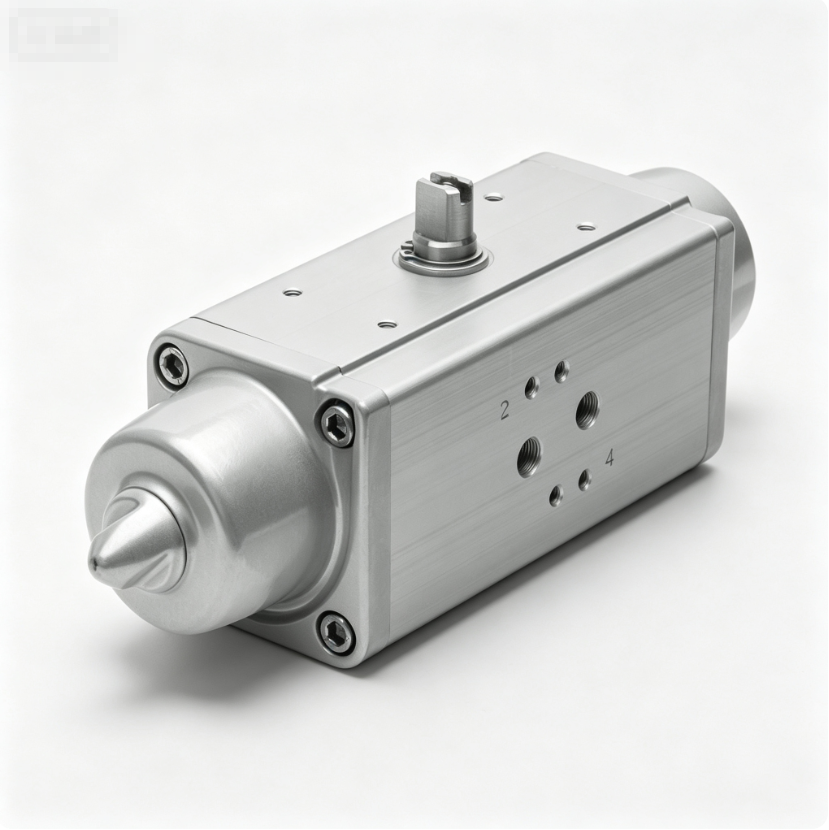

Festo DAPS quarter turn actuator DAPS-0030-090-RS4-F0507 (533487) is single acting spring return rotary drive with 90° rotation angle. Nominal torque 30Nm, ISO5211 F05/F07 flange interface, conforming to VDI/VDE 3845 NAMUR standard. It achieves SIL2 safety integrity level and ATEX explosion-proof certification, suitable for hazardous environments. High corrosion resistance CRC3, ideal for driving ball valves and butterfly valves.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DAPS-0030-090-RS4-F0507 |
| Part No. | 533487 |
| Type | Quarter Turn Actuator / Semi-Rotary Drive |
| Series | DAPS |
| Operation | Single acting (spring return) |
| Nominal Torque | 30 Nm |
| Swivel Angle | 90° |
| Flange Standard | ISO 5211, F05 / F07 |
| Shaft Connection | T14 |
| Pneumatic Port | G1/8 |
| Working Pressure | 0.28 ~ 0.84 MPa (2.8 ~ 8.4 bar) |
| Nominal Pressure | 0.56 MPa (5.6 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -20 ~ +60 ℃ |
| Material | Wrought aluminum alloy housing & cover, high alloy steel shaft, FPM/NBR/PUR seal |
| Feature | SIL2, ATEX explosion proof, clockwise closing, CRC3 high corrosion resistance |
| Mounting | Any mounting position |
| Cushion | No cushioning |
| Weight | 1950 g |
| Condition | New Original |
