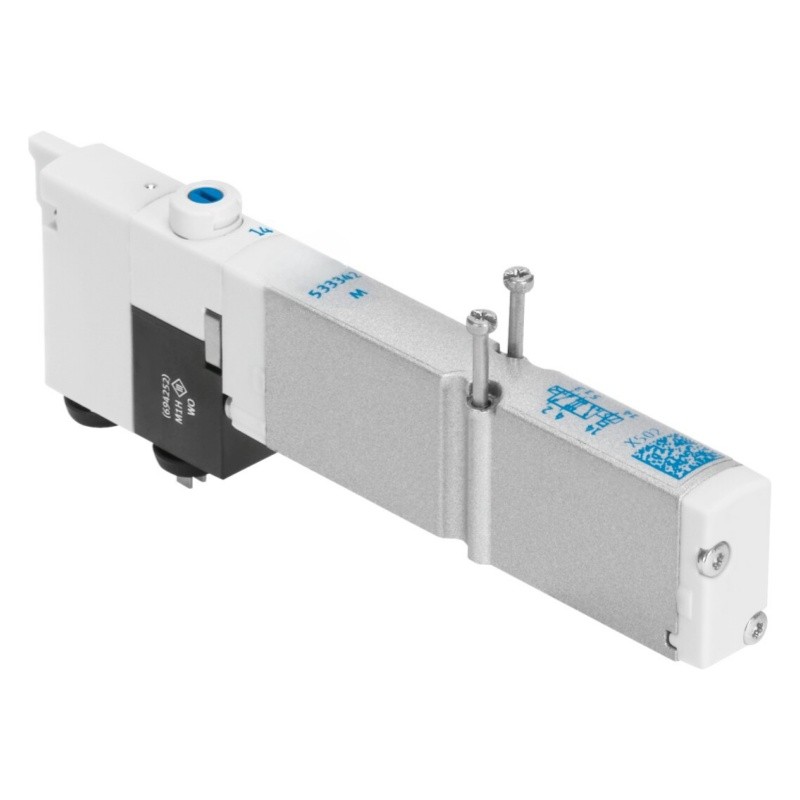

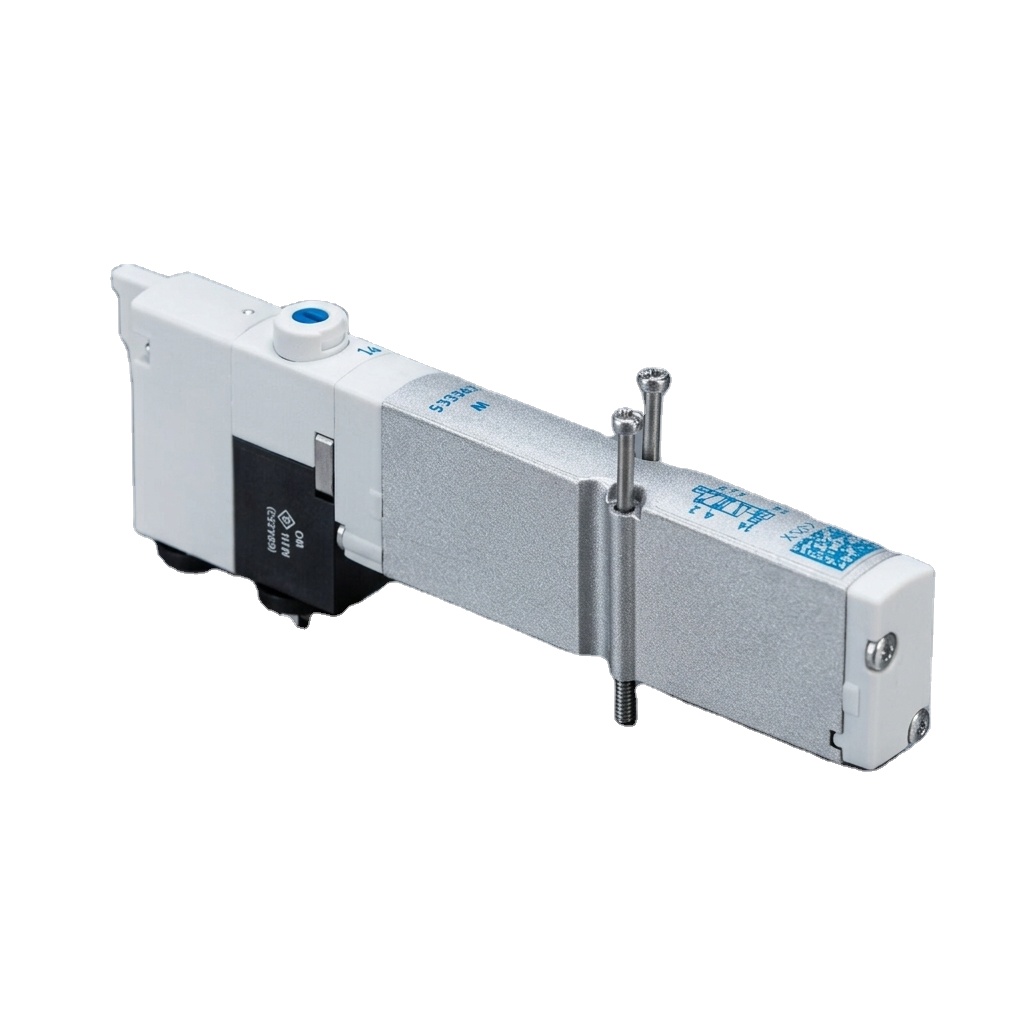

VMPA1-M1H-M-PI
Product Overview
VMPA1-M1H-M-PI, Part No.533342, belongs to Festo VMPA1 series valve terminal plug-in solenoid valve. It is a 5/2-way single solenoid valve with spring return reset. Designed as plug-in cartridge type for VMPA1 valve island manifold. Individual valve can be quickly replaced without removing the whole valve island or disconnecting air piping, convenient for maintenance. Equipped with M5 working ports and low power 0.8W DC24V coil, suitable for driving small pneumatic cylinders and actuators in automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VMPA1-M1H-M-PI |
| Part No. | 533342 |
| Type | Solenoid valve, 5/2-way, single solenoid |
| Valve function | 5/2 single solenoid, spring return |
| Pneumatic port | PI: M5 working ports |
| Nominal flow rate | 350 l/min |
| Operating pressure | 0.2 ~ 8 bar |
| Coil voltage | DC24V |
| Power consumption | 0.8W |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | -10 ~ 50 ℃ |
| Protection class | IP65 (when assembled on valve terminal) |
| Material | Valve body: PPS, Seal: NBR |
| Weight | 32.00 g |
| Feature | For VMPA1 valve island, plug-in single valve, M5 air ports, low power coil, quick replacement without dismounting manifold |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | CE |
