1045673 MPS-128TSTU0
Product Overview

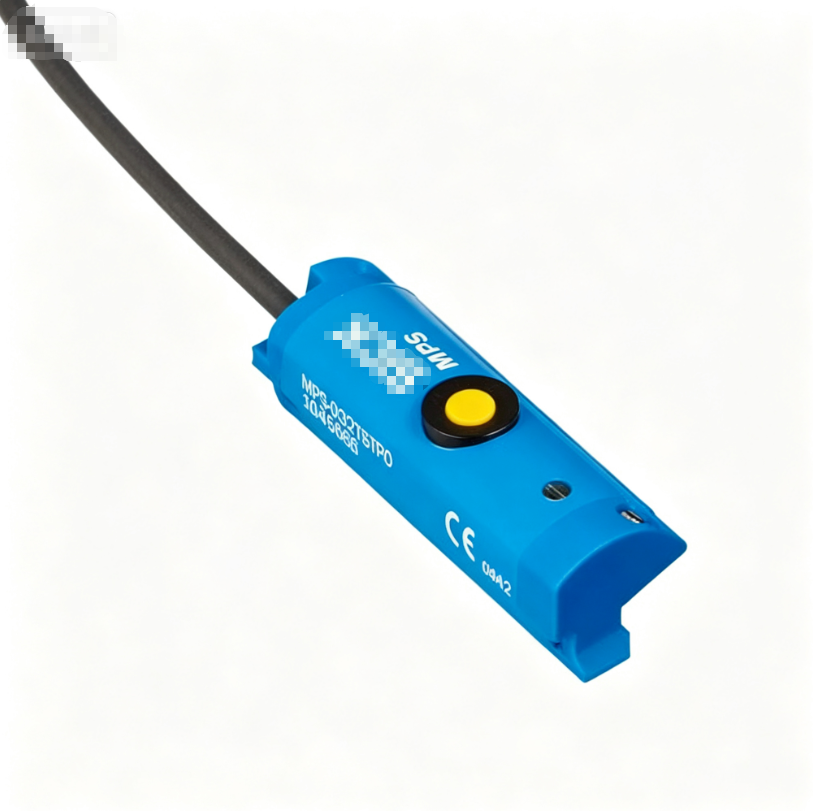

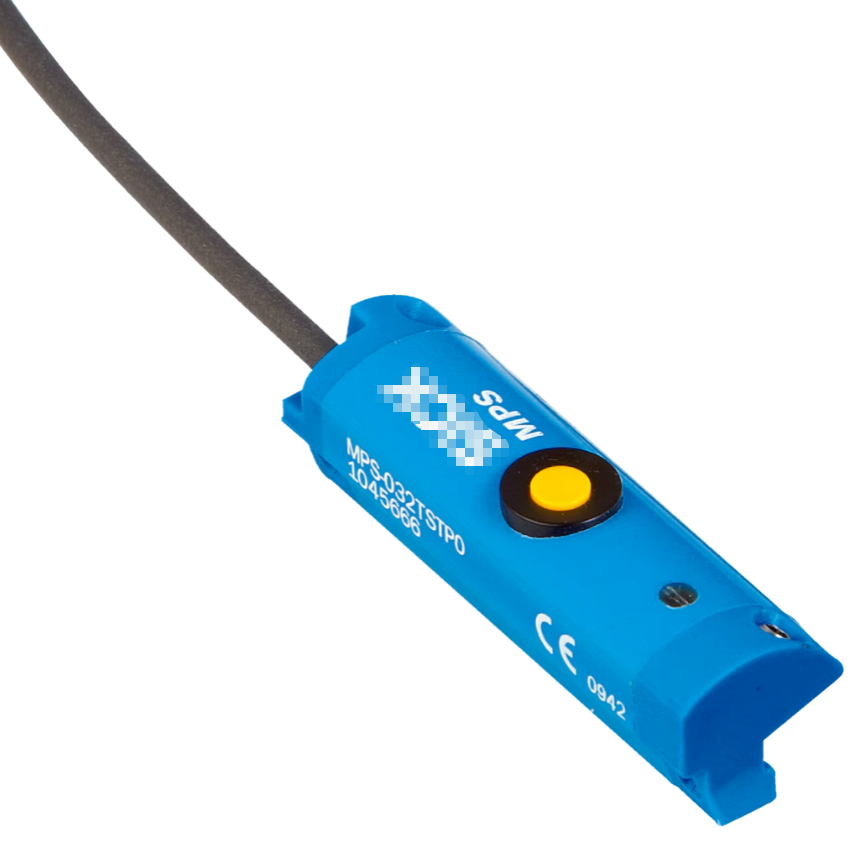

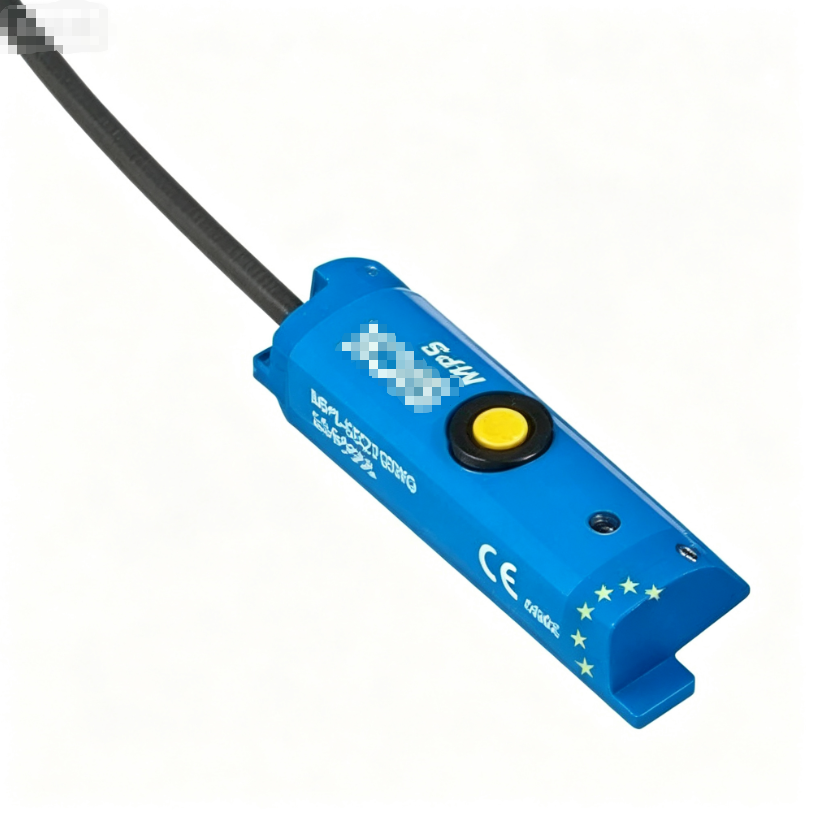

MPS-128TSTU0 (Part No.1045673) is a T-slot mounting magnetostrictive analog cylinder position sensor of SICK MPS-T series. It is designed for continuous piston position measurement of pneumatic cylinders, measuring range reaches 128 mm (±1 mm). It features Teach-in function and supports selectable analog output: 0~10V or 4~20mA, operating voltage DC15~30 V, fitted with 2m integrated cable without connector. The plastic housing adopts T-slot groove mounting design with IP67 protection class. It has built-in reverse polarity protection, high linearity and LED working status indicator. Compatible with profile, tie-rod and round pneumatic cylinders. Brand new original SICK cylinder position sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | MPS-128TSTU0 |
| Part No. | 1045673 |
| Product Type | Cylinder Position Sensor |
| Series | MPS-T |
| Detection principle | Magnetostrictive analog position measurement for pneumatic cylinder piston |
| Measuring Range | 128 mm (±1mm) |
| Adjustment | Teach-in setting, reset to factory range |
| Output | Analog signal:0~10V /4~20mA(selectable), DC 4-wire |
| Supply Voltage | DC15 ~ 30 V |
| Cable | 2m integrated cable, no connector |
| Housing | T-slot groove mounting plastic housing, length 141mm |
| Protection Class | IP67 |
| Special Feature | T-slot installation, teach-in function, high linearity, support profile/tie-rod/round air cylinder, reverse polarity protection, LED status indicator |
| Condition | New Original |
| Application | Pneumatic cylinder piston continuous position measurement, packaging machinery, printing equipment, conveyor systems, automated production lines |
| Net Weight | 0.040 KG |
| Gross Weight | 0.072 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
