1040968 IME18-08BPSZW2S
Product Overview

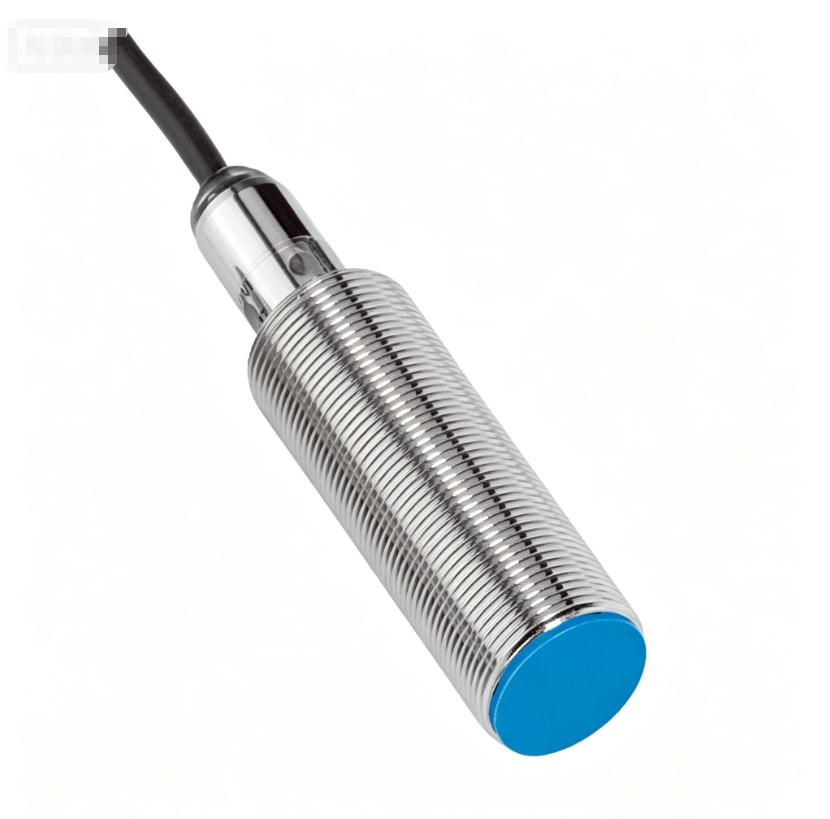

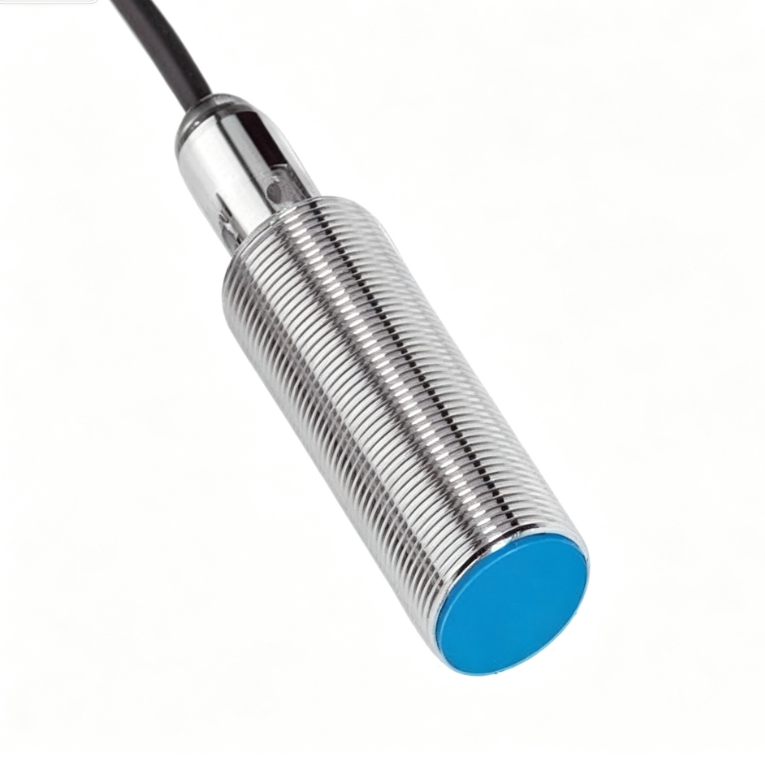

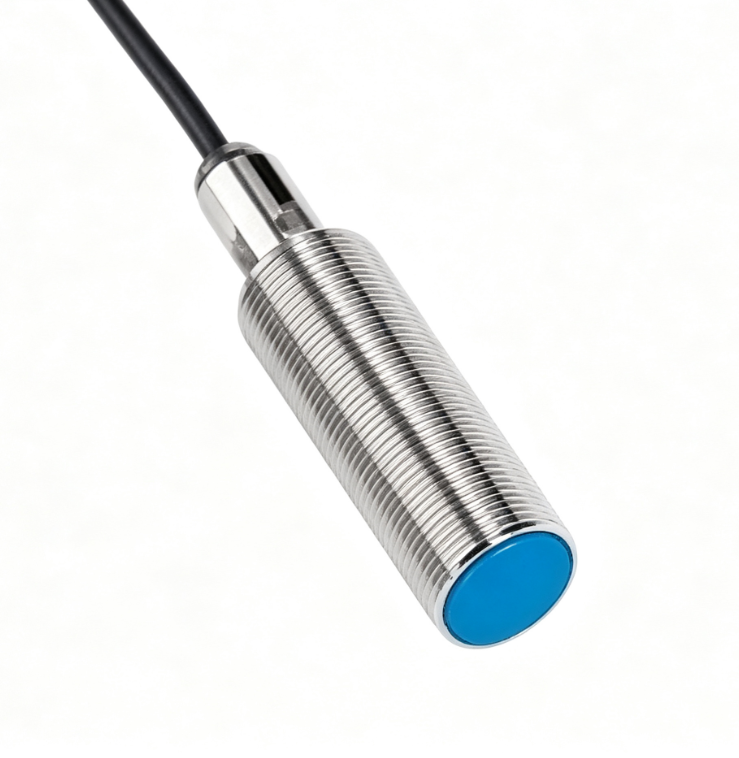

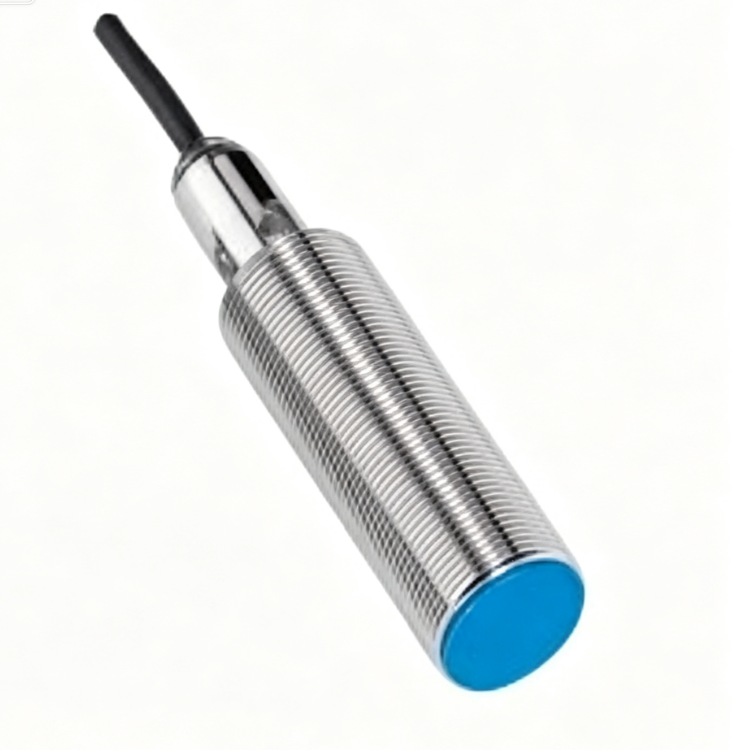

IME18-08BPSZW2S (Part No.1040968) is a M18 cylindrical inductive proximity sensor of SICK IME18 series, with flush mounting design, diameter Ø18 mm, rated sensing distance Sn=8 mm. It provides PNP Normally Open DC 3-wire output, operating voltage DC10~30 V, equipped with 2m PVC 3-wire cable. The nickel-plated brass housing has IP67 protection class. It integrates short-circuit and reverse polarity protection, with hysteresis 5~15% and repeat accuracy ≤2%. Short housing design, and the package includes 2 pieces of mounting nuts. It is used for non-contact metal detection, widely applied in machine tools, automation machinery and conveyor systems. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IME18-08BPSZW2S |
| Part No. | 1040968 |
| Product Type | Inductive Proximity Sensor |
| Series | IME18 / IME |
| Detection principle | Inductive metal detection |
| Size | M18 cylindrical housing, Ø18mm |
| Mounting type | Flush mounting |
| Rated sensing distance Sn | 8 mm |
| Safe sensing distance Sa | 6.48 mm |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | DC10 ~ 30 V |
| Connection | 2m PVC cable, 3-wire |
| Housing Material | Nickel-plated brass |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Special Feature | Flush mounting, short housing, short-circuit & reverse polarity protection, hysteresis 5~15%, repeat accuracy ≤2%, package includes 2pcs mounting nuts |
| Condition | New Original |
| Application | Metal detection, machine tools, conveyor systems, automation machinery, automated production lines |
| Net Weight | 0.030 KG |
| Gross Weight | 0.060 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
