MHE2-MS1H-5/2-QS-4
Product Overview

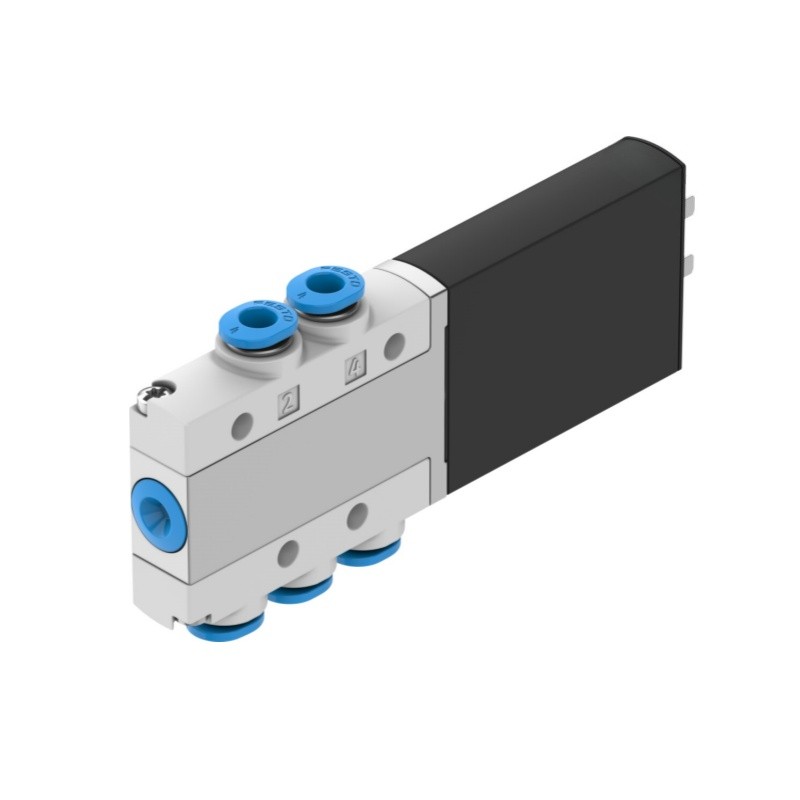

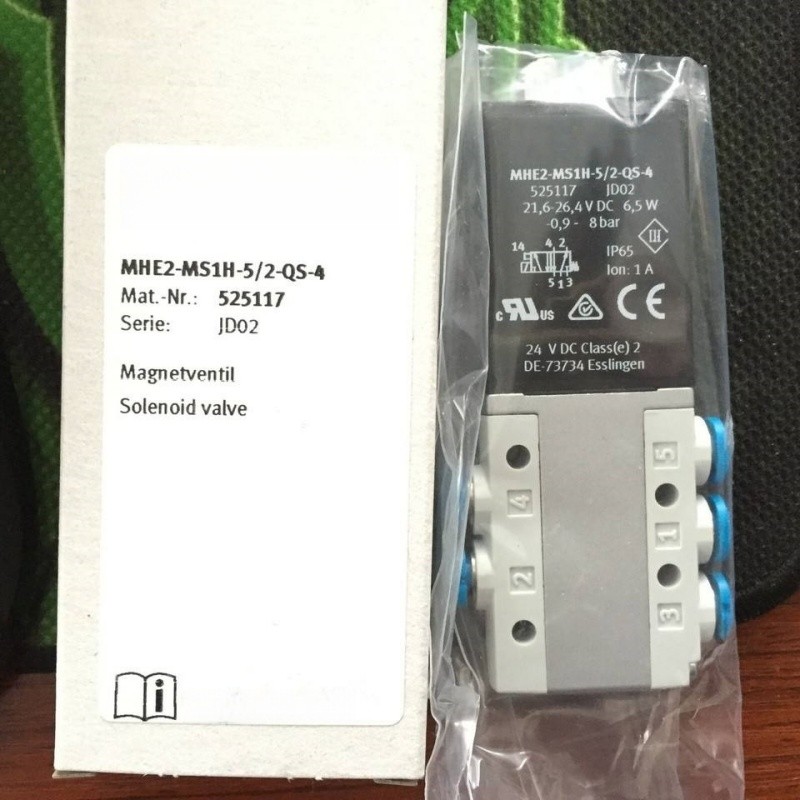

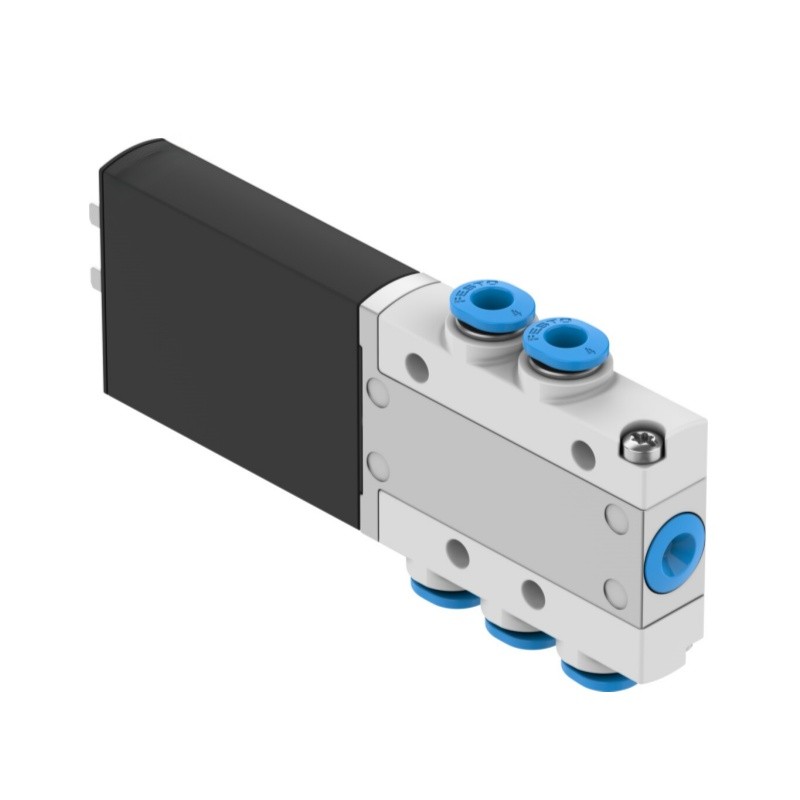

MHE2-MS1H-5/2-QS-4, Part No.525117, belongs to Festo MHE2 series high-speed solenoid valve. It is a 5/2-way monostable poppet valve with spring return. Equipped with QS-4 push-in port for 4mm OD pneumatic tube. Extremely short switching time, ideal for high frequency pneumatic control. Non-detenting manual override for commissioning test. Widely used for high-speed automation pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MHE2-MS1H-5/2-QS-4 |
| Part No. | 525117 |
| Type | 5/2-way monostable fast switching solenoid valve |
| Valve function | 5/2 way, monostable, spring return |
| Pneumatic port | QS-4 push-in fitting for 4mm tube OD |
| Nominal flow rate | 90 l/min |
| Nominal width | 2 mm |
| Working medium | Filtered compressed air, lubricated / unlubricated |
| Working pressure | -0.9 ~ 8 bar |
| Voltage | 24 VDC |
| Power consumption | 6.5W peak /1.625W holding |
| Temperature range | -5 ~ 60 ℃ |
| Protection class | IP65 |
| Switching time | ON:1.9ms, OFF:1.7ms |
| Weight | 60.00 g |
| Feature | Fast response, non-detenting manual override, poppet valve design |
| Corrosion resistance class | CRC1 |
| RoHS | Compliant |
| Certification | CE, c UL us Recognized |
