QS-1/2-10
Product Overview

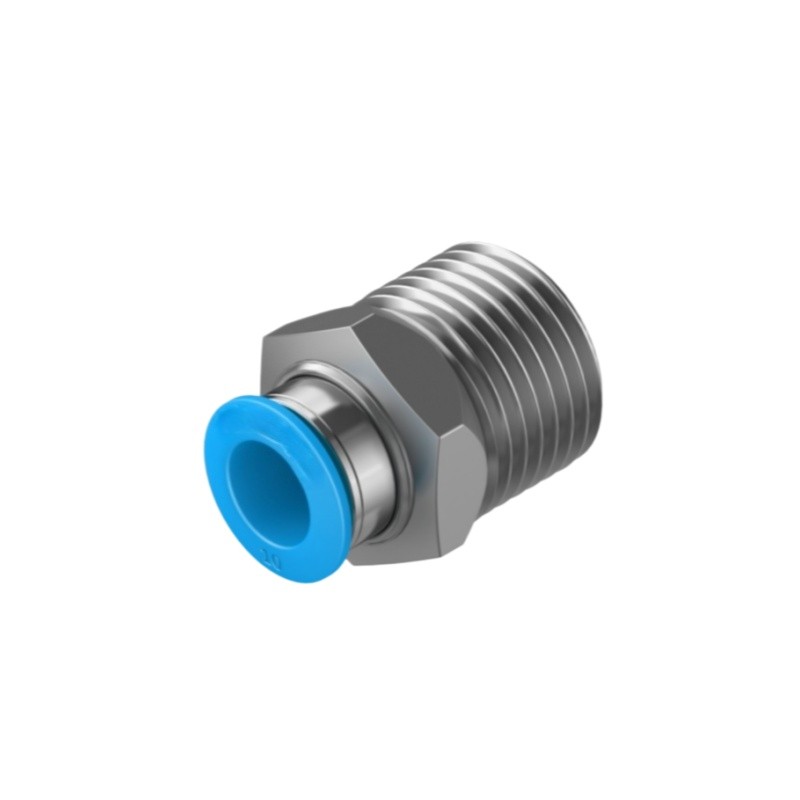

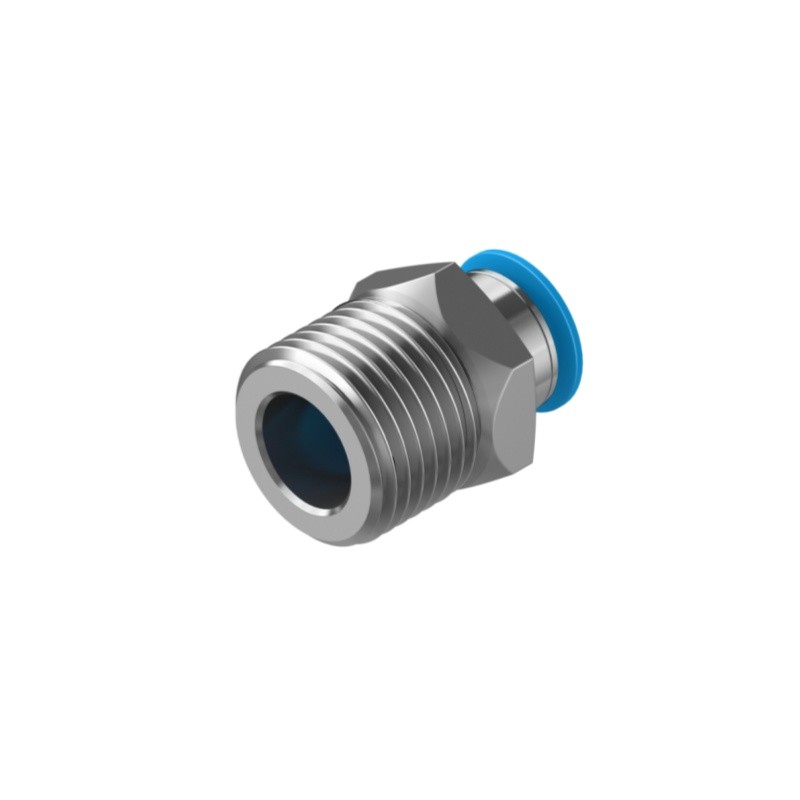

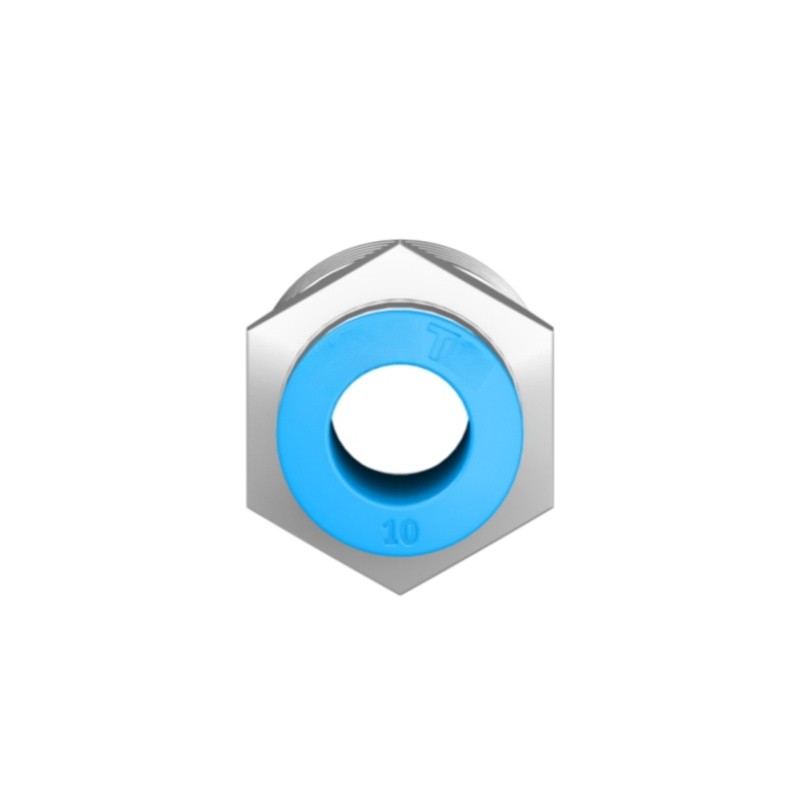

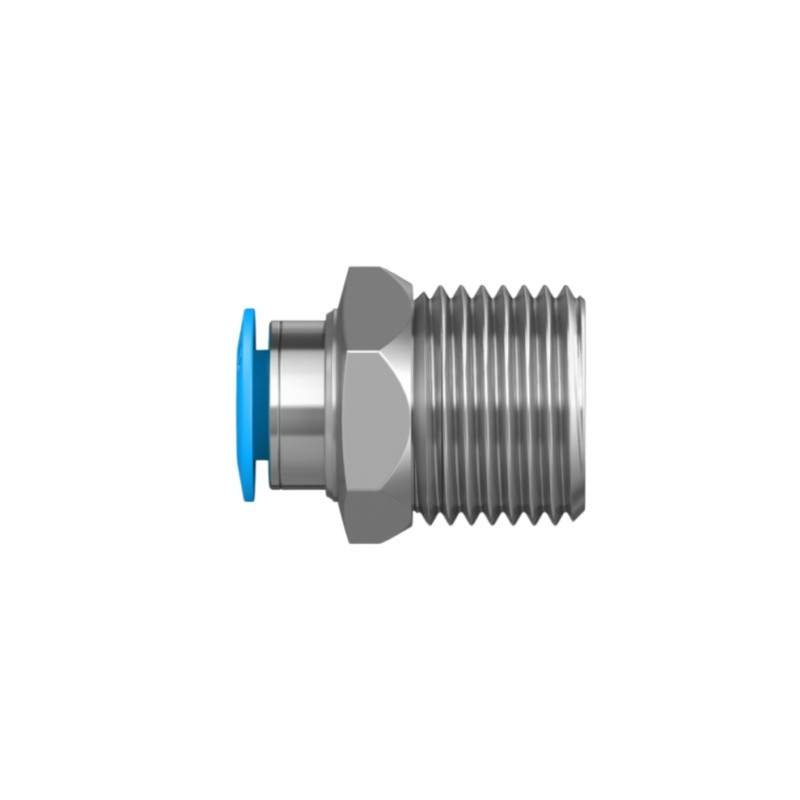

QS-1/2-10, Part No.153011, is Festo QS series straight push-in fitting. Adopts push-pull connection principle, R1/2 taper male thread connects to 10mm OD pneumatic tube. With external hexagon SW22 for easy tightening. Original Festo pneumatic fitting, good sealing performance, easy tube insertion and removal, widely used in compressed air circuits of automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-1/2-10 |
| Part No. | 153011 |
| Type | Straight push-in fitting |
| Thread | R1/2 male taper thread |
| Tube OD | 10 mm |
| Nominal bore | 8.5 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 36.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull principle,external hexagon SW22 |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
