ISD 400 7211
Product Overview

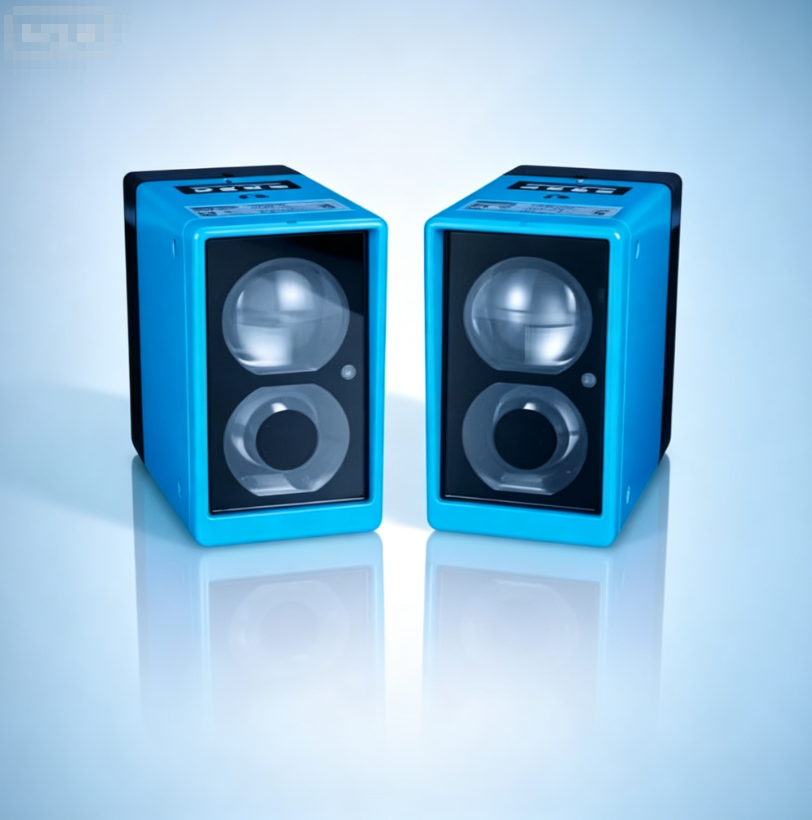

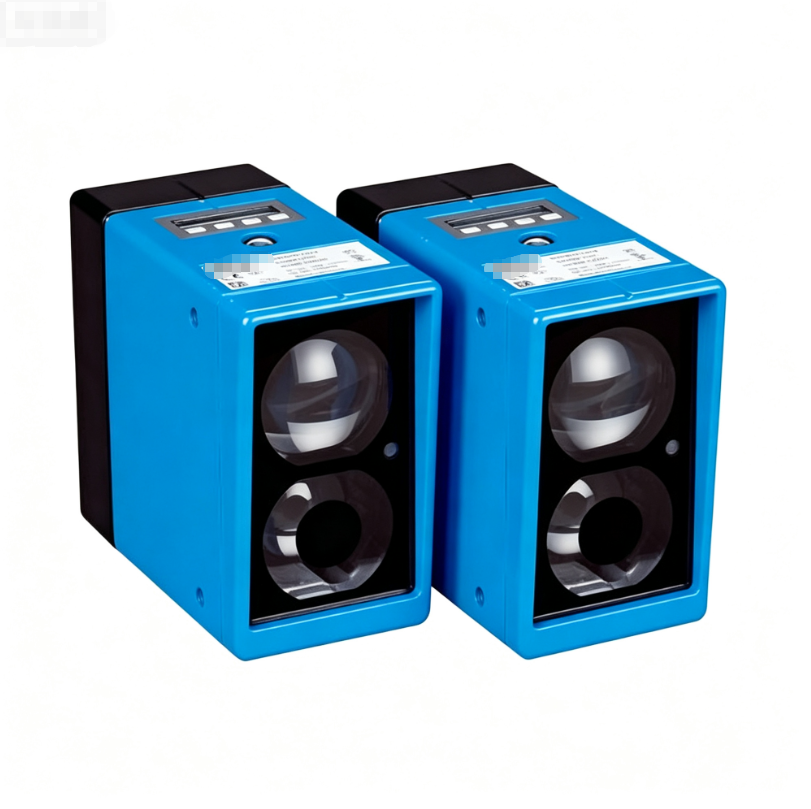

SICK ISD400-7211 (Part No.1065100) belongs to ISD400 Pro optical data transmission system. It is a laser optical Ethernet transceiver, which realizes 100Mbps long-distance point-to-point Ethernet communication without fiber cable. Transmission range 0.2~150 meters, red laser 660nm Class1M. Equipped with M12 D-coded Ethernet port and M12 A-coded power connector. Aluminum alloy housing IP65, suitable for harsh factory environment. DC18~30V power supply, low power consumption ≤3.6W without load. One digital input for laser disable and one PNP diagnostic output for status monitoring. This unit is widely used for overhead crane, moving trolley and other mobile equipment to replace sliding contact line or fiber cable.
| Attribute Name | Value |
|---|---|
| Brand | SICK |
| Model | ISD400-7211 |
| Part No. | 1065100 |
| Series | ISD400 Pro Optical Data Transmission |
| Type | Laser Optical Ethernet Transceiver |
| Transmission Range | 0.2m ~ 150m |
| Light Source | Red Laser 660nm, Laser Class 1M |
| Interface | Ethernet 100 Mbit/s, M12 4-pin D-coded |
| Power Supply | DC18~30V, Power consumption ≤3.6W (no load) |
| Connector | M12 4-pin A-coded power; M12 D-coded Ethernet |
| Housing Material | AlSi12 Aluminum Alloy |
| Protection Class | IP65 |
| Operating Temp | -20℃ ~ +55℃ |
| Relative Humidity | 90%, non-condensing |
| Aperture Angle | 1° transmitter,1.5° receiver |
| IO | 1 digital input (laser disable);1 PNP diagnostic output |
| Net Weight | 0.80kg |
| Gross Weight | 1.00kg |
| Origin | Germany |
| Warranty | 1 year |
| Condition | New Original |
| Application | Overhead crane, trolley, moving vehicle, long-distance industrial Ethernet without fiber cable, factory automation |
