YG2A14-050UB3XLEAX

属性名称	属性值
Brand	SICK
Model	YG2A14-050UB3XLEAX
Order No.	2094866
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Right Angle, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.25 mm²
Cable Length	5 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Te

INQUIRY

Product Details

Product Tags

Product Overview

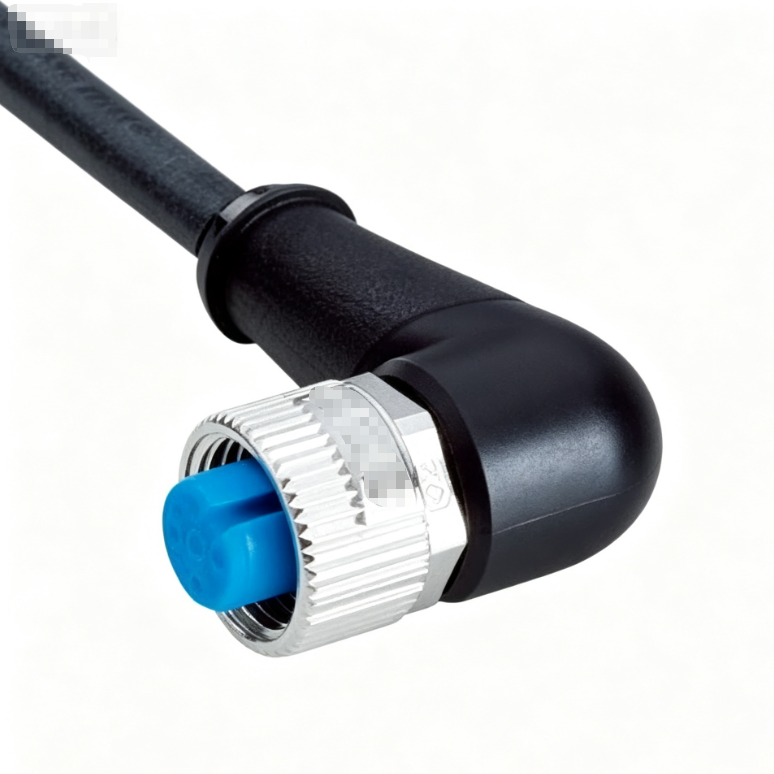

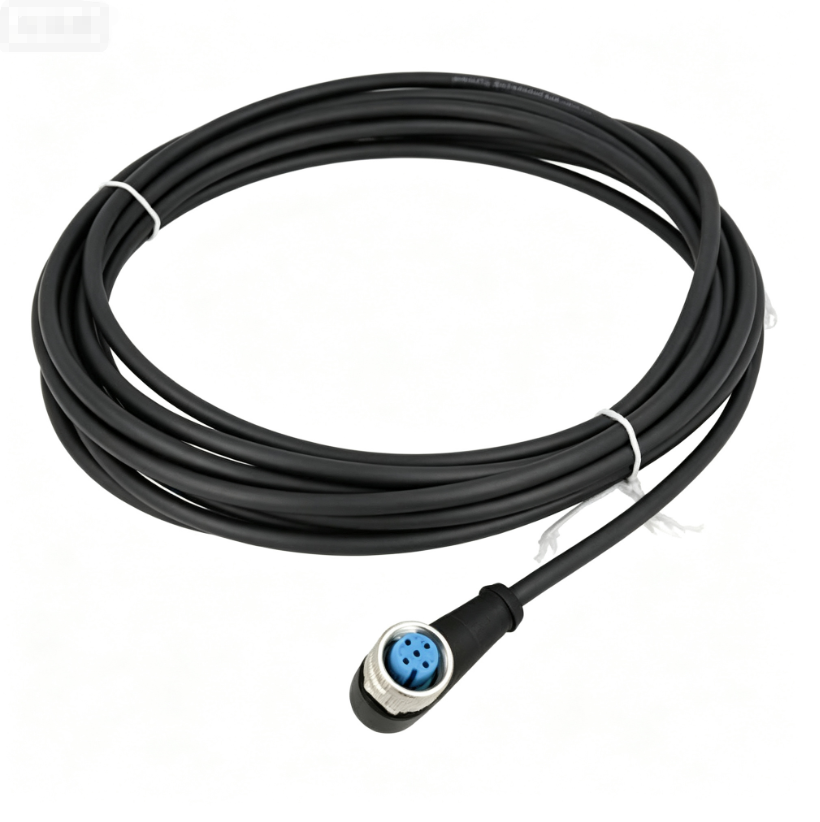

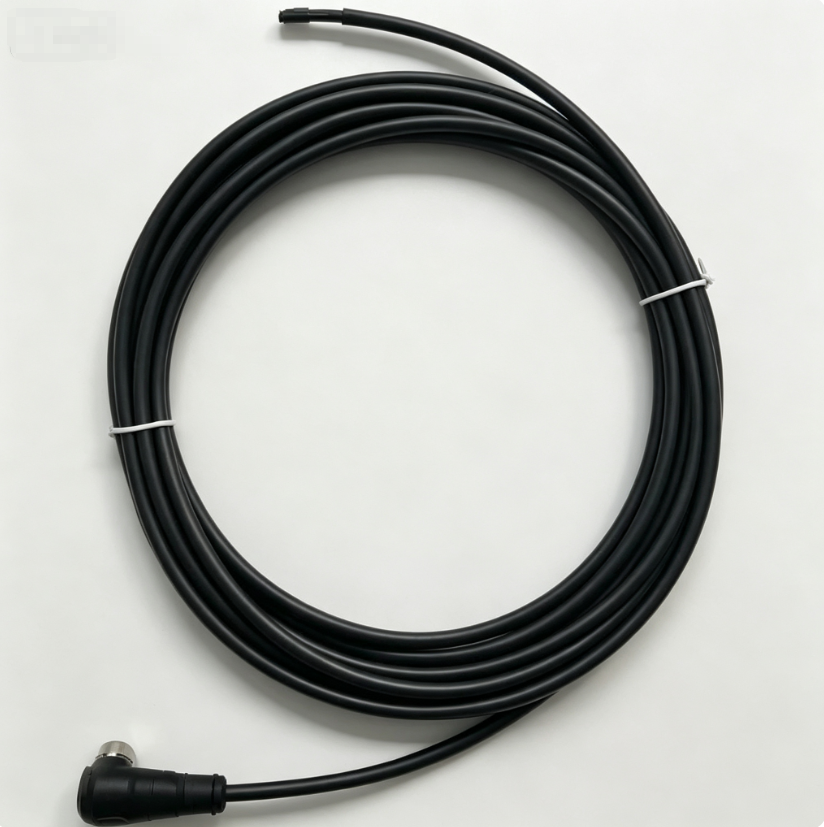

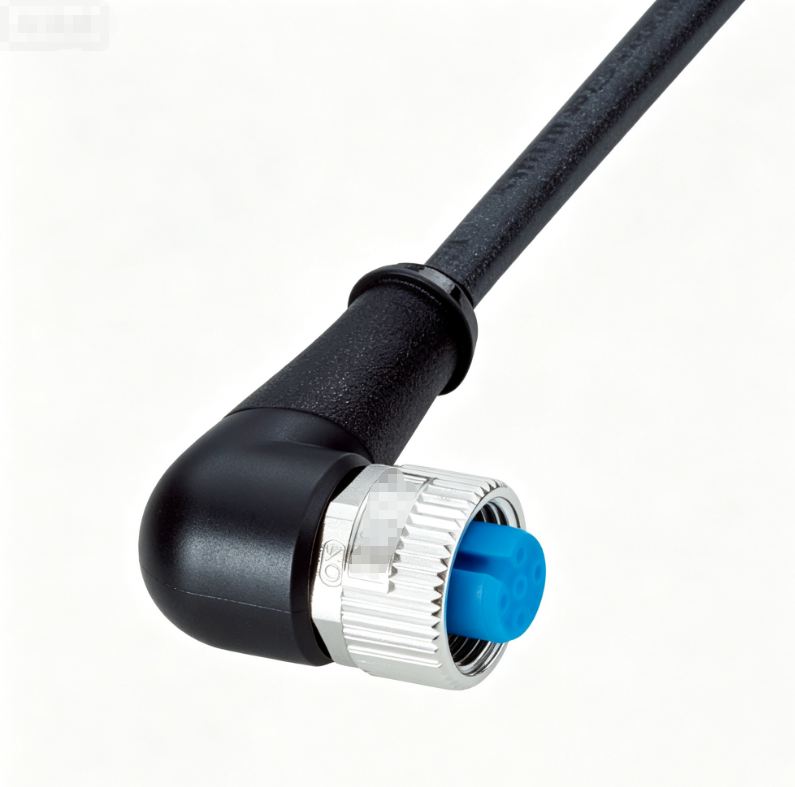

YG2A14-050UB3XLEAX (Part No.2094866) is SICK M12 sensor actuator cable. It adopts 4-pin A-coded right angle female connector, cable length 5 meters. This cable uses halogen-free PUR jacket, unshielded structure, oil resistant and suitable for drag chain wiring. IP67 protection ensures reliable signal transmission for sensors and actuators in automated machinery and production systems.

属性名称	属性值
Brand	SICK
Model	YG2A14-050UB3XLEAX
Order No.	2094866
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Right Angle, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.25 mm²
Cable Length	5 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃, Drag chain: -25℃~+80℃, Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.14 KG
Net Weight	0.12 KG
Place of Origin	Germany
