525113 MHE2-MS1H-5/2-M7
Product Overview
Item No: 525113 Model: MHE2-MS1H-5/2-M7 Brand: Festo Type: Miniature High Speed Solenoid Valve

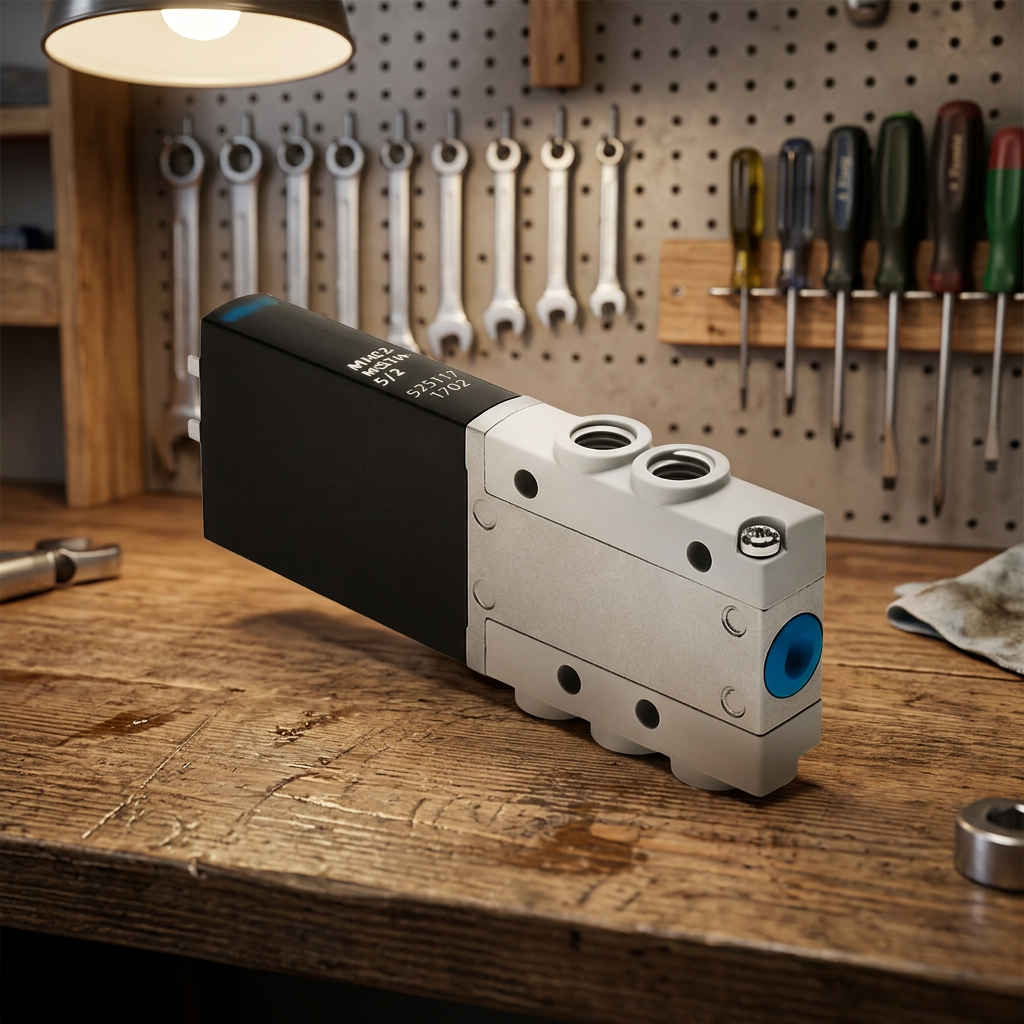

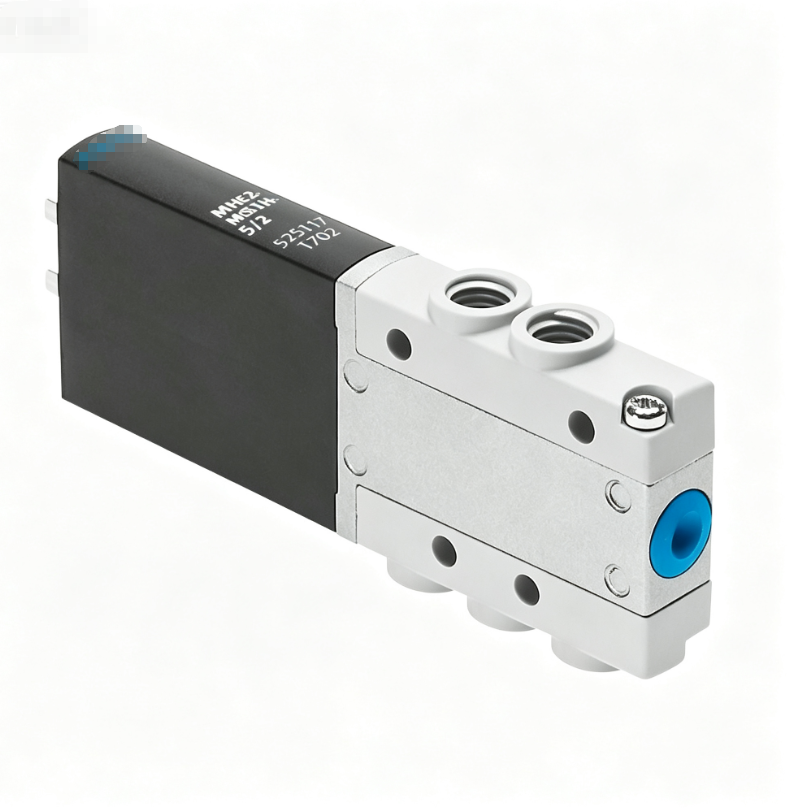

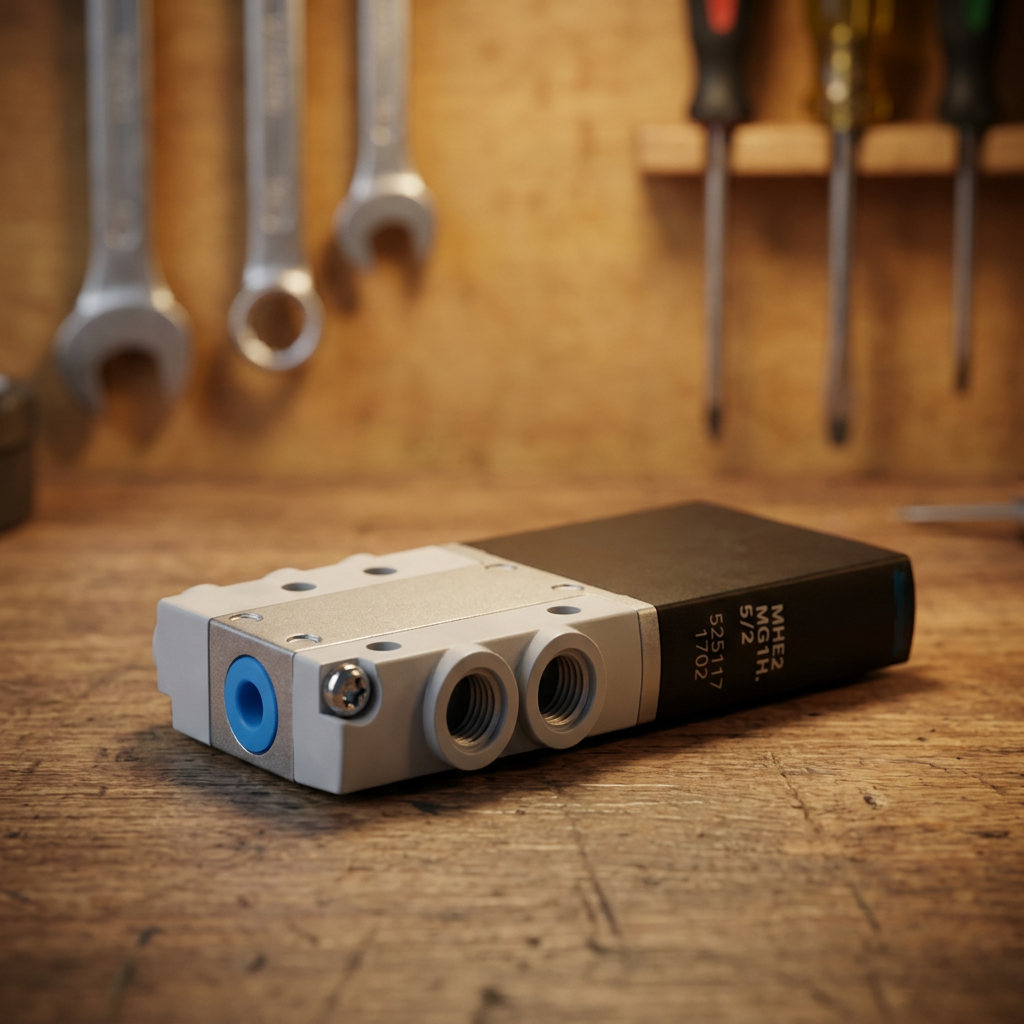

Festo MHE2-MS1H-5/2-M7 miniature solenoid valve (525113) belongs to MHE2 compact high-speed valve series. It is a 5/2-way single-coil spring return direct acting valve. M7 threaded air port, ultra-fast switching speed less than 10ms, suitable for high frequency short-stroke pneumatic actuator control. Compact body saves installation space for small handling modules and test equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MHE2-MS1H-5/2-M7 |
| Part No. | 525113 |
| Type | Miniature Solenoid Valve |
| Series | MHE2 |
| Valve Function | 5/2-way, monostable, spring return |
| Operating Voltage | DC24V |
| Pneumatic Port | M7 |
| Working Pressure | 0.2 ~ 0.8 MPa (2 ~ 8 bar) |
| Nominal Flow | 100 l/min |
| Switching Time | <10 ms |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +50 ℃ |
| Material | Valve body: PPS; Seals: NBR |
| Feature | High speed compact valve, direct acting, small size, low power consumption |
| Protection Class | IP40 |
| Mounting | Surface mounting or manifold mounting |
| Condition | New Original |
