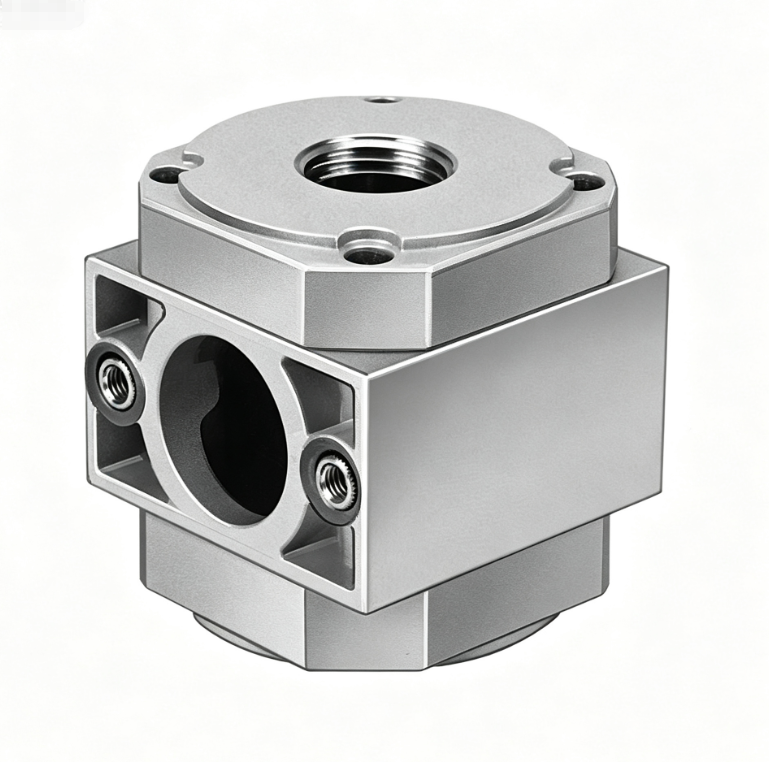

170684 FRM-D-MINI
Product Overview
Item No: 170684 Model: FRM-D-MINI Brand: Festo Type: Modular Pneumatic Branch Module
Festo FRM-D-MINI branch module (170684) belongs to FRM air distribution series, designed for MINI size air service unit system. It is a modular stacked branch component, which separates one independent air branch from the main air circuit. Built-in shut-off function allows maintenance of branch equipment without cutting off the main air supply. It is commonly used together with MINI FRL combination units for multi-station pneumatic equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | FRM-D-MINI |
| Part No. | 170684 |
| Type | Branch Module / Air Distributor Module |
| Series | FRM |
| Size | MINI |
| Port Size | G1/8 |
| Max Operating Pressure | 1.6 MPa (16 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum alloy manifold, PA housing, NBR seals |
| Feature | Modular branch unit, separate on/off for branch circuit, compatible with MINI air service unit |
| Mounting | Modular stack assembly with MINI series FRL |
| Weight | 140 g |
| Condition | New Original |
