7802 MFH-3-1/8
Product Overview

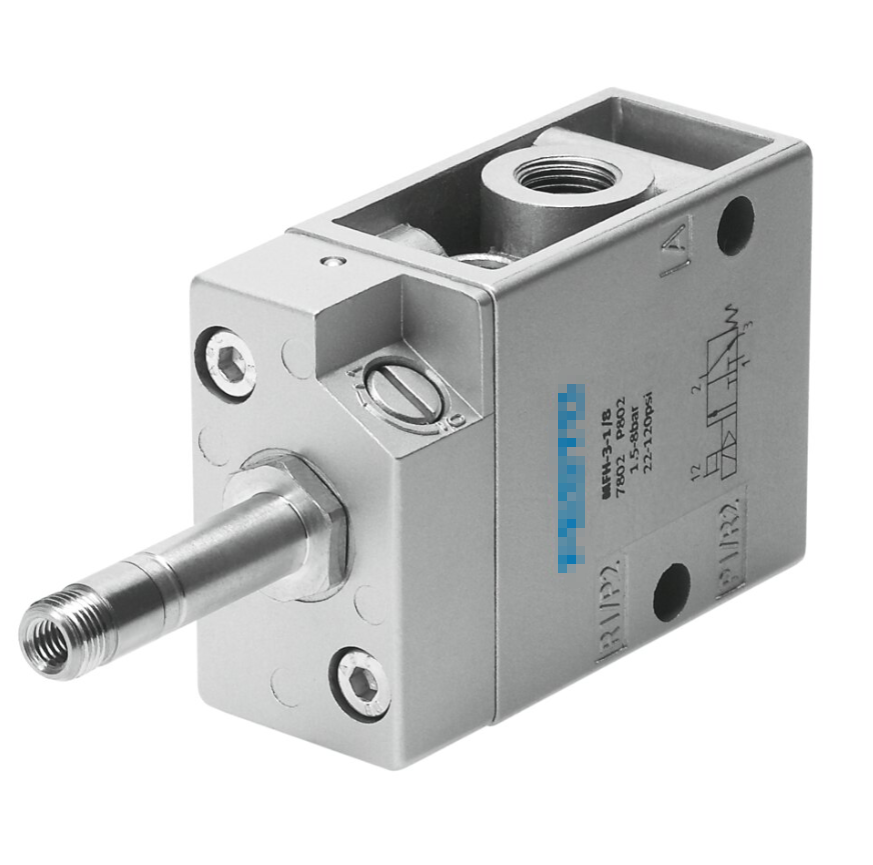

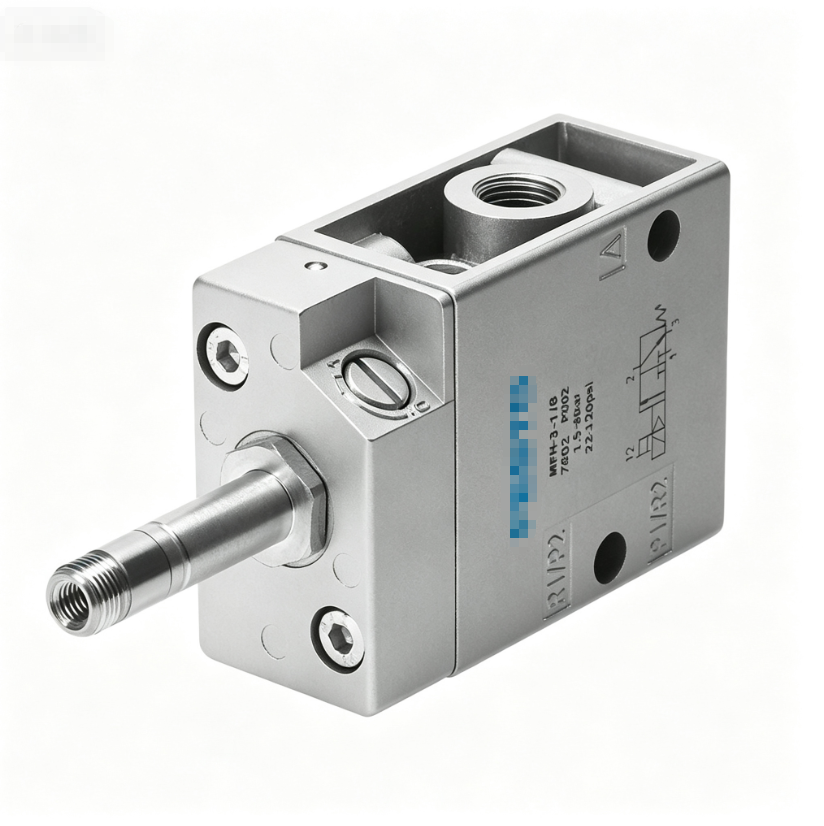

Item No: 7802 Model: MFH-3-1/8 Brand: Festo Type: 3/2-Way Solenoid Directional Valve
Festo MFH-3-1/8 solenoid valve (7802) belongs to classic MFH series. It is a 3/2-way single solenoid spring return directional valve with G1/8 port. Adopts external pilot structure, switches air path when coil energized and automatically resets by spring after power off. Widely used for controlling single-acting cylinders, vacuum circuits and pneumatic signal control in automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MFH-3-1/8 |
| Part No. | 7802 |
| Type | Solenoid Valve |
| Series | MFH |
| Valve Function | 3/2-way, monostable, spring return |
| Port Size | G1/8 |
| Working Pressure | 0.2 ~ 1.0 MPa (2 ~ 10 bar) |
| Nominal Flow Rate | 350 l/min |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum valve body, NBR seals |
| Feature | Solenoid operated, spring reset, external pilot, widely used classic valve |
| Mounting | Surface mounting or manifold base mounting |
| Protection Class | IP65 (with connector) |
| Condition | New Original |
