DFS60B-TEEC01024 1038016
Product Overview

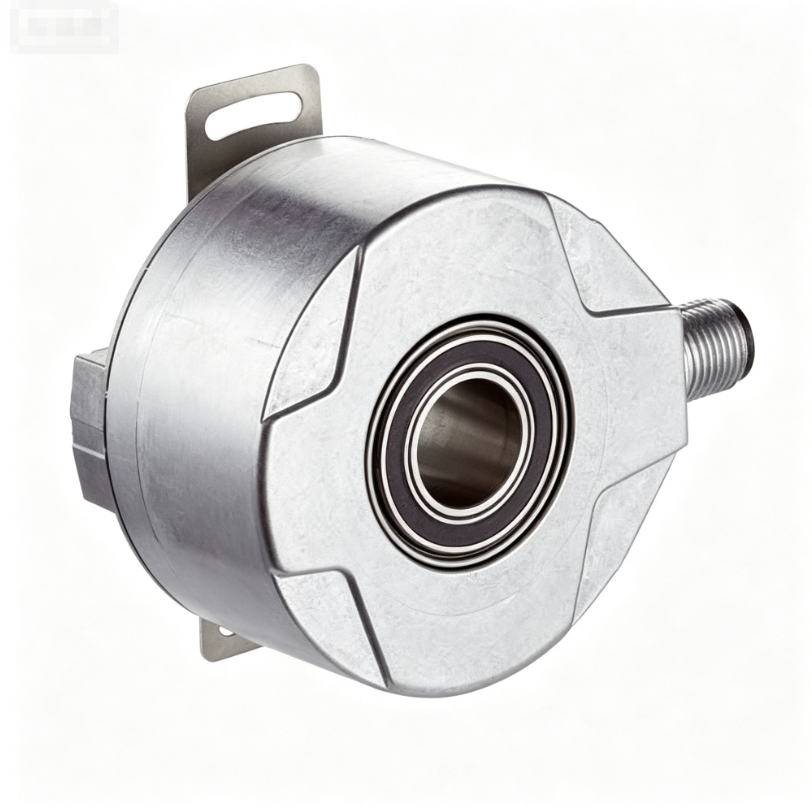

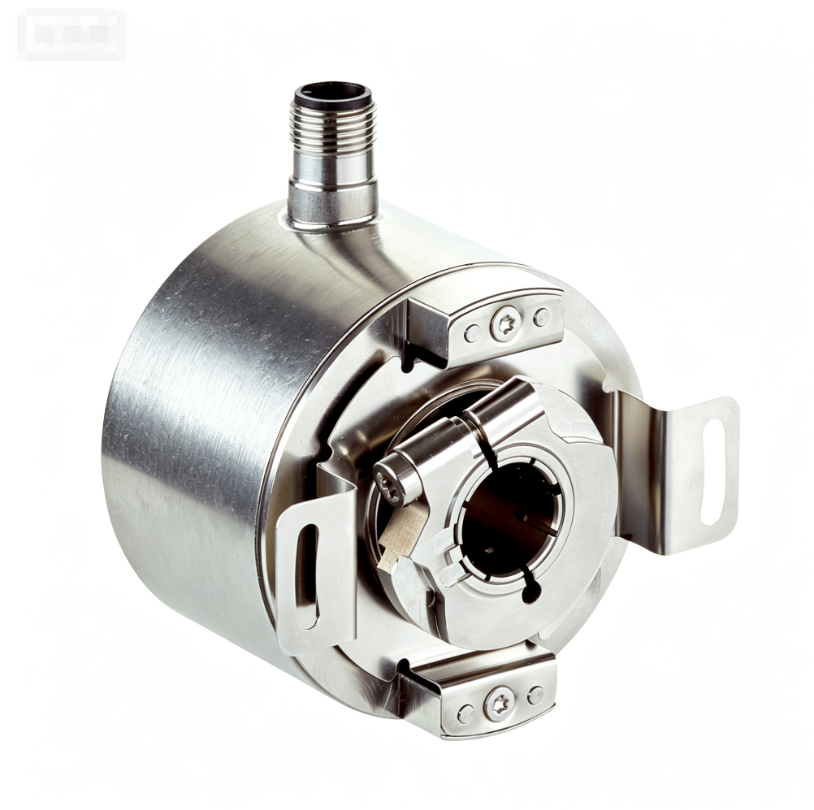

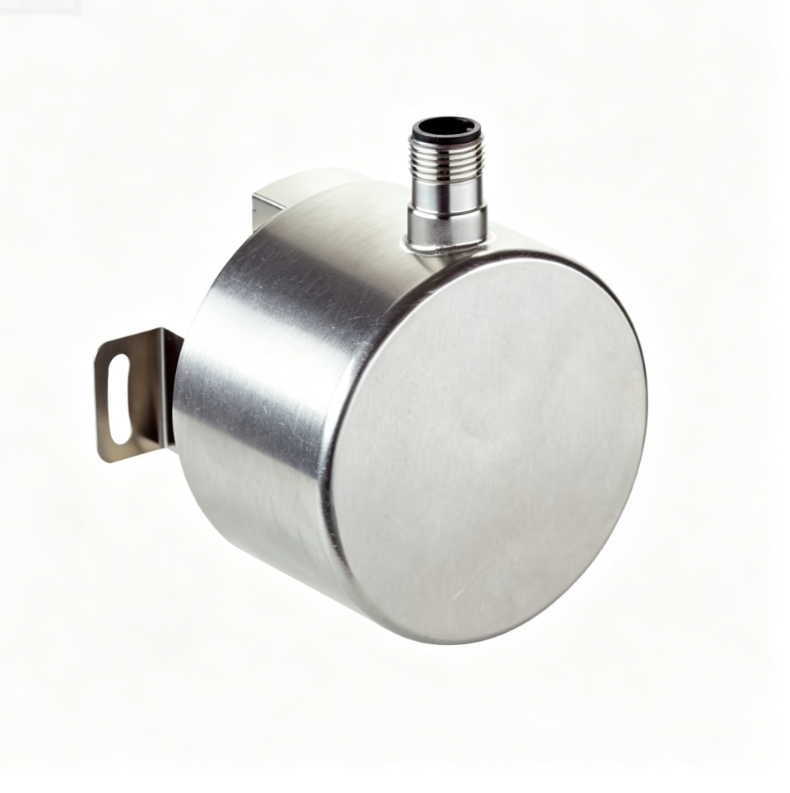

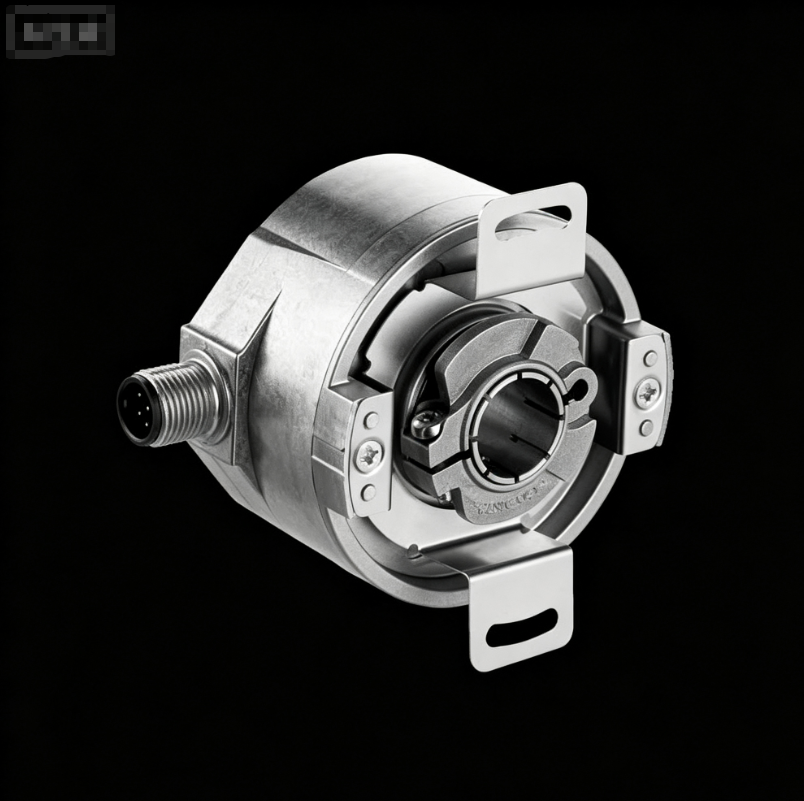

DFS60B-TEEC01024, Order No.1038016, is SICK incremental rotary encoder. Equipped with 12 mm hollow through shaft and 8-pin M12 straight connector, it reaches 1024 ppr resolution. It supports RS422 line driver output, supply voltage 4.75~30V DC, maximum speed up to 6000 rpm. Aluminum alloy housing with IP65 protection. Featuring shock resistance, stable signal transmission, it is commonly used for speed and position feedback in industrial motion control.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | DFS60B-TEEC01024 |
| Order No. | 1038016 |
| Product Type | Incremental Rotary Encoder |
| Connector Type | M12 Straight, 8 Pin |
| Pin | 8 Pin |
| Pulse Per Revolution | 1024 ppr |
| Shaft Type | Hollow through shaft |
| Shaft Diameter | 12 mm |
| Output Signal | Line driver (RS422) |
| Supply Voltage | 4.75…30 V DC |
| Max Speed | 6000 rpm |
| IP Rating | IP65 |
| Housing Material | Aluminum alloy |
| Operating Temperature | -20℃~+70℃ |
| Feature | High resolution, stable signal, shock resistant, hollow shaft design |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.24 KG |
| Net Weight | 0.20 KG |
| Place of Origin | Germany |
