GRLA-M5-QS-6-D
Product Overview

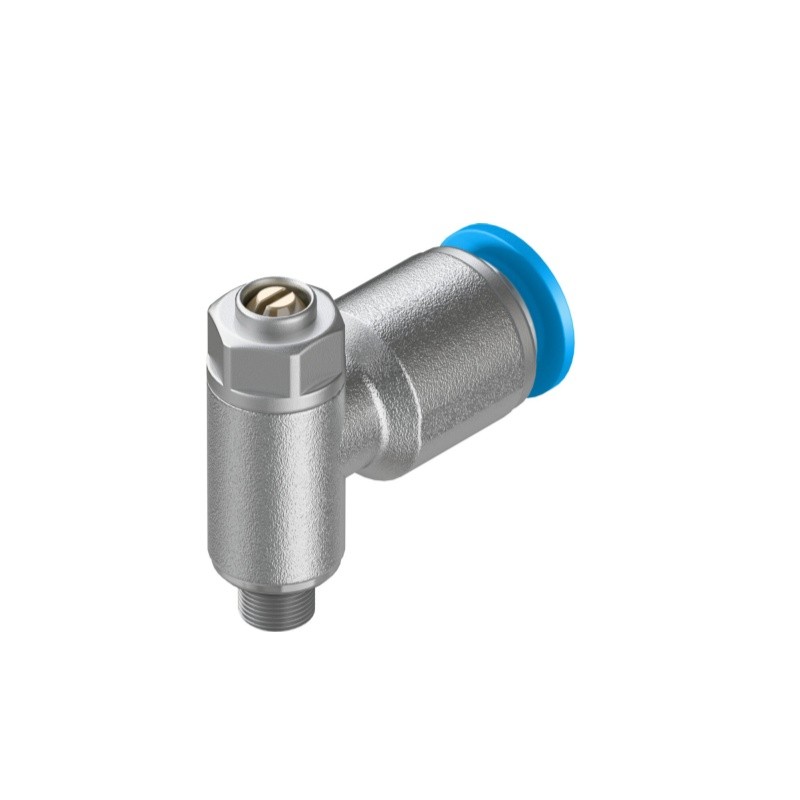

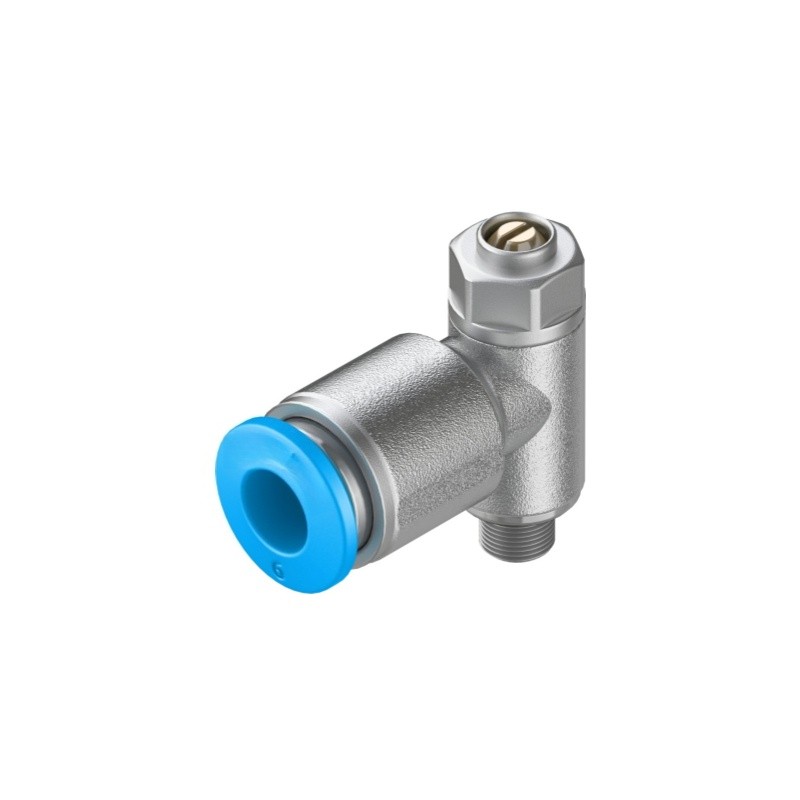

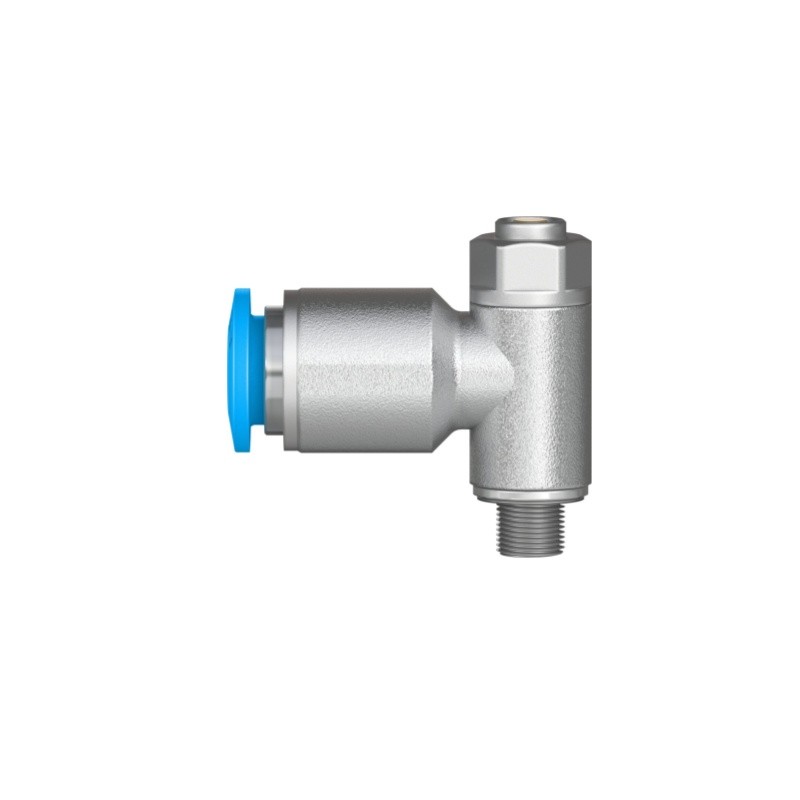

GRLA-M5-QS-6-D, Part No.193139, belongs to Festo GRLA series one-way flow control valve. It is exhaust air throttling type, with M5 male thread and QS-6 quick insert port for 6mm OD tube. Adopt slotted head screw for precise flow adjustment. It controls the exhaust air flow to adjust the moving speed of pneumatic cylinders, widely used in industrial automation pneumatic systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | GRLA-M5-QS-6-D |
| Part No. | 193139 |
| Type | One-way flow control valve, exhaust air throttling |
| Port 1 | QS-6 push-in, for 6mm tube OD |
| Port 2 | M5 male thread |
| Adjustment element | Slotted head screw |
| Standard nominal flow rate | 115 l/min (throttling direction) |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0.2 ~ 10 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Body: Nickel-plated brass, Seal: NBR, Adjust screw: High-alloy stainless steel |
| Weight | 14.00 g |
| Mounting | Screw-in type, any mounting position |
| Feature | Exhaust air flow control, adjustable air speed for pneumatic cylinder |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
