LFR-3/4-D-5M-MIDI-MPA
Product Overview

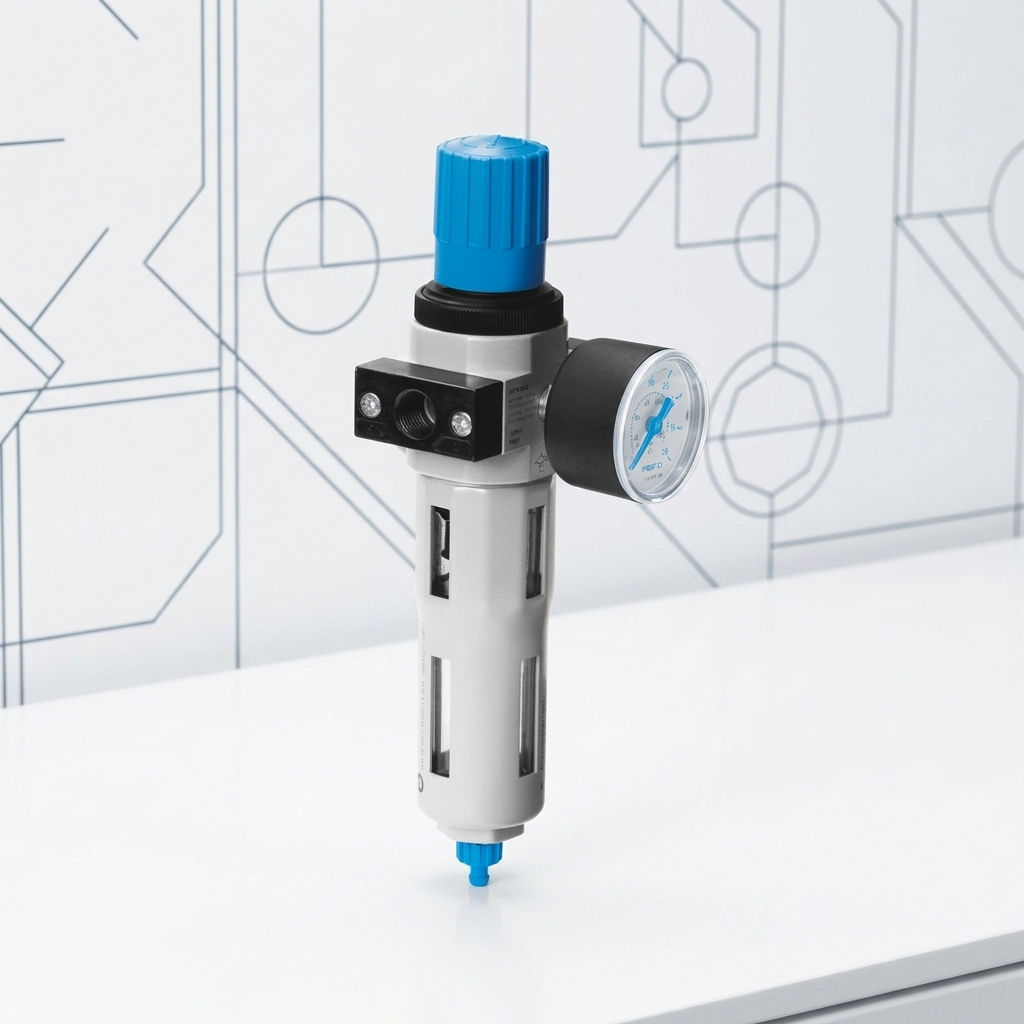

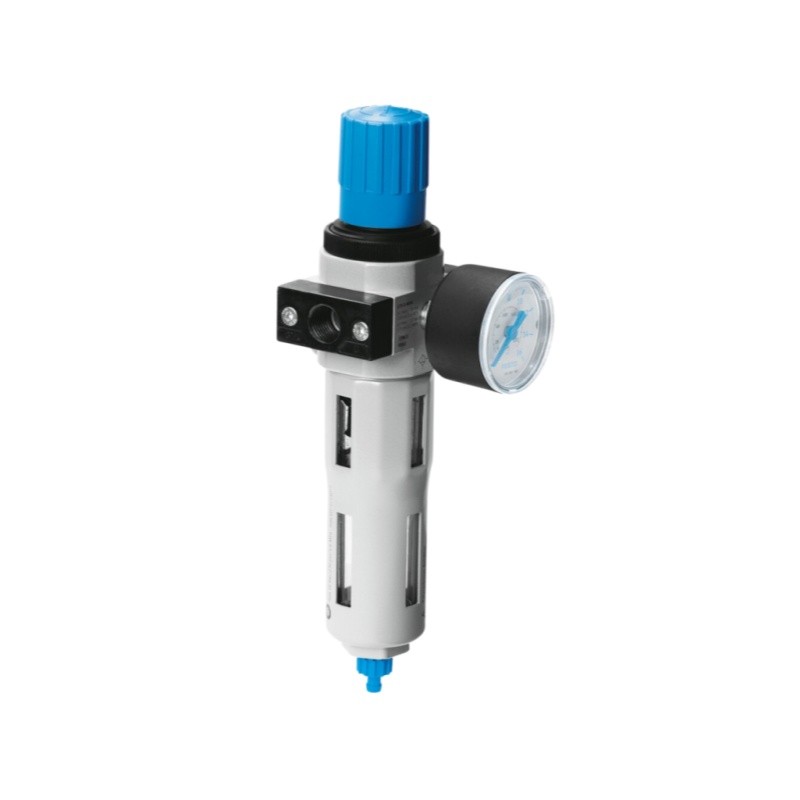

FESTO LFR-3/4-D-5M-MIDI-MPA filter regulator belongs to LFR D-series air service unit. It combines air filter and pressure regulator in one unit, G3/4 BSPP air port, 5μm filter element, manual rotary condensate drain with metal bowl guard. MPA pressure gauge interface for MPa scale pressure monitoring. Adjustable outlet pressure 0.5~12 bar, nominal flow 3400 L/min, vertical ±5° installation, widely used for compressed air purification and pressure stabilization in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | LFR-3/4-D-5M-MIDI-MPA |
| Product Series | LFR |
| Product Type | Filter Regulator / Air Service Unit |
| Size | MIDI |
| Pneumatic Port | G3/4 BSPP |
| Filtration Grade | 5 μm |
| Pressure Gauge Version | MPA (MPa scale gauge interface) |
| Condensate Drain | Manual rotary drain |
| Bowl Guard | Metal bowl guard |
| Pressure Regulation Range | 0.5 ~ 12 bar |
| Max Inlet Pressure | 16 bar |
| Nominal Flow Rate | 3400 L/min |
| Ambient Temperature | 5 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:9:-], inert gas |
| Housing Material | Metal / PA composite |
| Bowl Material | Polycarbonate with metal protective cover |
| Seal Material | NBR |
| Max Condensate Volume | 43 ml |
| Mounting | Bracket mounting, vertical ±5° installation |
| Corrosion Resistance Class | CRC 2 |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
