VL-5-PK-3
Product Overview

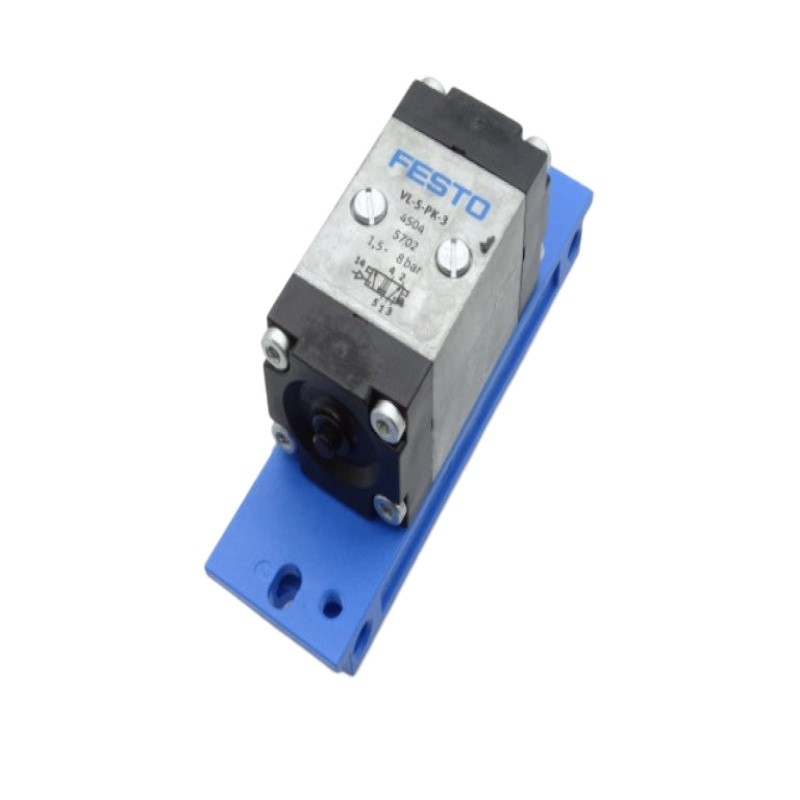

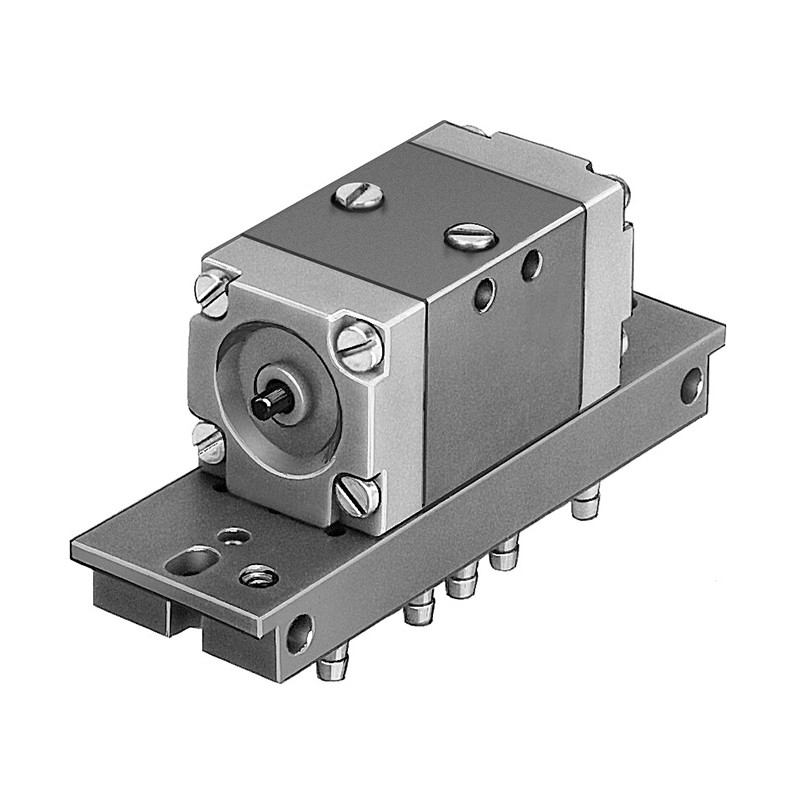

FESTO VL-5-PK-3 belongs to VL M5 compact system, 5/2-way monostable air pilot pneumatic valve. Poppet seat structure with PK-3 M5 connection ports. Nominal flow 105 L/min, operating pressure 1.5~8 bar. Die-cast zinc housing and NBR seals, LABS compliant. It can be mounted on sub-base or mounting frame, widely used for pneumatic sequence control in automation pneumatic circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VL-5-PK-3 |
| Order No. | 4504 |
| Product Series | VL (M5 Compact System) |
| Product Type | Pneumatic Control Valve / Air Pilot Valve |
| Valve Function | 5/2-way, monostable |
| Structure | Poppet seat |
| Pneumatic Port | PK-3 (M5 connection) |
| Nominal Size | 2.5 mm |
| Nominal Flow Rate | 105 L/min |
| Operating Pressure | 1.5 ~ 8 bar |
| Ambient Temperature | 0 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing Material | Die-cast zinc |
| Seal Material | NBR |
| Sub-base Material | Brass + PPS reinforced plastic |
| Weight | 130 g |
| Mounting | On sub-base / mounting frame / through-hole |
| Feature | LABS conform, VDMA24364-B1/B2-L |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
