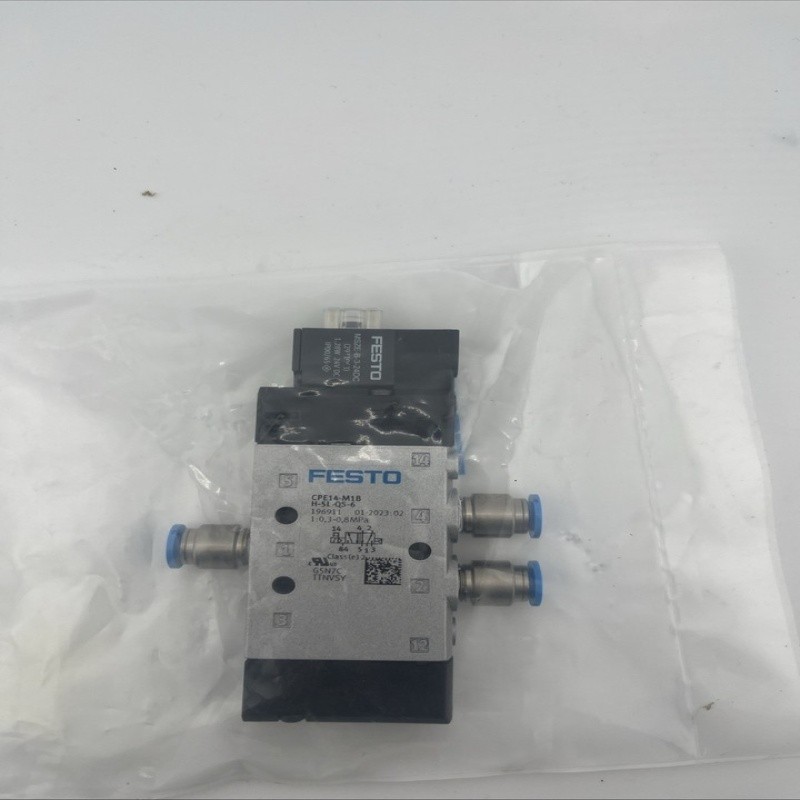

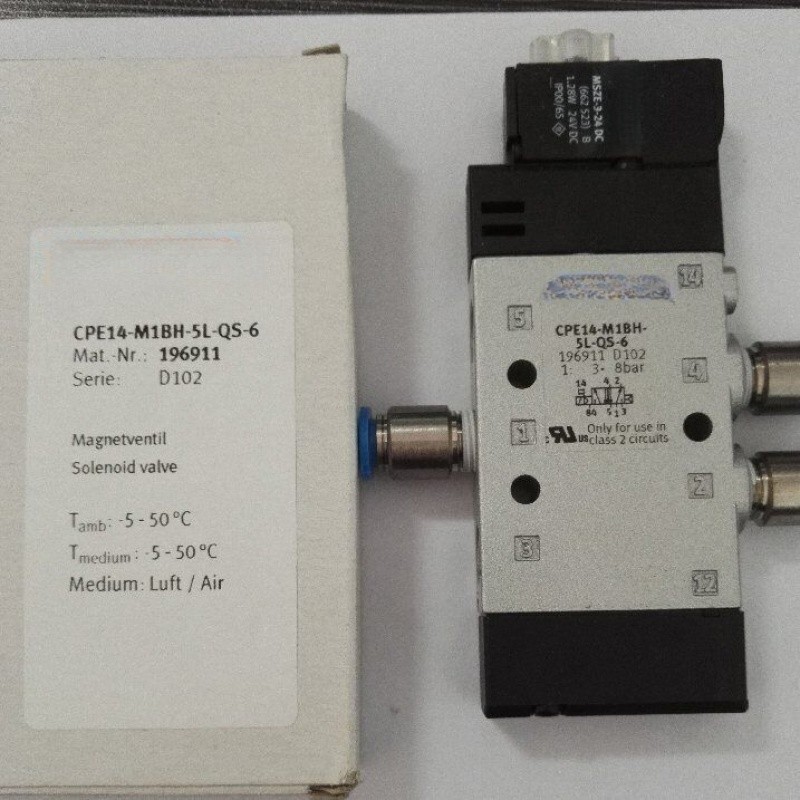

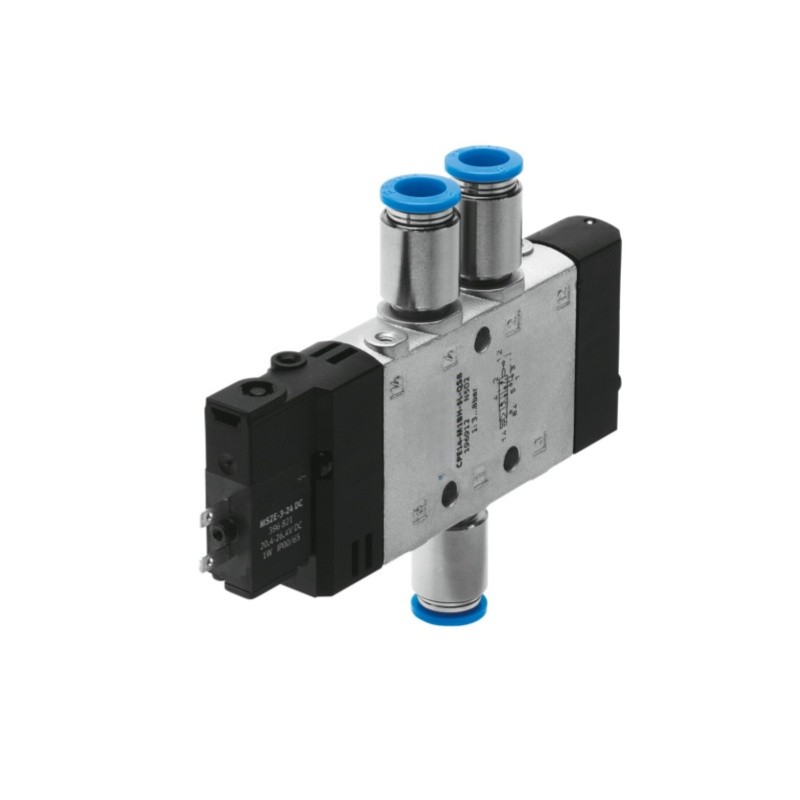

CPE14-M1BH-5L-QS-6

属性名称	属性值
Brand	FESTO
Model	CPE14-M1BH-5L-QS-6
Order No.	196911
Product Series	CPE14
Product Type	Solenoid Valve / Pneumatic Solenoid Valve
Valve Function	5/2-way, monostable
Structure	Piston gate valve, soft seal
Pneumatic Port	QS-6 push-in fitting for OD6mm tubing
Valve Width	14 mm
Nominal Size	6 mm
Nominal Flow Rate	400 L/min
Operating Voltage	DC 24V
Operating Pressure	3 ~ 8 bar
Ambient Temperature	-5 ~ +50 ℃
Medium	Compressed air ISO 8573-1:2010 [7:4:4]
Pilot Supply	Internal p

INQUIRY

Product Details

Product Tags

Product Overview

FESTO CPE14-M1BH-5L-QS-6 belongs to CPE14 compact solenoid valve series. It is a 5/2-way monostable pilot-operated piston gate valve with soft sealing. 14mm construction width, QS-6 quick push-in port for OD6mm pneumatic tube, DC24V power supply, nominal flow 400 L/min. Internal pilot air supply, IP65 protection with socket, optional any mounting orientation. Suitable for direct control of double-acting cylinders in pneumatic automation systems.

属性名称	属性值
Brand	FESTO
Model	CPE14-M1BH-5L-QS-6
Order No.	196911
Product Series	CPE14
Product Type	Solenoid Valve / Pneumatic Solenoid Valve
Valve Function	5/2-way, monostable
Structure	Piston gate valve, soft seal
Pneumatic Port	QS-6 push-in fitting for OD6mm tubing
Valve Width	14 mm
Nominal Size	6 mm
Nominal Flow Rate	400 L/min
Operating Voltage	DC 24V
Operating Pressure	3 ~ 8 bar
Ambient Temperature	-5 ~ +50 ℃
Medium	Compressed air ISO 8573-1:2010 [7:4:4]
Pilot Supply	Internal pilot air
Protection Class	IP65 (with socket)
Manual Override	Non-detenting, detent type via accessory
Mounting	Any mounting position
Corrosion Resistance Class	CRC1
Certification	cULus, RoHS
Origin	Germany
Condition	New Original
