PUN-H-8X1,25-SI 558280
Product Overview

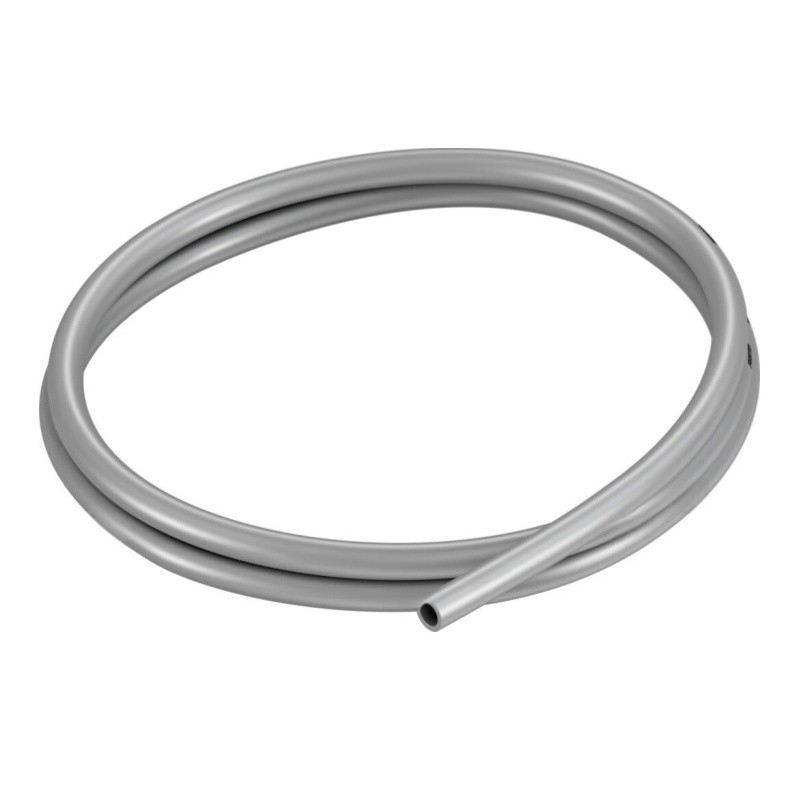

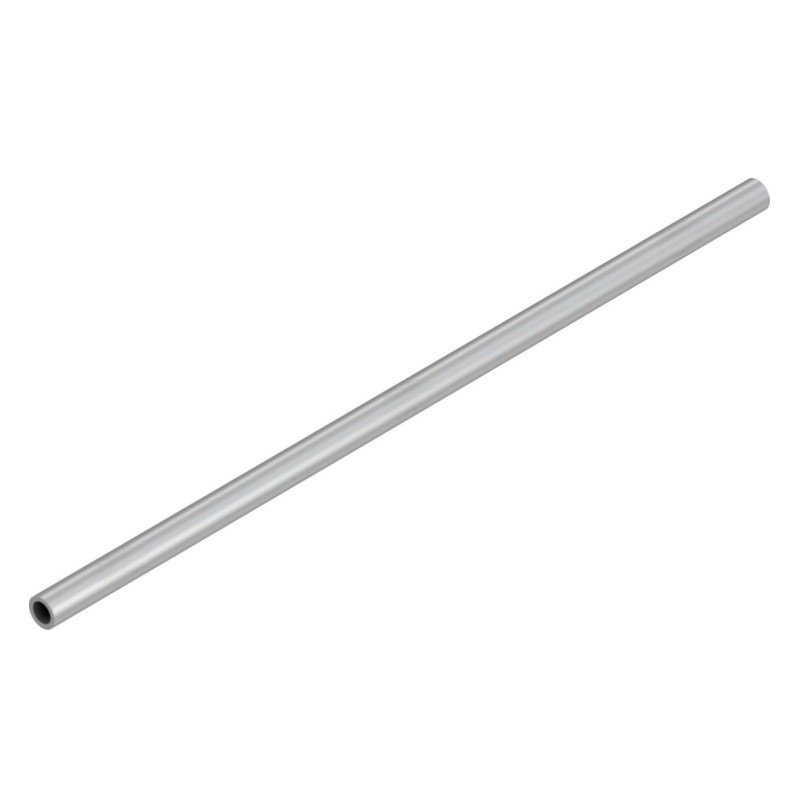

PUN-H-8X1,25-SI (Part No.558280) is Festo PUN-H series polyurethane pneumatic plastic tubing. Size OD 8mm, wall thickness 1.25mm, inner diameter 5.7mm, silver color. Made of ether-based TPE-U material, hydrolysis resistant and suitable for energy chain applications. Working pressure -0.95~6 bar for full temperature range, ambient temperature -35~60℃. Flexible, TÜV and UL94 HB certified, RoHS compliant. Widely used for compressed air and water transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-H-8X1,25-SI |
| MPN | 558280 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PUN-H Series |
| Material | TPE-U Ether-based Polyurethane |
| Size | OD 8mm, Wall thickness 1.25mm, ID 5.7mm |
| Color | Silver (SI) |
| Min Bending Radius | 21 mm |
| Flow-relevant Bending Radius | 37 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), ice-free water |
| Working Pressure (full temp range) | -0.95 ~ 6 bar |
| Temperature-dependent Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -35 ~ 60 ℃ |
| Feature | Hydrolysis resistant, suitable for energy chain, UL94 HB, TÜV certified |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
