PUN-H-6x1-BL 197384
Product Overview

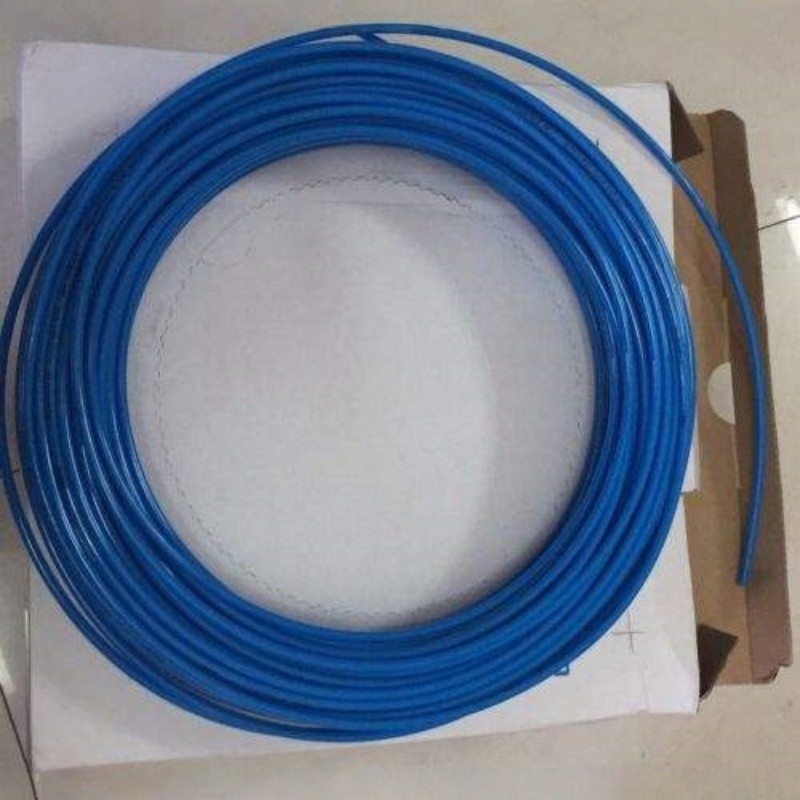

PUN-H-6x1-BL (Part No.197384) is Festo PUN-H series polyurethane pneumatic plastic tubing. Size OD 6mm, wall thickness 1mm, inner diameter 4mm, blue color. Made of ether-based TPE-U material, hydrolysis resistant and suitable for energy chain applications. Working pressure -0.95~6 bar for full temperature range, ambient temperature -35~60℃. Flexible, TÜV and UL94 HB certified, RoHS compliant. Widely used for compressed air and water transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-H-6x1-BL |
| MPN | 197384 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PUN-H Series |
| Material | TPE-U Ether-based Polyurethane |
| Size | OD 6mm, Wall thickness 1mm, ID 4mm |
| Color | Blue (BL) |
| Min Bending Radius | 15 mm |
| Flow-relevant Bending Radius | 26 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), ice-free water |
| Working Pressure (full temp range) | -0.95 ~ 6 bar |
| Temperature-dependent Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -35 ~ 60 ℃ |
| Feature | Hydrolysis resistant, suitable for energy chain, UL94 HB, TÜV certified |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
