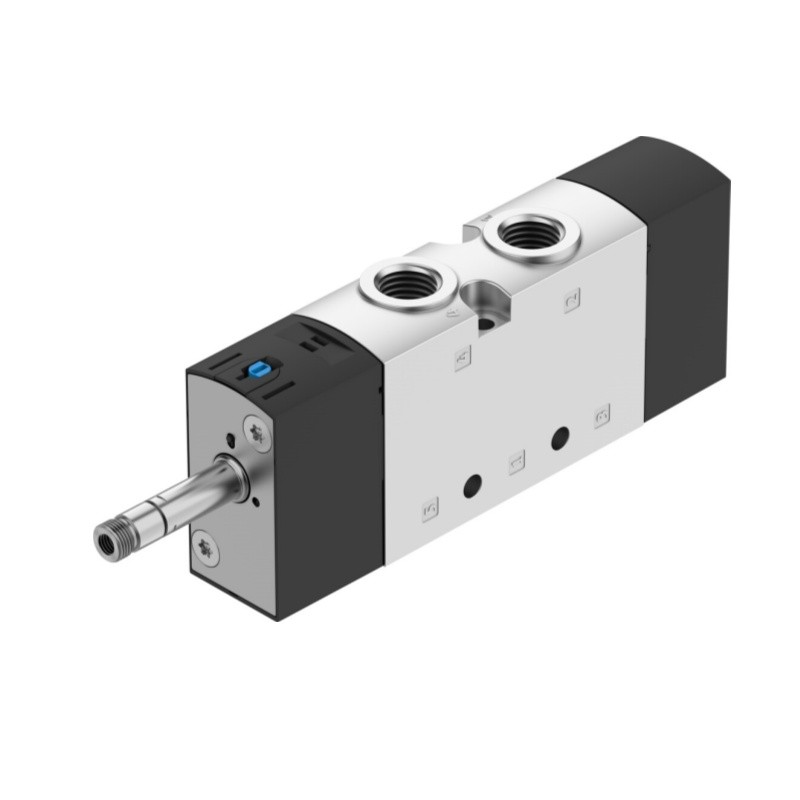

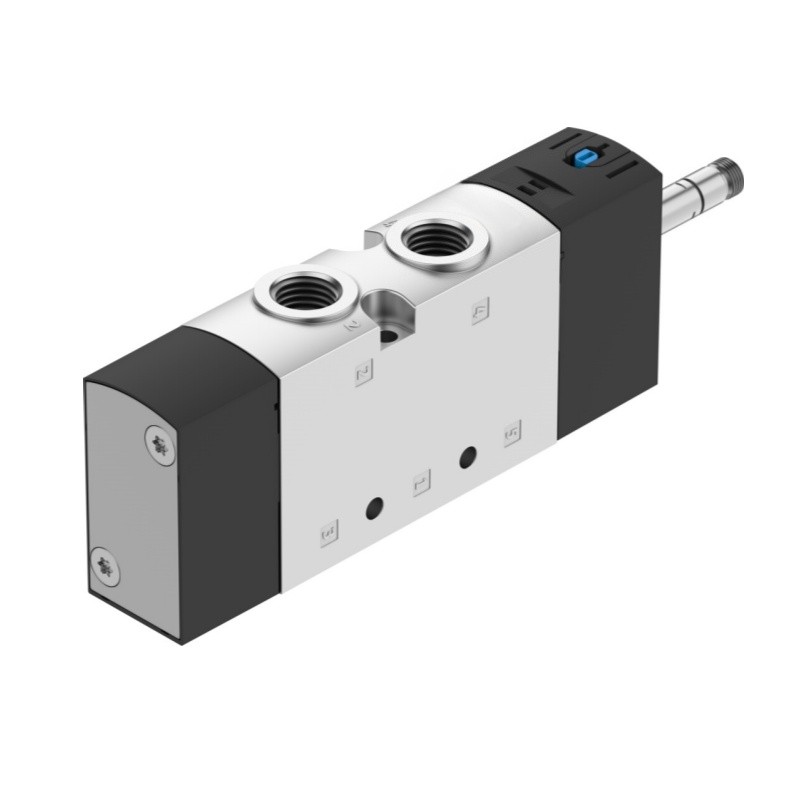

VUVS-L25-M52-MD-G14-F8
Product Overview
FESTO VUVS-L25-M52-MD-G14-F8 belongs to VUVS universal solenoid valve series, 5/2-way monostable piston slide valve with soft sealing, mechanical spring reset, internal pilot air supply. G1/4 pneumatic port, nominal flow rate up to 1300 l/min, fast switching response. Equipped with detenting push manual override for commissioning test, exhaust port supports throttling adjustment for cylinder speed control. F8 manifold interface for modular valve bank assembly, IP65 protection after connector installation. Robust die-cast aluminium valve body, stable long service life, widely applied for pneumatic cylinder directional control in packaging, material handling and automated assembly lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VUVS-L25-M52-MD-G14-F8 |
| Order No. | 575511（阀体本体） |
| Product Series | VUVS-L25 |
| Product Type | 5/2-Way Monostable Piston Slide Solenoid Valve |
| Valve Function | 5/2-way, monostable, mechanical spring reset |
| Structure | Piston slide valve, soft seal |
| Actuation | Pilot operated, internal pilot air supply |
| Pneumatic Port | G1/4 |
| Nominal Size | 6.9 mm |
| Nominal Flow Rate | 1300 l/min (DIN1343) |
| Operating Pressure | 2.5 ~ 10 bar |
| Switch-on Time | 12 ms |
| Switch-off Time | 47 ms |
| Manual Override | Detenting push type |
| Exhaust Function | Throttleable exhaust |
| Valve Width | 26.5 mm |
| Duty Cycle | 100% continuous operation |
| Protection Class | IP65 (with plug assembled) |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR soft seal |
| Feature | VUVS universal valve, internal pilot supply, F8 manifold mounting interface, suitable for valve terminal / manifold assembly |
| Mounting | F8 manifold base mounting, any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Certificate | CE, cULus Recognized, RoHS |
| Origin | Germany |
| Condition | New Original |
