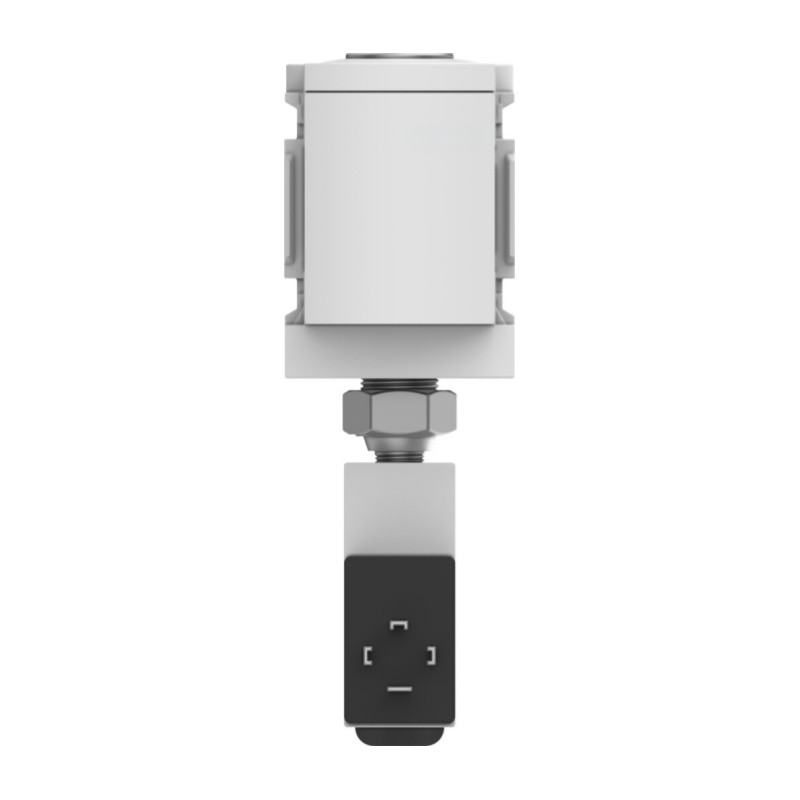

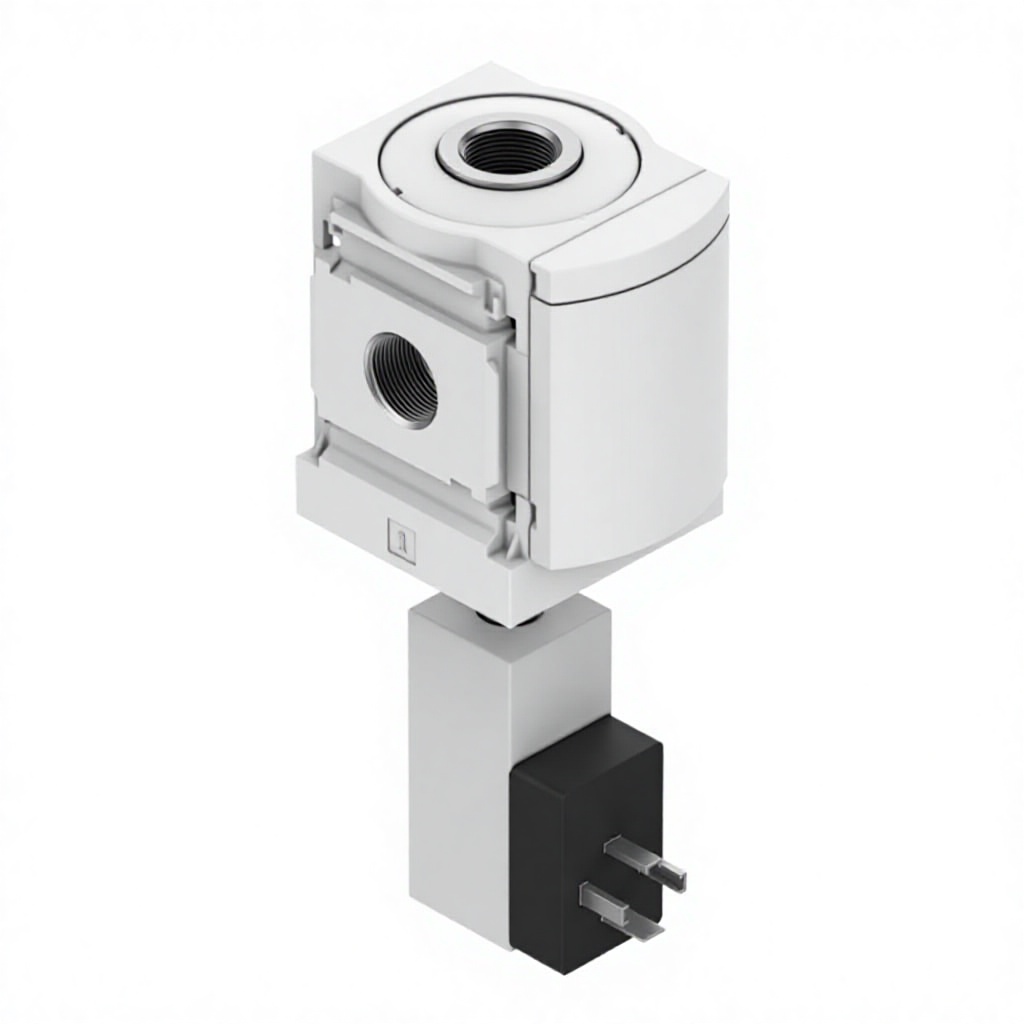

MS6-FRM-1/2-Y
Product Overview
MS6-FRM-1/2-Y, Part No.529852, belongs to Festo MS6 modular air preparation system. It is a Y-type pneumatic branching module, which realizes straight-through of main air channel and side branch air extraction. Main port G1/2 for medium-large flow main air circuit, auxiliary G1/4 port for small branch air supply. Modular stacking structure, can be assembled with MS6 filter, regulator, soft start valve and lubricator to form integrated air service unit. No internal moving parts, low failure rate, mainly used for air distribution of main pneumatic pipeline in automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-FRM-1/2-Y |
| Part No. | 529852 |
| Type | Branching module, MS6 air service unit |
| Main port | G1/2 |
| Auxiliary port | G1/4 |
| Nominal flow rate (1→2) | 8000 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Working pressure | 0 ~ 16 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting |
| Weight | 370.00 g |
| Feature | MS6 modular stacking design, main line through-flow with side branch tapping, Y-type branch, no moving parts, compatible with MS6 filter/regulator/lubricator, PWIS compliant |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Certificates | CE |
