MF-K0605N141P10
Product Details

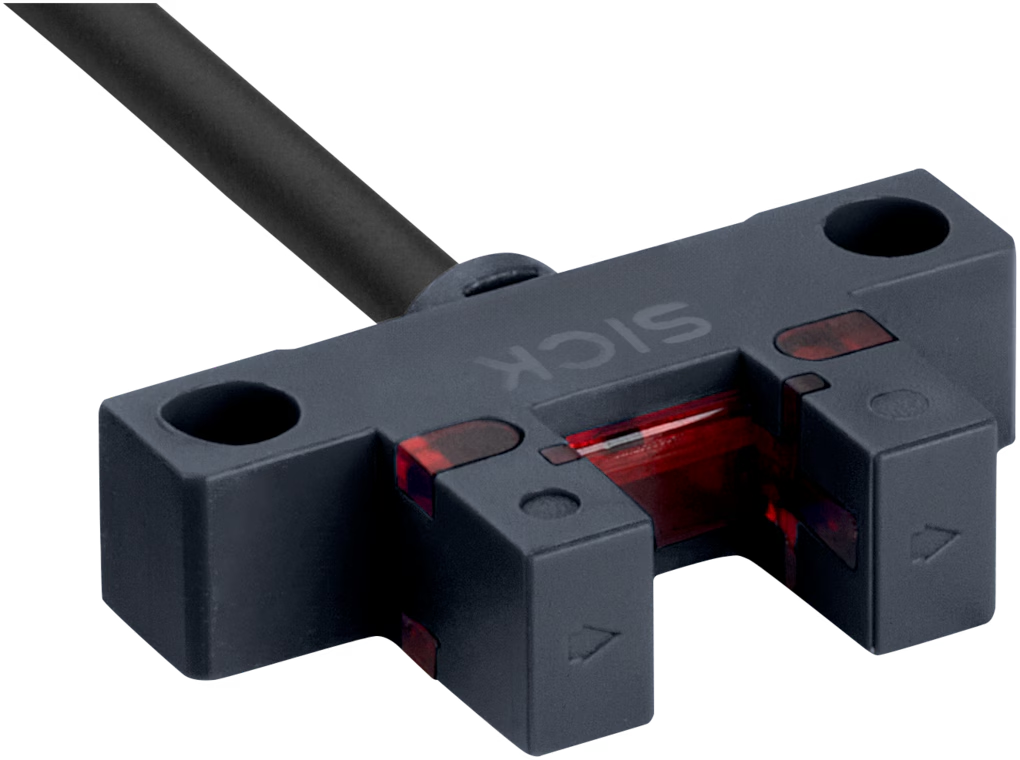

The SICK MF-K0605N141P10 is a compact micro fork photoelectric sensor from the MF series, brand new and original. This through-beam slot sensor is equipped with infrared LED light source. It features a 6 mm slot width and 5 mm fork depth, operating within a 5–30 V DC power range and supports switchable Light-ON / Dark-ON NPN output to fit different detection requirements. It has IP67 rating for reliable dust and moisture resistance.
Made of sturdy PBT plastic housing, this mini fork sensor comes with a 2-meter 4-wire PVC cable for easy wiring and installation in narrow spaces. It delivers rapid response speed for label edge identification, high-speed counting and tiny object detection.
It is widely installed on packaging machinery and automated production lines. Each unit undergoes complete quality inspection before shipment and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping to fulfill your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | MF-K0605N141P10 |
| Product Name | Fork Photoelectric Sensor |
| Product Type | Micro Fork / Slot Photoelectric Sensor |
| Series | MF Series |
| Working Principle | Through-beam fork type |
| Light Source | Infrared LED |
| Housing Material | PBT Plastic |
| Shape | Fork / Slot type |
| Fork Size | Slot width 6 mm, Fork depth 5 mm |
| Dimension(W×H×D) | 26mm × 19.2mm ×13.65mm |
| Connection | 4-wire 2m PVC cable |
| Output Type | NPN, Light-ON / Dark-ON switchable |
| Supply Voltage | 5 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.09 kg |
| Gross Weight | 0.14 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Label detection, high-speed counting, packaging machinery, tiny object detection |
| Certificate | CE |
| MOQ | 1 Piece |
