MS4-FRM-1/4

属性名	属性值
Brand	Festo
Model	MS4-FRM-1/4
Part No.	529571
Type	Branch module, MS4 series service unit
Size	MS4
Main port	G1/4
Branch port	G1/4
Nominal flow rate	1200 l/min
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	0 ~ 16 bar
Temperature range	-10 ~ 60 ℃
Material	Housing: Zinc die casting, Seal: NBR
Weight	170.00 g
Feature	For MS4 air preparation assembly, branch air supply, modular stacking
Corrosion resistance class	CRC2
RoHS	Compliant

INQUIRY

Product Details

Product Tags

Product Overview

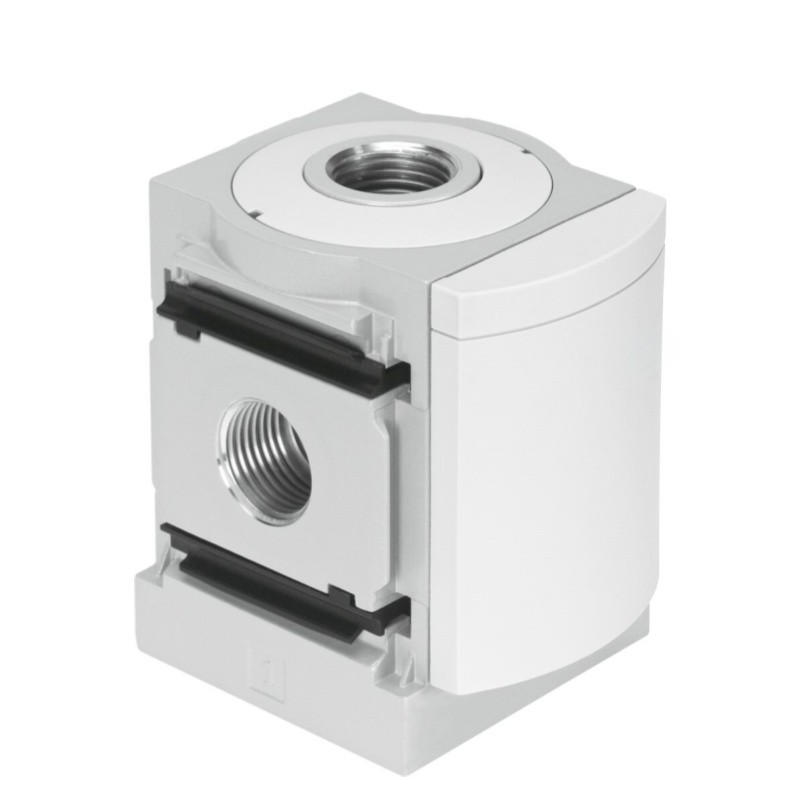

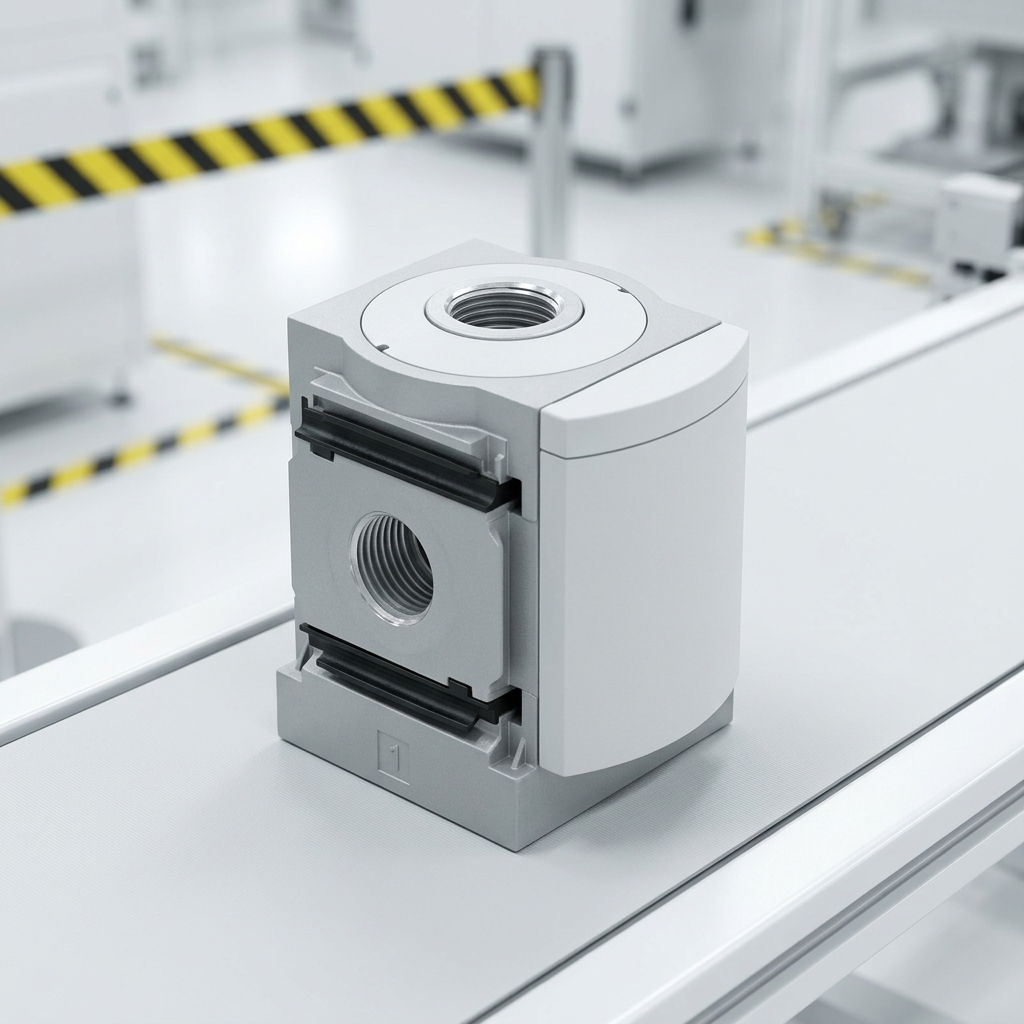

MS4-FRM-1/4, Part No.529571, belongs to Festo MS4 series air preparation modular system. This branch module can be stacked together with filter, regulator, lubricator and other MS4 units. It provides a G1/4 branch port to tap auxiliary compressed air from the main air circuit. Modular stacking design saves installation space and simplifies air pipeline layout, widely used in centralized air supply system of automation machines.

属性名	属性值
Brand	Festo
Model	MS4-FRM-1/4
Part No.	529571
Type	Branch module, MS4 series service unit
Size	MS4
Main port	G1/4
Branch port	G1/4
Nominal flow rate	1200 l/min
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	0 ~ 16 bar
Temperature range	-10 ~ 60 ℃
Material	Housing: Zinc die casting, Seal: NBR
Weight	170.00 g
Feature	For MS4 air preparation assembly, branch air supply, modular stacking
Corrosion resistance class	CRC2
RoHS	Compliant
